Back to Respiratory Protection
  • 3M 7046 Organic Vapor Cartridge, Use With: 6000 Series, 7800 Series Full Facepiece Respirator - part 07046
1 1

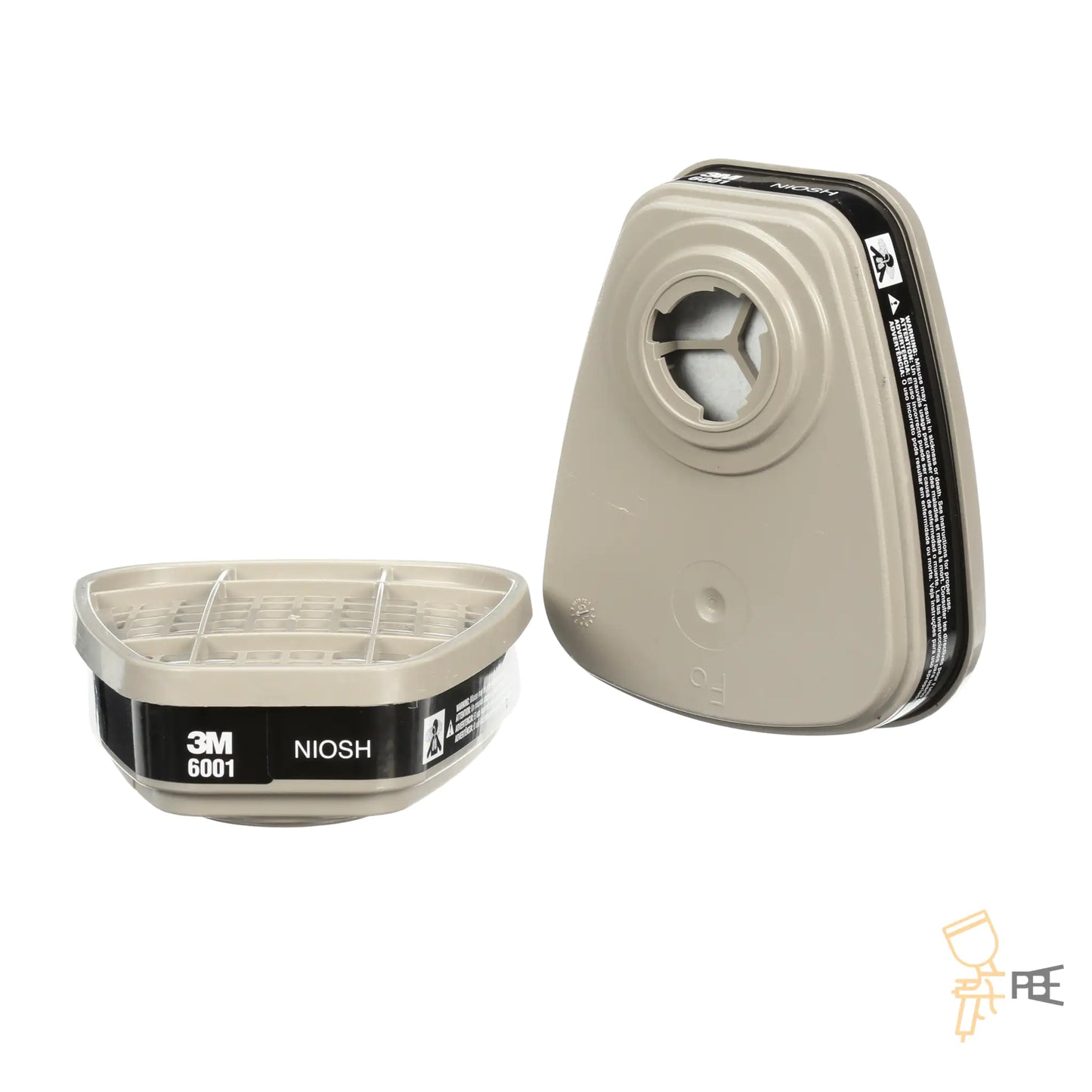

3M Organic Vapor Cartridge 07046 (6001), Bayonet

3M Organic Vapor Cartridge 07046 (6001), Bayonet

07046

3M's bayonet organic vapor cartridge, NIOSH approved as the 3M 6001 against certain organic vapors. It twists onto 3M reusable half and full facepieces. Add a particulate filter for spray mist.

NIOSH approval
6001
Bayonet install
1/4 turn
Shelf life, unopened
5 years
Packages per case
30
Fits

3M facepieces

Facepiece Type Notes
3M 6000 series Half and full Bayonet
3M 7000 / 7500 series Half Bayonet
3M FF-400 Full Bayonet
What it does

Know its limits

  • Organic vapors. NIOSH approved against certain organic vapors.
  • Not particulates. 3M says gas and vapor cartridges don't filter paint mist. Add a 5N11 or 5P71 filter with a 501 retainer.
  • No oxygen. Don't use below 19.5% oxygen or in IDLH or unknown concentrations.
  • No indicator. The 6001i version has an end-of-service-life indicator; this one doesn't.
Date it when you open it. 3M says to write the date on each cartridge when you first take it out of the package, and change it on an established schedule. Don't wait for smell or taste; change sooner if you notice either.
How to use

Fitting and change-out

  1. Check the NIOSH approval label to confirm the cartridge and facepiece combination.
  2. Align the bayonet and turn the cartridge a quarter turn onto the facepiece.
  3. For spray painting, add a 5N11 or 5P71 particulate filter with a 501 retainer.
  4. Do a user seal check every time you put the respirator on.
  5. Change on your written schedule, using 3M Service Life Software, or sooner if you smell, taste or feel irritation.
Specifications

Tech specs

Catalog number 07046
NIOSH approval 3M 6001 Organic Vapor Cartridge
Protection Certain organic vapors
Connection Bayonet, quarter turn
Particulate filter Not included; add 5N11 or 5P71 with 501 retainer
Shelf life 5 years unopened
Pack 30 packages per case
Program required. 3M says respirators must be used under a written OSHA 29 CFR 1910.134 program, including medical evaluation, training and fit testing, and that misuse may result in sickness or death. Check your paint maker's SDS for the protection each product requires.
Pairs well with

Related

Quick answers

FAQ

Is 07046 the same as 6001?

Yes. 07046 is the catalog number; the NIOSH approval is as the 3M 6001.

Does it stop paint overspray mist?

No. Add a 5N11 or 5P71 particulate filter with a 501 retainer.

How long does a cartridge last?

It depends on the contaminant, concentration, breathing rate, humidity and temperature. Follow a change schedule, and change sooner if you smell or taste the contaminant.

How long does it keep on the shelf?

5 years unopened from manufacture. Check the use-by date.

Does it have a service life indicator?

No. The 3M 6001i version does.

Manufacturer documents: 3M 6000 cartridge user instructions (PDF)3M cartridge and filter guide (PDF)

$16.99
$16.99
Sale Sold out
Shipping calculated at checkout.
  • Ships in 1–2 business days from Eugene, OR
  • Free ground shipping over $425 · $9.99 under
  • Free pickup in Eugene, OR — usually ready in 24 hours
  • 30-day returns on unopened, resalable items

In stock
