3M Performance Spray Gun: Gun Only 26832, Starter Kit 26778 or Industrial Kit 26878
SKU:26832
Couldn't load pickup availability
- Ships in 1–2 business days from Eugene, OR
- Free ground shipping over $425 · $9.99 under
- 30-day returns on unopened, resalable items
In stock
Specifications
- Part number
- 26832
- Brand
- 3M
- Grit
- Size
- UPC
- 00051131268326
Use it for
- Clear Coat
- Coating Application
- Coating spraying
- Paint Application
- Painting
- Primer
- Spraying
3M's lightweight spray gun with no fluid passages to clean. A fresh atomizing head clicks onto the gun for every job and connects straight to the PPS Series 2.0 cup, so a color change is a head change. It weighs 8.4 oz with a gravity head.
- Weight, gravity head
- 8.4 oz
- Air consumption
- 13 scfm
- Max inlet, HVLP gravity
- 20 psi
- mm gravity heads
- 1.2–2.0
Three ways to buy
| Package | Part | What you get |
|---|---|---|

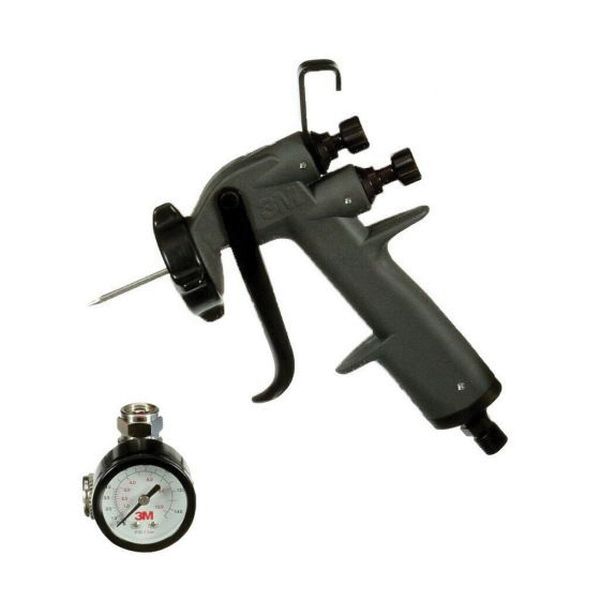

| Gun only | 26832 | Spray gun and air control valve |

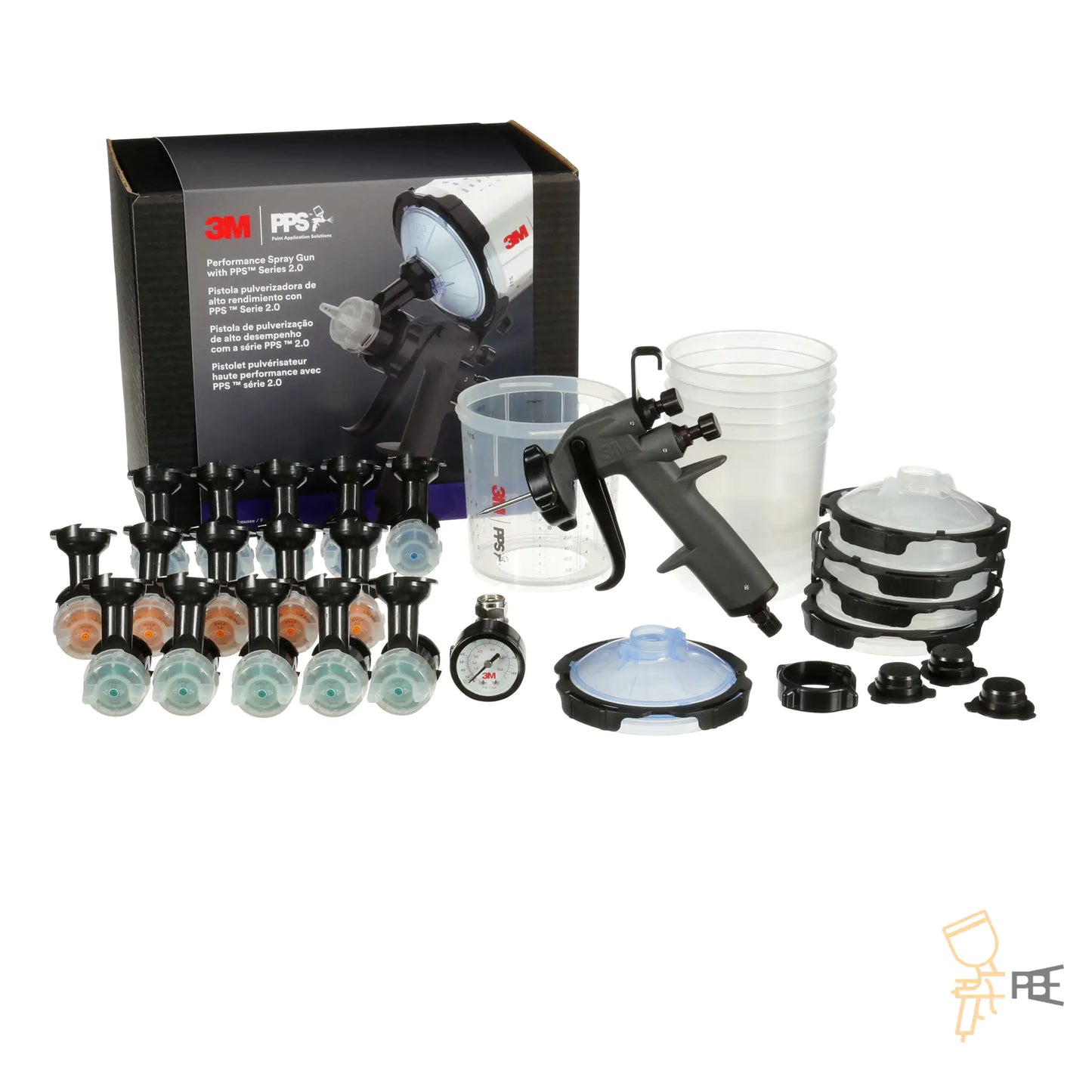

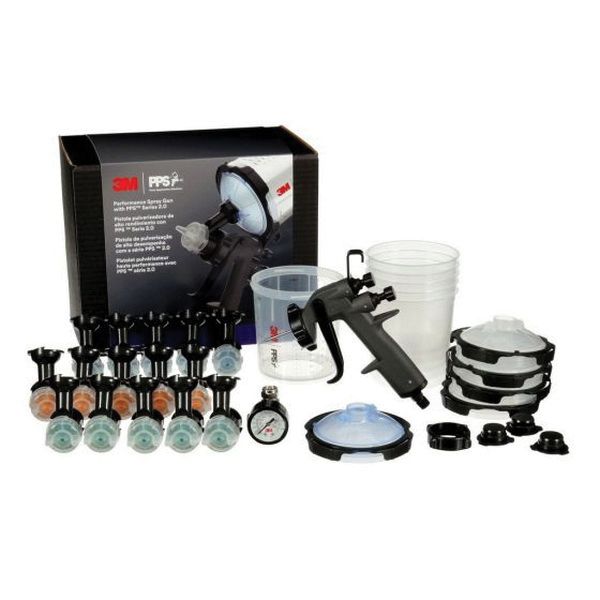

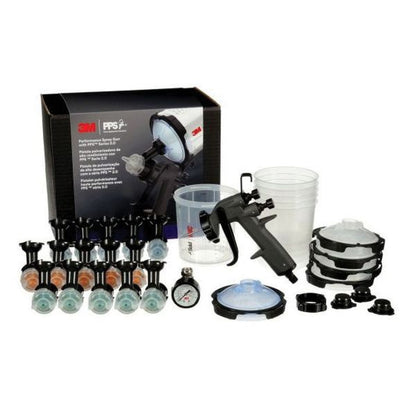

| Starter kit | 26778 | Gun with HVLP atomizing heads and the PPS 2.0 spray cup system |

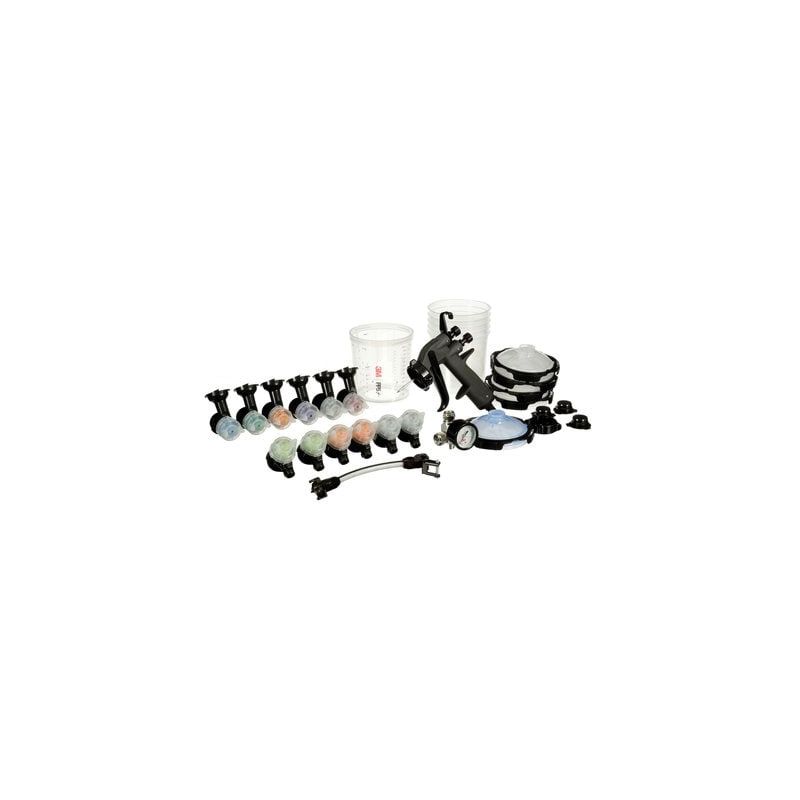

| Industrial kit | 26878 | Gun, air control valve, pressure whip, pressure and gravity atomizing heads, PPS 2.0 |
Change heads, not solvent
- Replaceable atomizing heads. Each head carries its own nozzle, so the gun body stays clean.
- Direct PPS 2.0 connection. Heads connect straight to 3M PPS Series 2.0 lids. No adapter needed.
- Light. 238 g (8.4 oz) with a gravity head. 3M says it is up to 50% lighter than conventional metal guns.
- HVLP certified. 3M certifies the series as HVLP under EPA 40 CFR 63 Subpart 6H.
Gravity HVLP heads by size
| Refill | Color | Size |
|---|---|---|
| 26712 | Blue | 1.2 mm |
| 26713 | Green | 1.3 mm |
| 26714 | Orange | 1.4 mm |
| 26716 | Purple | 1.6 mm |
| 26718 | Clear | 1.8 mm |
| 26720 | Red | 2.0 mm |
Tech specs
| Type | HVLP (EPA 40 CFR 63 Subpart 6H) |
|---|---|
| Air consumption | 370 SLPM (13 scfm) |
| Recommended inlet | 20 psi gravity, 18 psi pressure |
| Max. inlet pressure | 145 psi (10 bar) |
| Weight | 238 g (8.4 oz) gravity; 378 g (13.3 oz) pressure |
| Air inlet | 1/4 BSP/NPS |
| Cup system | 3M PPS Series 2.0 |
| Max. material temperature | 50°C (122°F) |
Related
FAQ
Does it work with my PPS cups?
It connects directly to 3M PPS Series 2.0 lids. It isn't built for the original PPS system.
What inlet pressure do I use?
20 psi with gravity heads or 18 psi with pressure heads, trigger fully pulled. That keeps the air cap at the 10 psi HVLP limit.
Which head for which job?
3M sizes run from 1.2 mm (blue) to 2.0 mm (red). Follow your paint maker's tip-size recommendation, the same way you would pick a fluid tip.
Is there a warranty?
3M warrants the gun for one year from purchase against defects in materials and manufacture. Claims go through 1-877-MMM-CARS.
Manufacturer documents: Performance Spray Gun TDS (PDF)Operating manual (PDF)
