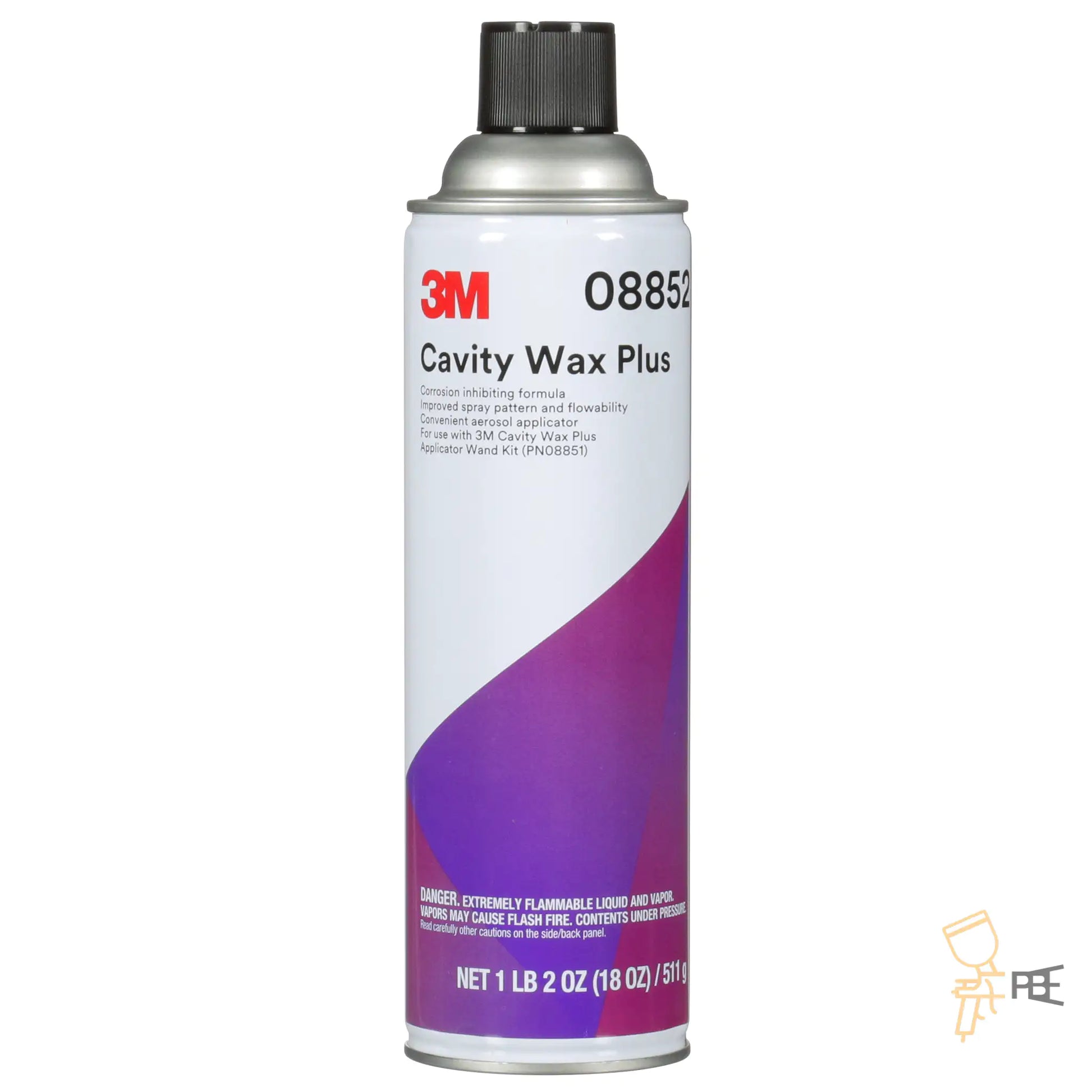

3M Cavity Wax Plus 08852, Corrosion Protection Coating, 18 oz Aerosol
3M Cavity Wax Plus 08852, Corrosion Protection Coating, 18 oz Aerosol
SKU:08852
3M's non-hardening wax for the inside of repaired panels. It seals hem flanges, internal joints and compromised e-coat, stays soft and self-heals into cracks, and won't chip, peel or crack. Use it after welding and paint work are done.
- ASTM B117 salt spray
- 1,500 h
- Per can, one coat
- 25 ft²
- Service range
- -20–180°F
- Aerosol can
- 18 oz
Protection that stays soft
- Self-healing. The wax stays pliable and reflows into cracks and crevices.
- Goes where OEM coating was lost. 3M names door skins, rocker panels, interior quarter panels and frame rails.
- Steel and aluminum. For bare or primed steel and aluminum, including new replacement parts.
- Tested near the booth. 3M reports no adverse effects on freshly painted panels.
Application
- Finish all welding and painting first. Cavity wax goes on last.
- Shake the can for 1 minute after the mixing ball comes loose.
- Spray from about 6 in (15 cm) with 50% overlap. Apply 2–3 coats; 3M recommends three.
- For enclosed sections, fit an 08851 wand: the 24 in and 34 in wands spray 360°, and the 8 in wand shoots a stream to flood joints.
- When done, turn the can upside down and spray to clear the nozzle or wand. Wipe overspray with a VOC-compliant surface cleaner.
Tech specs
| Part number | 08852 |
|---|---|
| Size | 18 oz (511 g) aerosol |
| Type | Non-hardening, self-healing wax |
| Color | Clear amber (TDS) |
| Coverage | 25 ft² per can, one coat, 50% overlap |
| Corrosion test | 1,500 h ASTM B117, no corrosion on CRS |
| Service temperature | -20°F to 180°F (-28 to 82°C) |
| VOC | 697 g/L |
| Shelf life | 24 months from manufacture |
| Hazard class | Flammable aerosol, gas under pressure |
Related
FAQ
When do I apply it?
Last. 3M says to apply it to the inside of panels after welding and paint work are complete.
Does it harden?
No. It stays soft and pliable, self-heals into cracks, and won't chip, peel or crack.
How much does one can cover?
About 25 ft² for a single coat with 50% overlap. 3M recommends three coats.
Will overspray hurt fresh paint nearby?
3M tested it next to freshly painted panels and spray booths with no adverse effects. Wipe any overspray with a VOC-compliant surface cleaner.
Manufacturer documents: Cavity Wax Plus TDS (PDF)3M 08852 page
