Astro Pneumatic AS Series Spray Gun with 1 Quart Cup | PBE Direct
Astro Pneumatic AS Series Spray Gun with 1 Quart Cup
Astro Pneumatic AS Series Spray Gun with 1 Quart Cup
SKU: AS7SP
Regular price
$91.12
Regular price
Unit price
per
Shipping calculated at checkout.
Currently, 35 items are in stock!
Notify me when Astro Pneumatic AS Series Spray Gun with 1 Quart Cup is available
Ask a Question about Astro Pneumatic AS Series Spray Gun with 1 Quart Cup
Couldn't load pickup availability
Overview
All-purpose easy-to-clean paint spray gun
Buying Advice
Choose Nozzle / Finish: 1.8 mm - Black, 1.7 mm - Silver.
- Choose the nozzle size for the coating being sprayed and verify compressor output, operating pressure, and fluid compatibility.
Available Options
| Nozzle / Finish | Manufacturer Part Number |
|---|---|

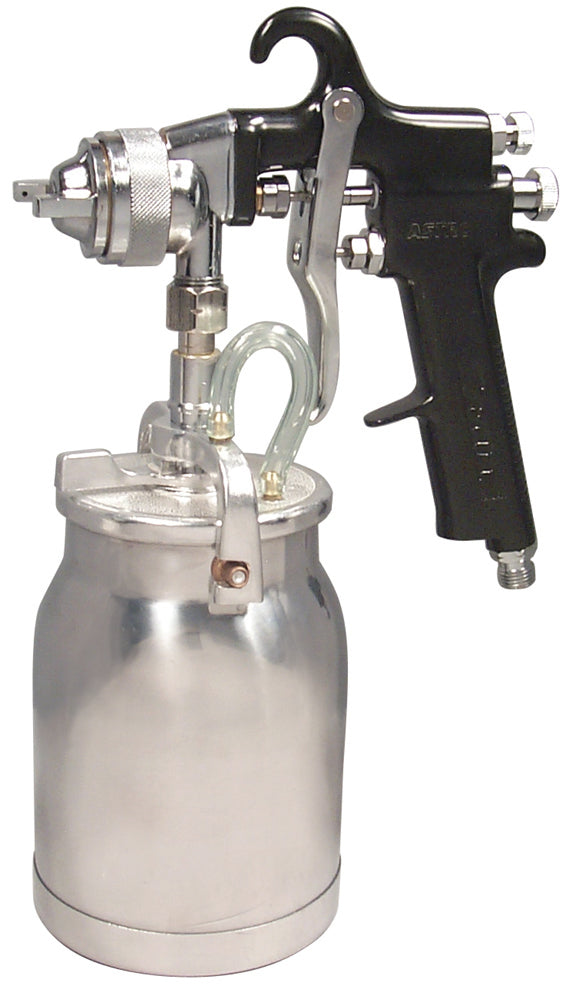

| 1.8 mm - Black | AS7SP |

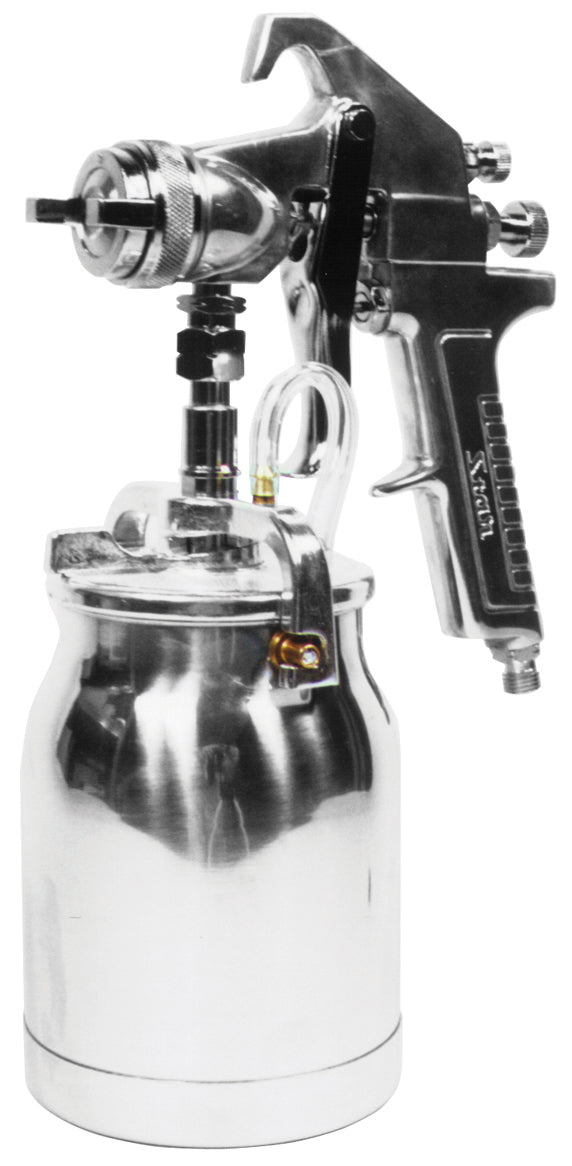

| 1.7 mm - Silver | AS8S |
Features
- All-purpose easy-to-clean paint spray gun
- Two-piece construction with gun featuring exclusive air valve design
- Fully adjustable wide fan pattern control
- 1 quart (946cc) capacity dripless cup
- CUPS1 - 1 Quart (946cc) Aluminum Cup Assembly
Specifications
| Part No. | AS-7SP |
|---|---|
| Product Line | AST |
| MFR Model | AS7SP |
| Standard/Approvals | California Pro65 Warning: Cancer and Reproductive Harm |
| Manufacturer | Astro Pneumatic Tool Company |
| UPC | 745227001200 |
| Brand | Astro Pneumatic® |
| Part Status | A |
| Nozzle Size (mm) | 1.8 |
| Manufacturer Part Number | AS7SP |
| National Oak SKU | AST.AS-7SP.EA |
| Unit of Measure | ea |
| Standard Pack | 1 |
| Manufacturer Specifications | Specifications: Nozzle Size: 1.8mm Operation Pressure: 50-65psi Net Weight: 2.31lbs. (1.05kg) Dimensions W x H: 7" x 12" Avg. Air Consumpt.: 7-12cfm Air Inlet Thread NPT: 1/4" Required Compressor: 3hp Max. Pattern at 8" Distance: 11" (280mm) Fluid Inlet Thread NPT: 3/8" Air Hose I.D. Size: 6-8mm |
Compatibility & Application
Choose the nozzle size for the coating being sprayed and verify compressor output, operating pressure, and fluid compatibility.
Frequently Asked Questions
What is the exact manufacturer part number?
The exact Astro Pneumatic manufacturer part number is AS7SP.
How is this item sold?
National Oak lists this item as EA with a standard pack of 1.
How do I confirm compatibility?
Choose the nozzle size for the coating being sprayed and verify compressor output, operating pressure, and fluid compatibility.
Manufacturer Documents
