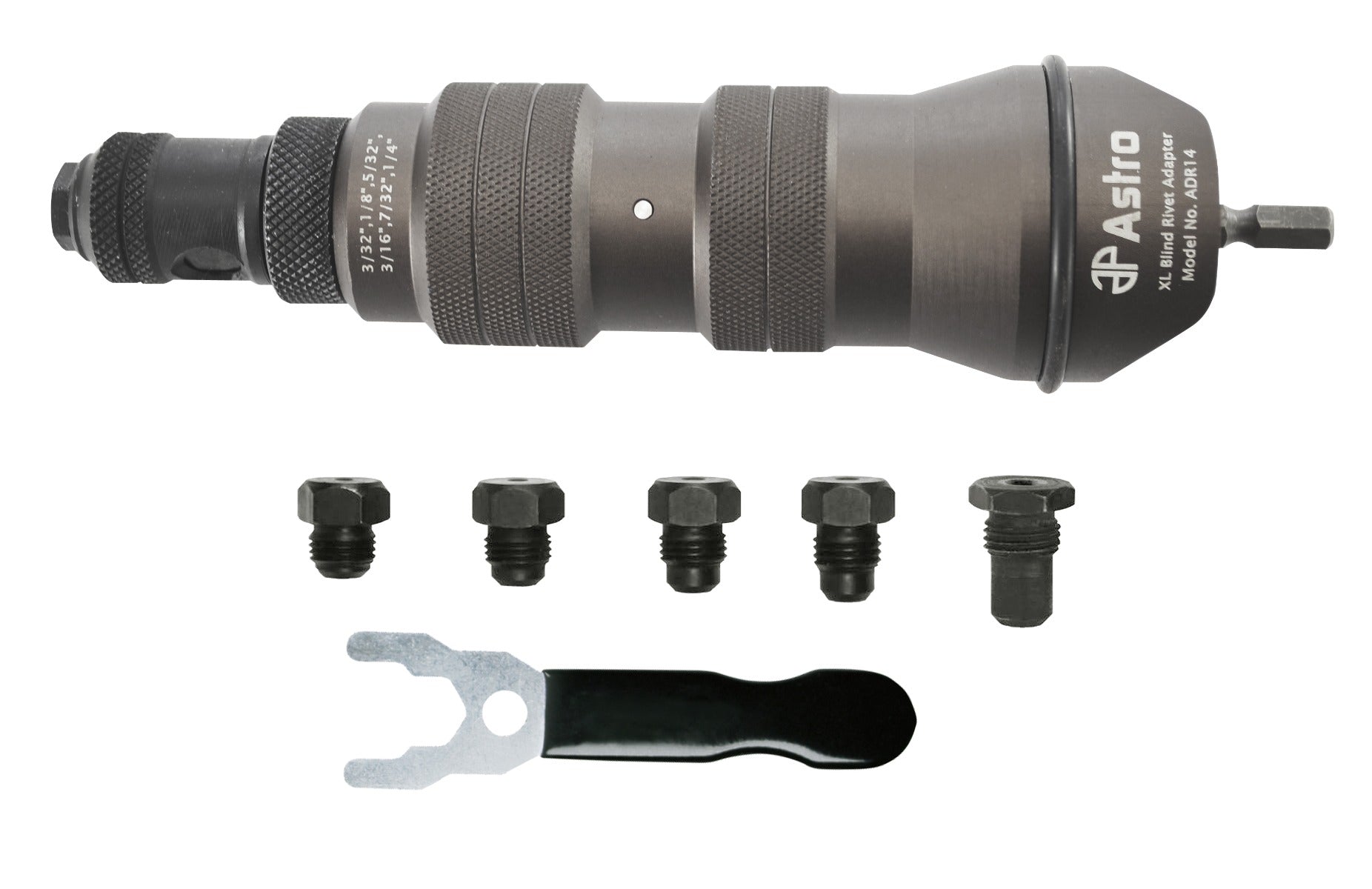

Astro Pneumatic XL Blind Rivet Adapter Kit - 1/4" Capacity | PBE

Overview

Easily convert your cordless, pneumatic or corded drill into a power pop riveter

Buying Advice

• Match the exact rivet or mandrel thread size and confirm compatibility with the listed Astro tool before ordering.
• This is a model-specific accessory or service part. Match the exact manufacturer part number and the listed parent tool before ordering.

Features

• Easily convert your cordless, pneumatic or corded drill into a power pop riveter
• Includes nose pieces for 3/32", 1/8", 5/32", 3/16", 7/32" and 1/4" for steel, aluminum, copper or up to 7/32" in stainless
• Works on up to 0.65" long rivet bodies, maximum stroke of 0.7". Use spray lube to prevent jamming on soft rivets, clean debris often, if stem is repeatedly sticking use next size up nosepiece for easier release. Do not disassemble to remove stem.
• CNC machined from solid billet aluminum and features Japanese bearings
• Requirements of cordless driving tool:
• Adjustable torque setting.
• Chuck capacity of hex 6.35 mm (1/4") shank.
• Min. 12V for aluminum and steel rivets up to 3/16".
• Min. 14.4V for stainless steel rivets up to 3/16" and thru 1/4" in aluminum.
• Min. 16V+ for 7/32" in steel and stainless and 1/4" in steel. (1/4" stainless mandrel and body is not recommended and may overheat the tool)

Specifications

Compatibility & Application

Match the exact rivet or mandrel thread size and confirm compatibility with the listed Astro tool before ordering. This is a model-specific accessory or service part. Match the exact manufacturer part number and the listed parent tool before ordering.

Frequently Asked Questions

Manufacturer Documents

• Part Breakdown (401 KB)
• Product Info (199 KB)
• Marketing Flyer (3 MB)
