A flexible professional primer, filler and sealer gun with a broad nozzle range. Choose the SATA Sealer designation or a numbered RP/HVLP nozzle for the undercoat material—not for basecoat or clearcoat finish work.

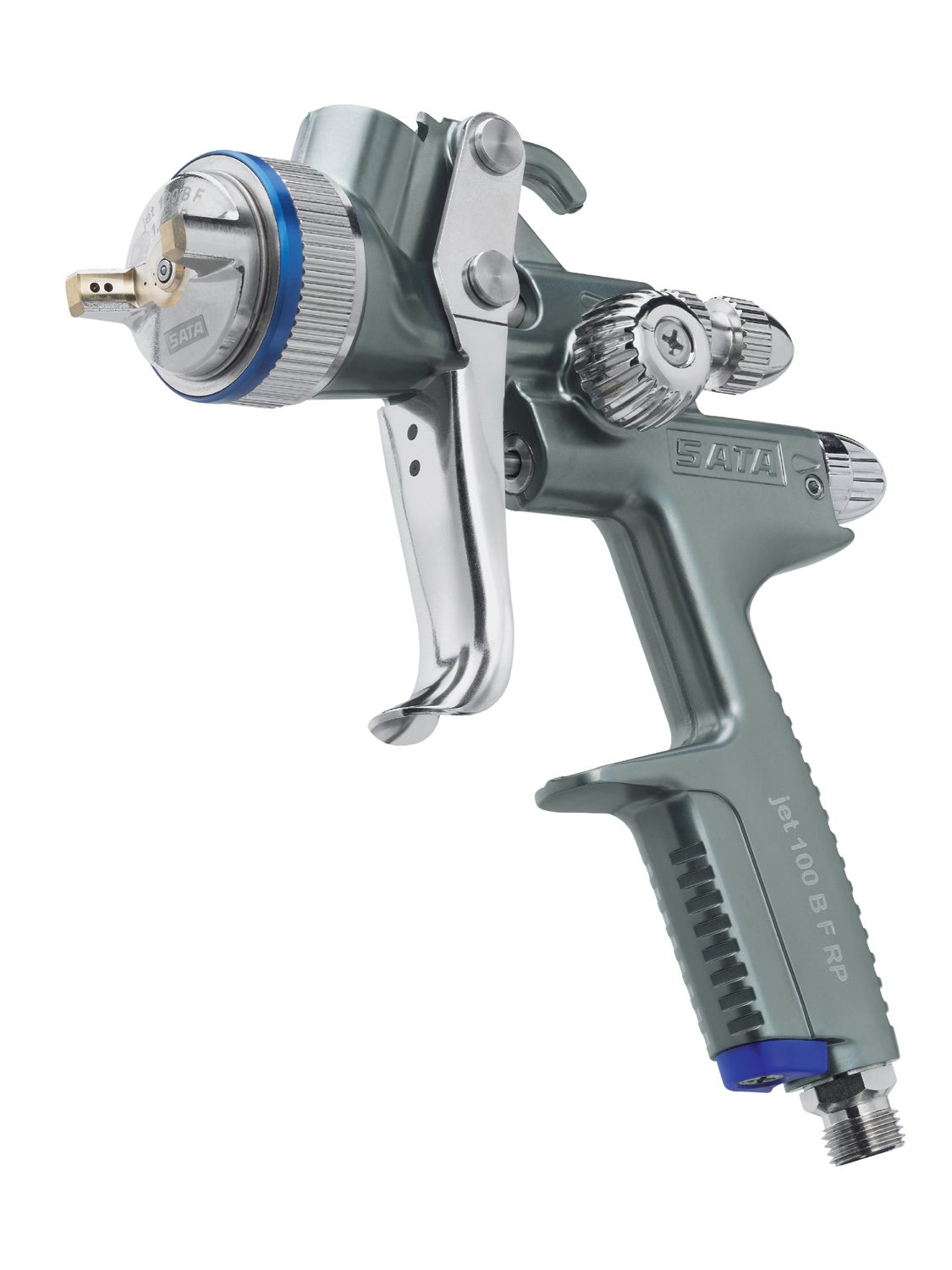

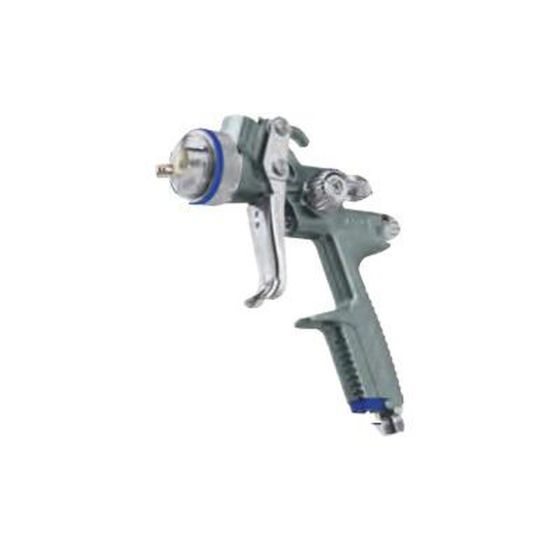

SATA SATAjet 100 B F 1100015 RP Standard Sealer Spray Gun with Cup, 0.3, 0.6, 0.9 L Capacity is SATA's flexible automotive primer, filler and sealer gun. The live family combines the RP Sealer configuration with numbered RP nozzle choices for compatible waterborne and solvent-borne undercoat materials.
Use this table to confirm the exact SATA manufacturer part number before ordering a gun, nozzle set or replacement component.
| SATA part number | UPC |
|---|---|
| 1100015 | 4027533249627 |
SATA's optimized high-pressure technology moves material quickly with VOC-compliant transfer rates and low overspray.
Low-pressure technology is designed for especially high transfer rates, putting more coating on the panel.
| Size | Good starting point for | What changes | Why choose it |
|---|---|---|---|
| Sealer | Compatible automotive primer and sealer | SATA's dedicated catalog configuration | Choose exact part 1100015 when the coating setup calls for the Sealer version |
| 1.4-1.6 | Lower- to medium-viscosity primer and filler | Controlled material delivery | Useful when the coating TDS specifies a smaller preparation-gun nozzle |
| 1.7-1.8 | Medium- to higher-viscosity primer and filler | Higher material throughput | Common preparation range when more film build is required |
| 1.9-2.1 | Higher-viscosity undercoat material | Highest throughput in the 100 B F range | Only choose when the coating manufacturer calls for it |
| Platform | Primary job | How you configure it | Choose it when... |
|---|---|---|---|
| SATAjet X | Current premium basecoat/clearcoat platform | RP or HVLP; I or O fan; four digital configurations | Painters who want SATA's newest spray and digital ecosystem |
| SATAjet X 5500 | Proven premium basecoat/clearcoat platform | RP or HVLP; I or O fan; digital or non-digital | Painters who want a broad, established premium setup |
| SATAjet 1500 B SoLV | Solvent basecoat, sealer and clearcoat | RP/HVLP and 1.3/1.4 choices | A simpler, value-oriented solvent refinishing gun |
|
This product SATAjet 100 B |
Primer, filler, UV primer and polyester spray filler | Large primer nozzles plus dedicated UV/P configurations | Preparation work—not a substitute for a finish gun |
It is a professional preparation gun for compatible automotive primer, filler and sealer materials. It is not intended to replace a basecoat or clearcoat finish gun.
Sealer is SATA's catalog designation for part 1100015, an RP Standard configuration supplied with 0.3, 0.6 and 0.9 liter RPS cups. It belongs in this family even though SATA does not express it as a millimeter size.
The live choices are . Start with the coating manufacturer's TDS, then match its material type, viscosity and recommended gun setup to the exact SATA part number.
RP favors flexible pressure adjustment, working speed and lower air demand. HVLP favors transfer efficiency. Compressor capacity, coating requirements and local rules should decide.
Use the SATAjet 100 B F for compatible undercoat materials. Choose a SATA finish-gun platform such as jet X, X 5500 or the coating-appropriate 1500 B SoLV configuration for basecoat or clearcoat.
The live RPS configurations are supplied with 0.3, 0.6 and 0.9 liter SATA RPS multi-purpose cups. Confirm the exact part number before ordering.
