DeVILBISS DV1 Digital Pressure Gauge (704427)

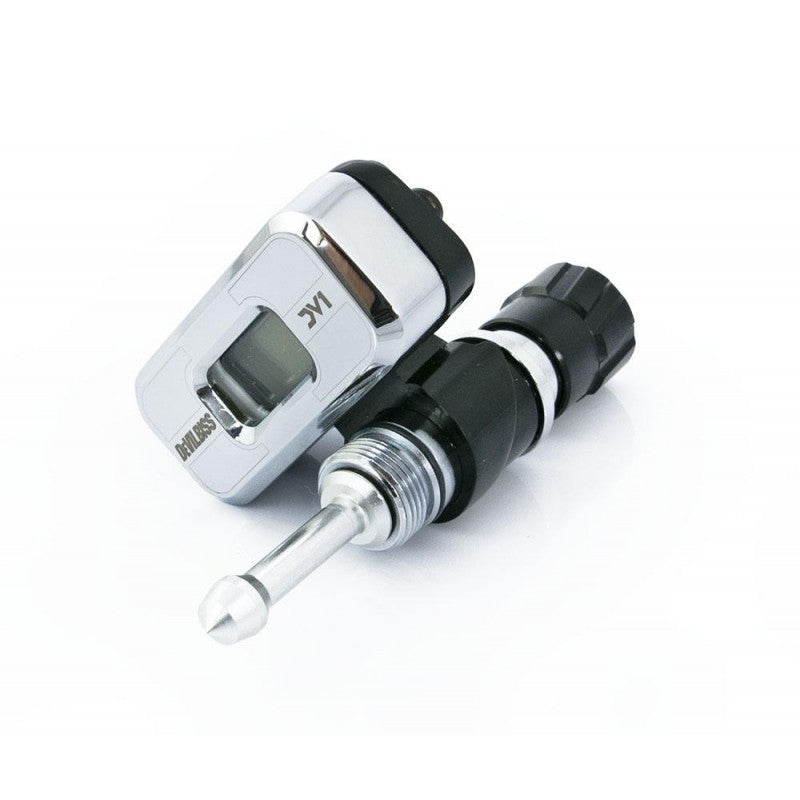

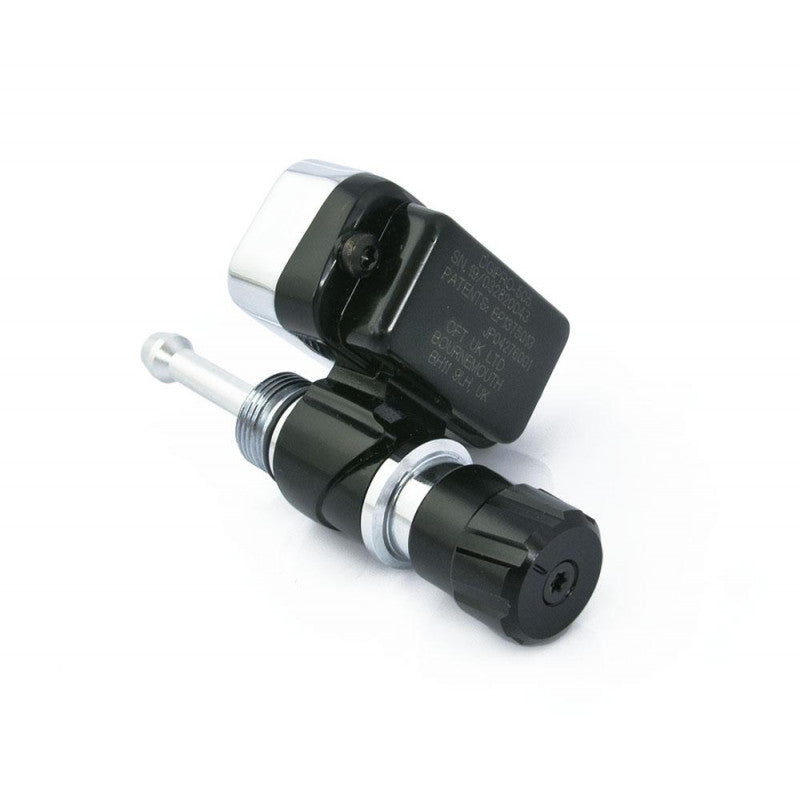

The DGi DV1 pod digital gauge is a natural development of the DGi Pro digital gauge, with the difference that it is designed to be mounted up on the top of the spray gun, where the spreader valve is situated, so it can be seen clearly by the painter, regardless of whether they are right or left handed.

Benefits:

• Perfectly Placed for Easy Reading
• Accurate readings to 0.05 bar
• Continual monitoring of spray pressures
• Retrofits all DV1 gravity guns
• Fully ATEX Approved – Gun Washer Safe

Technical data:

• Air Connections (m & f) 1/4” Universal (BSP/NPS)
• Accuracy + or – 1%
• Resolution steps 0.05 bar (0.7 psi)
• Max static inlet pressure 12 bar (175 psi)
• Housing Die cast aluminium, nickel/chrome plated.
• Readout window Toughened glass
