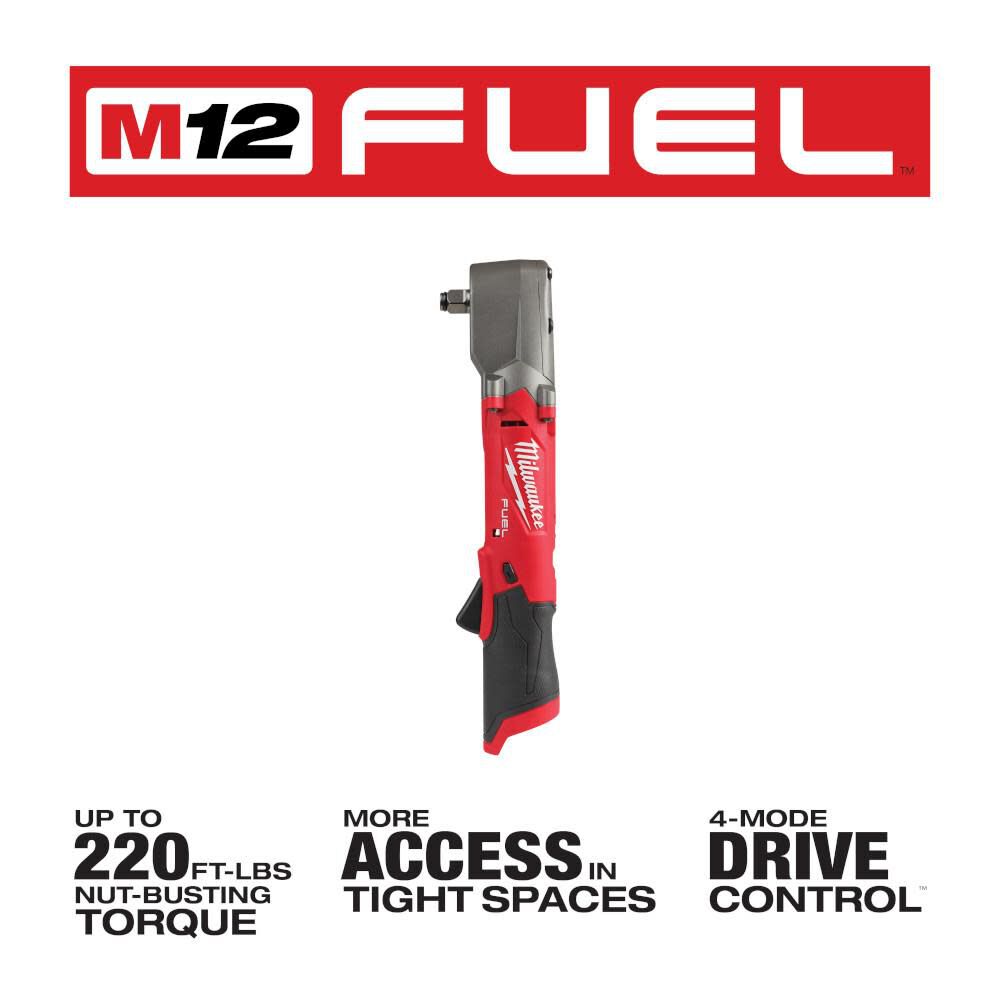

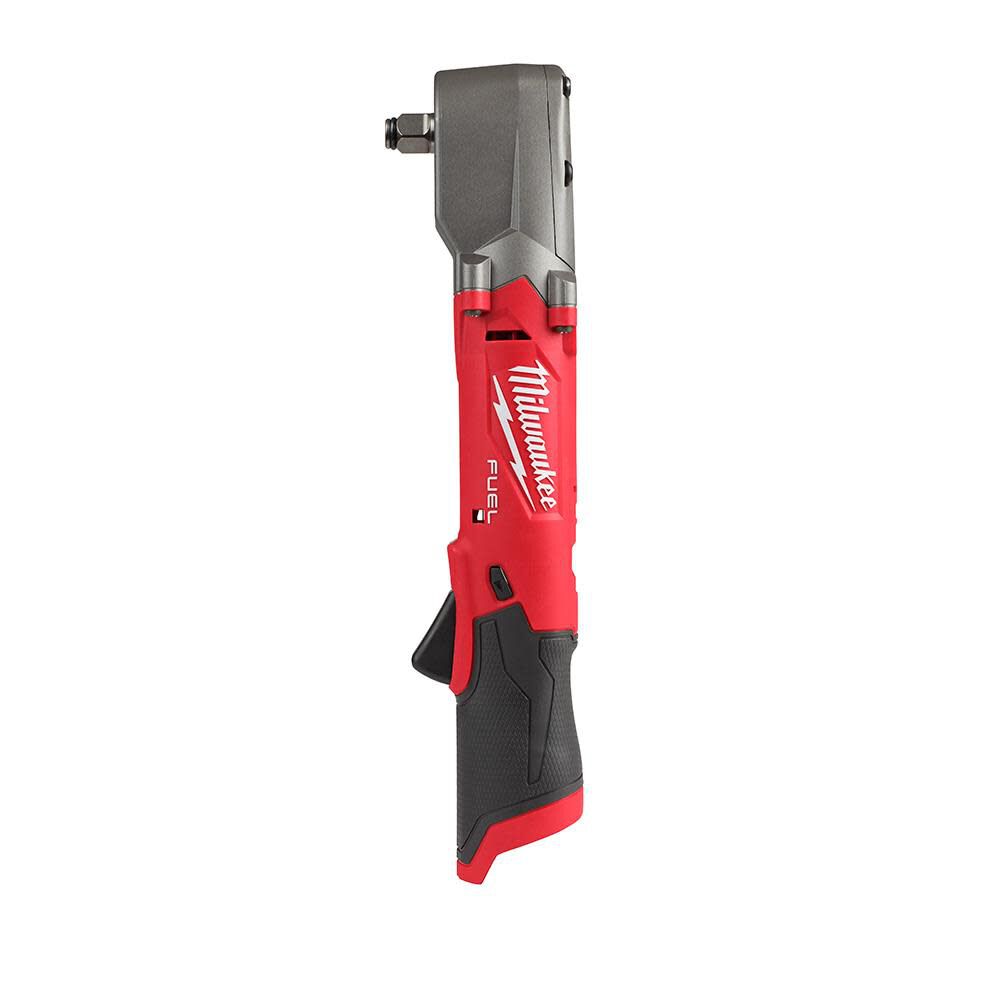

Milwaukee M12 FUEL 1/2 in Right Angle Impact Wrench 2565-20, Friction Ring, Bare Tool
Milwaukee M12 FUEL 1/2 in Right Angle Impact Wrench 2565-20, Friction Ring, Bare Tool
SKU:2565-20

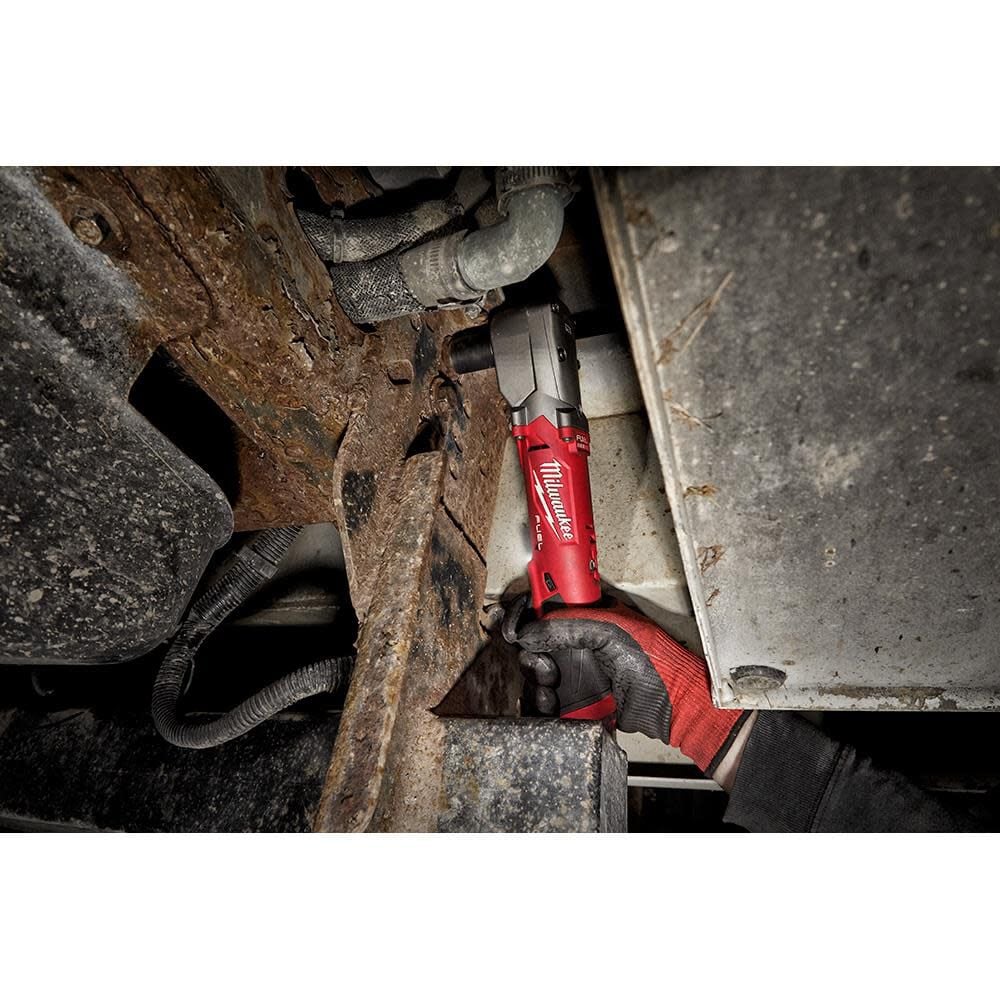

Milwaukee's most powerful cordless right angle impact wrench, with 220 ft-lbs of torque and a slim 2.2 inch head profile for tight engine bays and under-dash work. Four drive modes put the power where you want it.
- Max torque
- 220 ft-lbs
- Drive modes
- 4

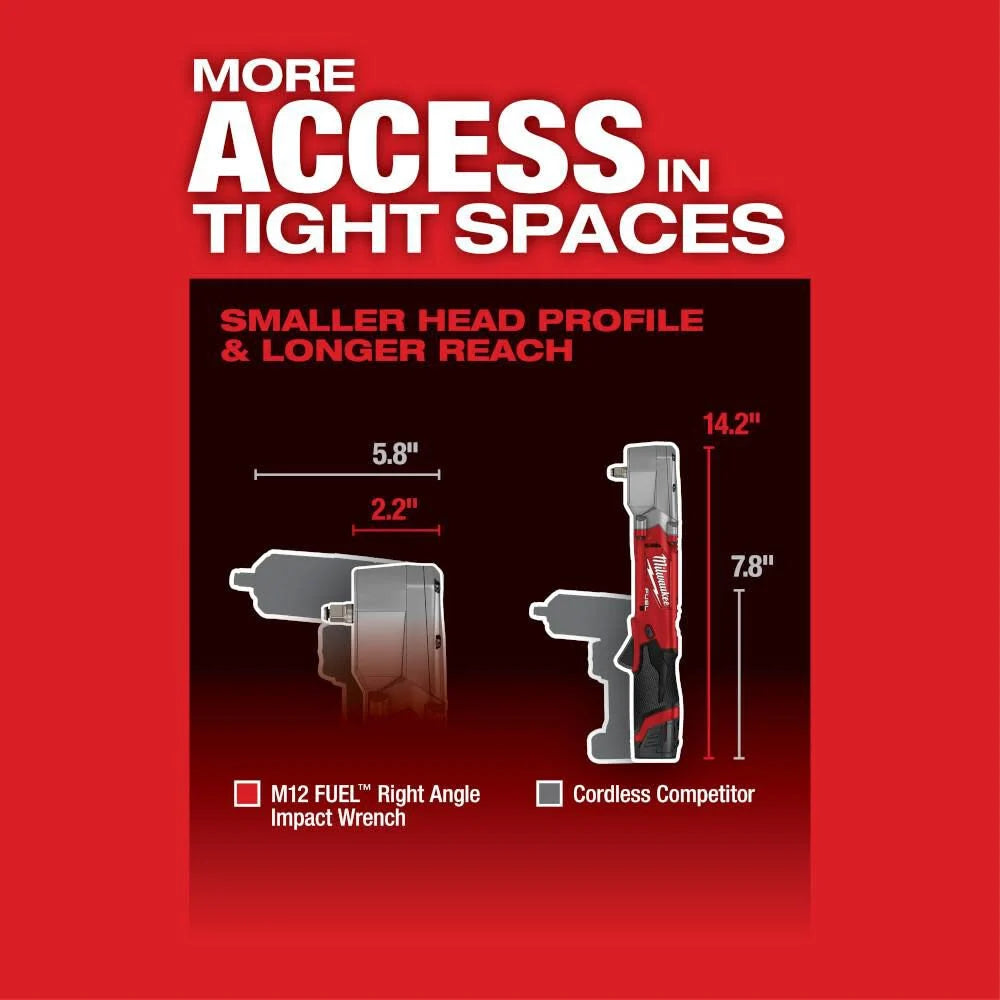

- Head profile
- 2.2 in
- IPM, top modes
- 0–3,600

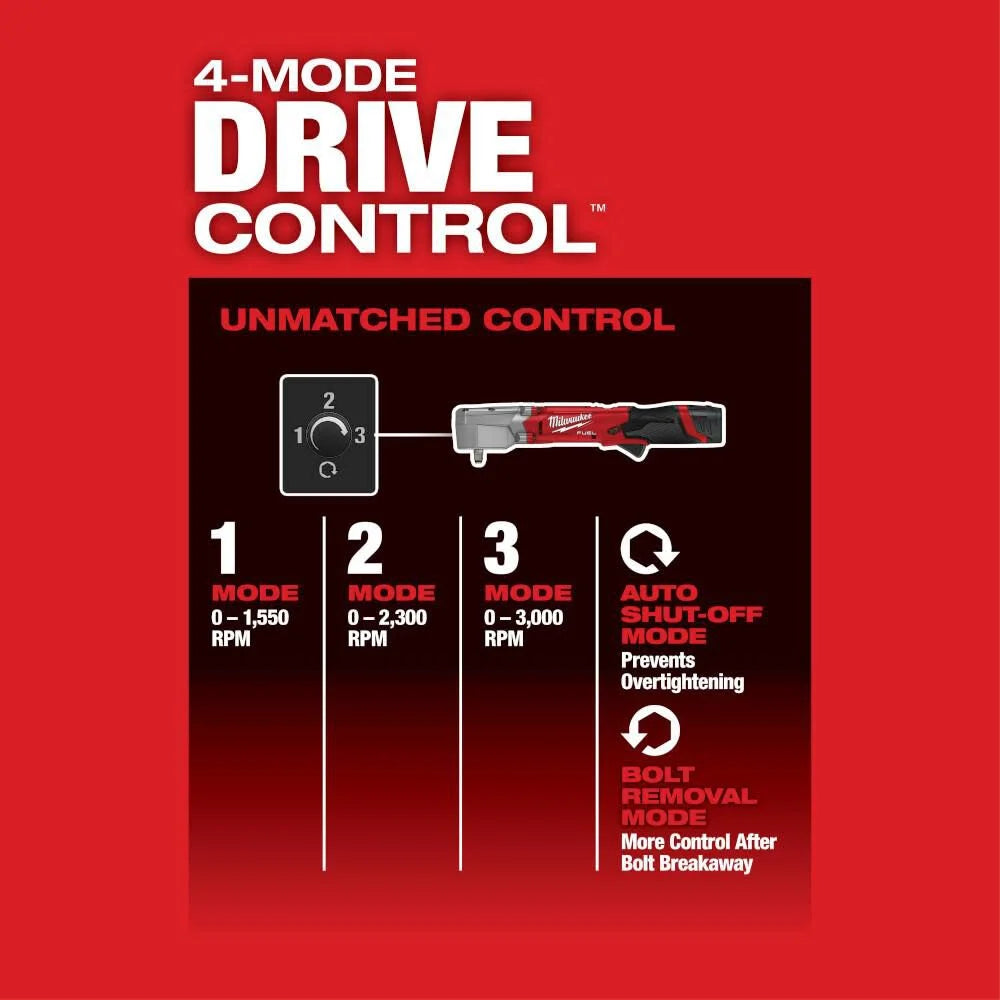

4-mode DRIVE CONTROL
| Mode | RPM | IPM |
|---|---|---|
| 1 | 0–1,550 | 0–1,350 |
| 2 | 0–2,300 | 0–2,700 |
| 3 | 0–3,000 | 0–3,600 |
| 4 forward | Auto shut-off | Stops at 15 ft-lbs or less |
Reach and control

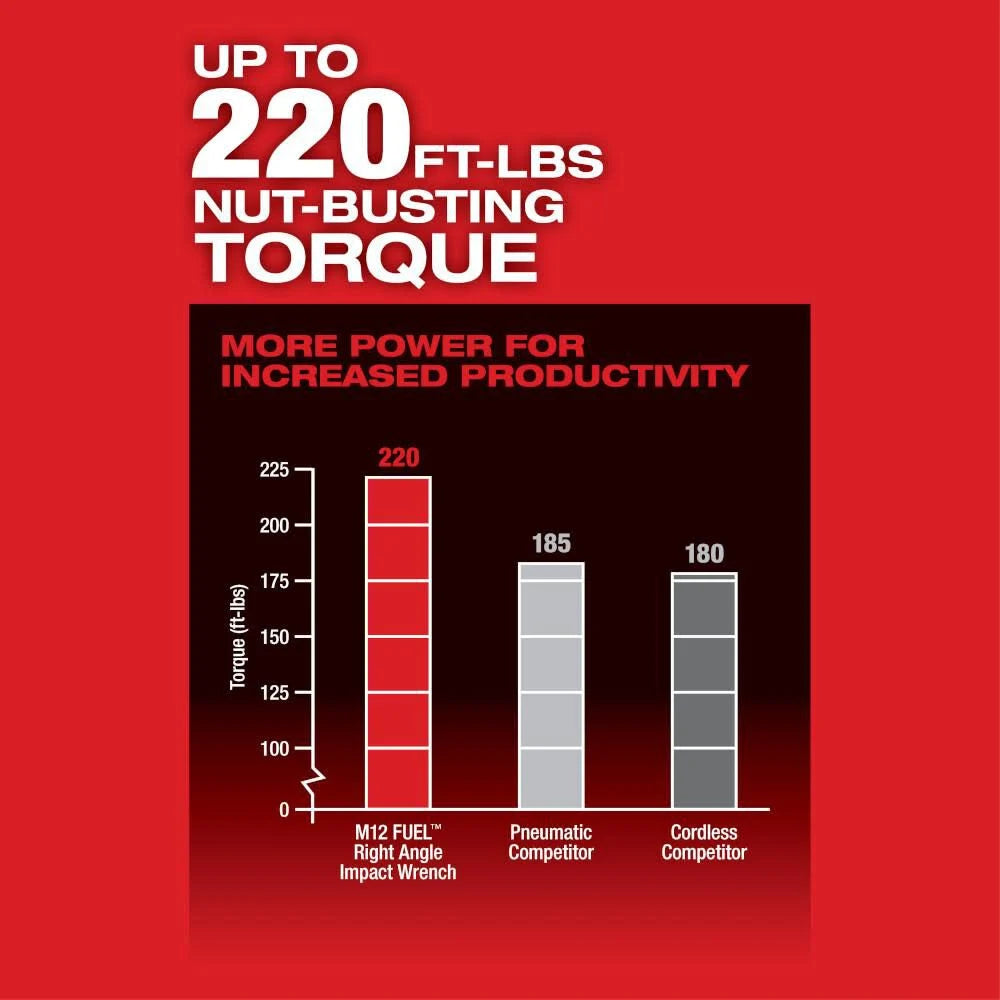

- Real torque. 220 ft-lbs without kickback.
- Bolt Removal. In reverse, mode 4 drastically slows the speed once the bolt breaks loose, for more control.
- Auto shut-off. Mode 4 in forward stops to avoid over-tightening.
- Built tough. POWERSTATE brushless motor, aluminum housing, LED and fuel gauge.
Finish by hand on gaskets. Milwaukee notes loosening torque averages 75–80% of tightening torque. On light gasket jobs, run fasteners down at low torque and finish with a hand torque wrench.
Setup
- Remove the battery before changing sockets.
- Push an impact-rated socket firmly over the friction ring; pull straight off to remove.
- Pull and release the trigger, then press the drive control button to choose a mode.
- Set direction only when the motor has stopped; center the switch to lock the trigger.
- Wear ANSI Z87.1 eye protection.

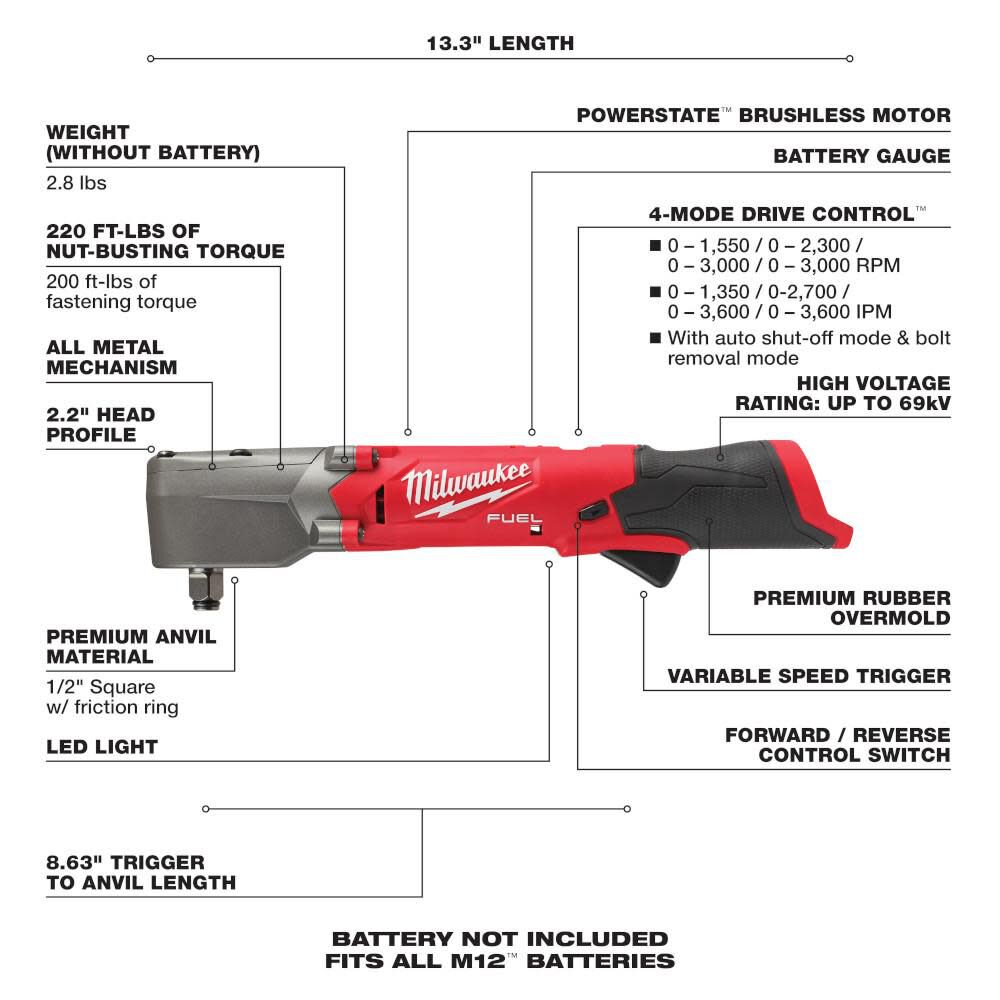

Tech specs
| Model | 2565-20 (bare tool) |
|---|---|
| Drive | 1/2 in square, friction ring |
| Max torque | 220 ft-lbs |
| Speed | Up to 3,000 RPM, 3,600 IPM |
| Modes | 4-mode DRIVE CONTROL |
| Motor | POWERSTATE brushless |
| Weight | 2.82 lb bare, 3.25 lb with battery |
| Operating temperature | 0 to 125°F |
| Battery | M12 (not included) |
| Warranty | 5-year limited |
Related
FAQ
Is a battery included?
No. It's a bare tool that needs one M12 battery.
Why won't mode 4 tighten fully?
In forward, mode 4 is auto shut-off. It stops at 15 ft-lbs or less so fasteners aren't over-tightened.
Friction ring or pin detent?
Friction ring. The pin detent version is 2565P-20.
Can I use regular sockets?
No. Milwaukee says to use only impact-rated sockets; others can shatter.
What's the warranty?
Milwaukee covers the tool with a 5-year limited warranty.
Manufacturer documents: 2565-20 operator's manual (PDF)Milwaukee product page
