  • SATA 81810 Fine Filter Cartridge, For Use With Series 200/300/400 Filter - SATA part 81810
1 1

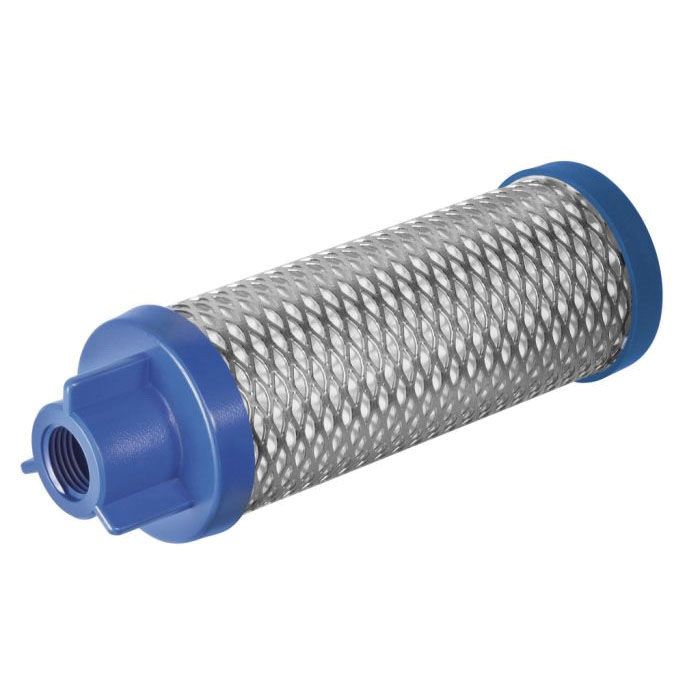

SATA 81810 Fine Filter Cartridge, 0.01 µm, Filter Series 200/300/400

81810

$289.99
$333.20 $289.99
Sale Sold out
Shipping calculated at checkout.
  • Ships in 1–2 business days from Eugene, OR
  • Free ground shipping over $425 · $9.99 under
  • 30-day returns on unopened, resalable items

In stock

View full details

Specifications

Part number
81810
Brand
SATA
Warranty
1-year SATA USA warranty
Made in
Czech Republic
UPC
402753381810

The second-stage fine filter cartridge for SATA's 200, 300 and 400 series compressed-air filters. Its micro-fibre fleece separates 99.998% of particles larger than 0.01 µm between the sintered filter and the activated charcoal stage.

Filter fineness
0.01 µm
Separation degree
99.998%
Replace at the latest
6 months
Blue marker
Stage B
How the stages work

SATA filter 400 series

Stage Cartridge Change
A: sintered filter, 5 µm 22160 Clean at 6 months, replace if needed
B: fine filter, 0.01 µm 81810 (this product) Replace every 6 months at the latest
C: activated charcoal 85373 Replace every 3 months at the latest
Why it matters

Clean air, clean paint

  • Fine separation. Special micro-fibre fleece, 99.998% separation for particles over 0.01 µm.
  • Protects the charcoal stage. SATA says the charcoal cartridge can only be used with stages A and B in front of it.
  • Colour coded. Blue markers on the threaded rods identify the fine filter stage.
Don't stretch the interval. SATA warns that saturated cartridges cause paint quality problems, and on supplied-air respirators they can cause serious harm. Change 81810 every 6 months at the latest, sooner if your air is heavily contaminated.
How to use

Changing the cartridge

  1. Close the shut-off tap and depressurize the filter unit.
  2. Open the housing with the supplied pin spanner.
  3. Swap in the new 81810 at the blue-marked fine filter stage.
  4. Check that the O-rings are seated and undamaged, then close the housing.
  5. Replace and activate the SATA filter timer for that stage.
Specifications

Tech specs

Article 81810
Stage 2nd stage (B), fine filter
Media Special micro-fibre fleece
Fineness 0.01 µm
Separation degree 99.998% for particles > 0.01 µm
Filter surface 300 cm²
Supplied Complete with O-ring
Fits SATA filter series 200, 300 and 400 (e.g. 444, 484)
Change interval 6 months at the latest
Pairs well with

Related

Quick answers

FAQ

Which stage is it?

The second stage (B), the fine filter.

How fine does it filter?

0.01 µm, with 99.998% separation for particles larger than that.

How often should I change it?

Every 6 months at the latest, and sooner if your compressed air is heavily contaminated.

Do I need the charcoal cartridge too?

Only on 3-stage units such as the SATA filter 484. That's cartridge 85373, changed every 3 months.

Which filter units does it fit?

SATA filter series 200, 300 and 400, such as the 444 and 484.

Manufacturer documents: SATA filter 400 manual (PDF)SATA 81810 page
