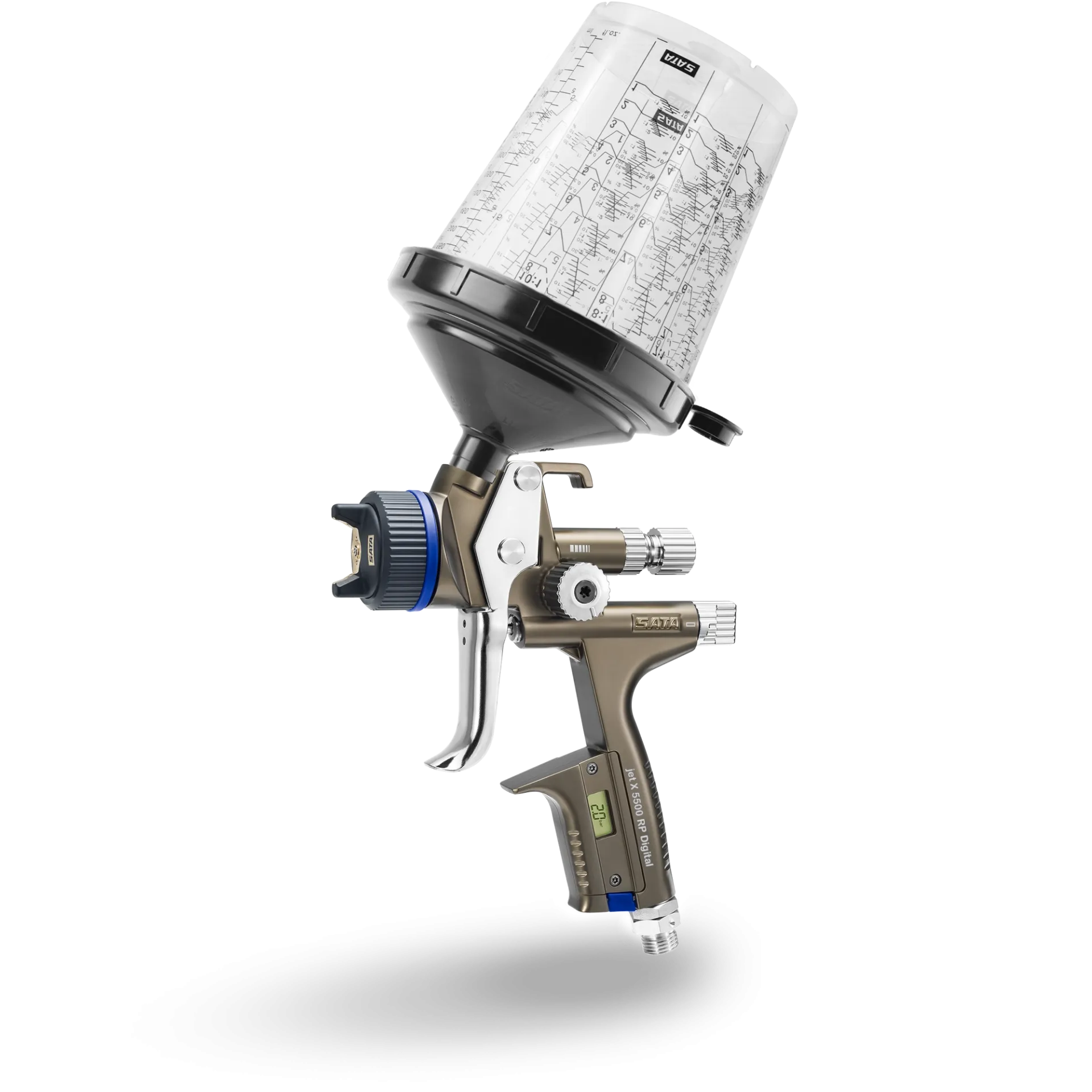

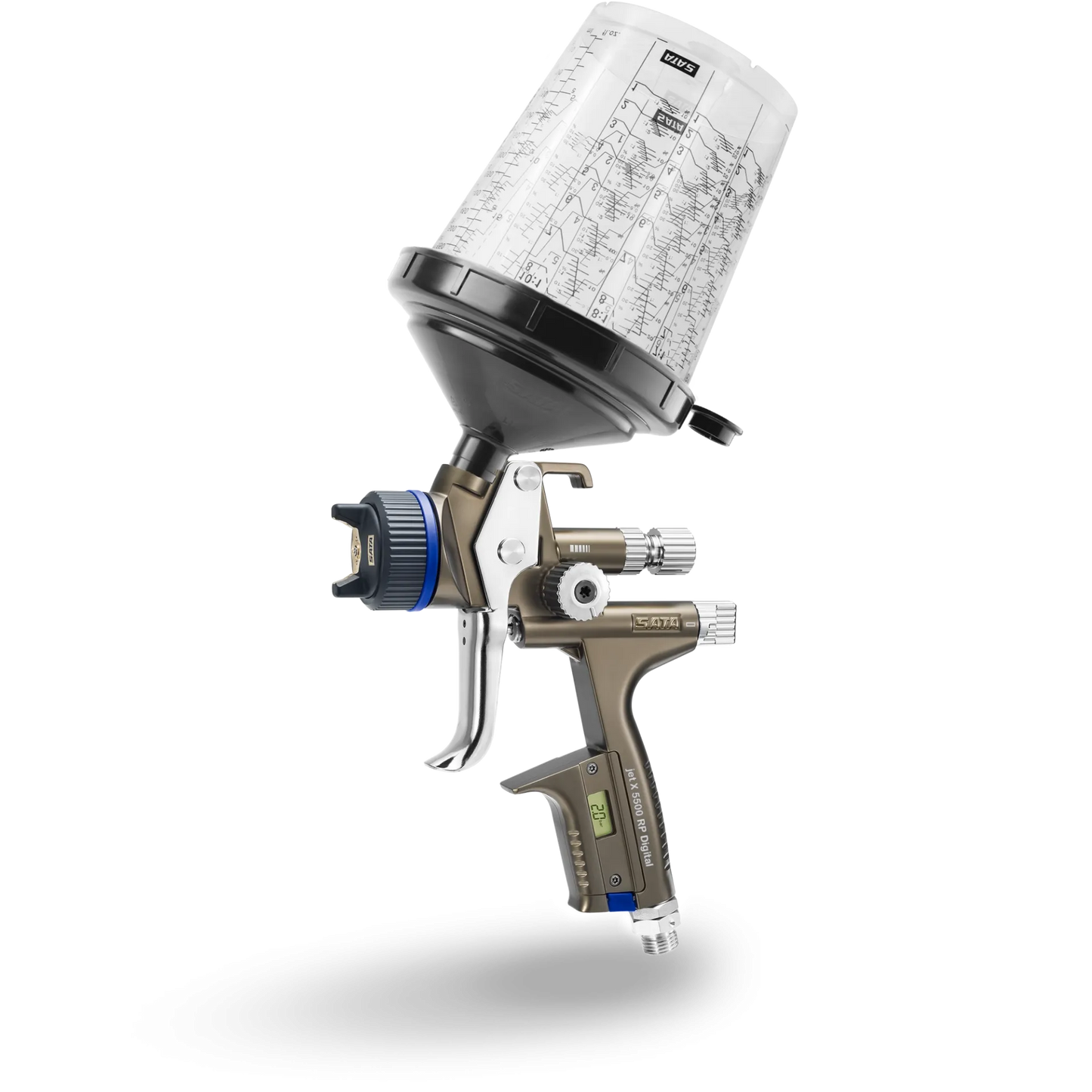

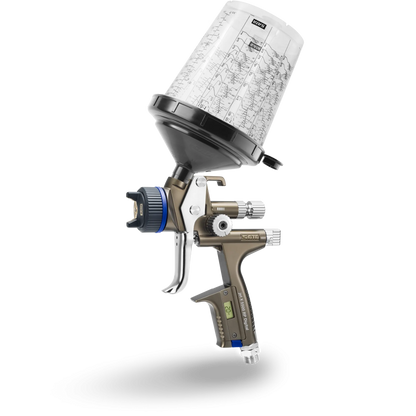

SATAjet X 5500 RP DIGITAL Spray Gun with RPS Cups, 1.1–1.4 mm I/O Nozzle
SKU:1061811
Couldn't load pickup availability
- Ships in 1–2 business days from Eugene, OR
- Free ground shipping over $425 · $9.99 under
- 30-day returns on unopened, resalable items
In stock
Specifications
- Part number
- 1061811
- Brand
- SATA
- Grit
- Size
- Warranty
- 1-year SATA USA warranty
- Made in
- Germany
- Shipping
- Contains a lithium metal battery (packed with equipment) (UN3091). Ships ground only.

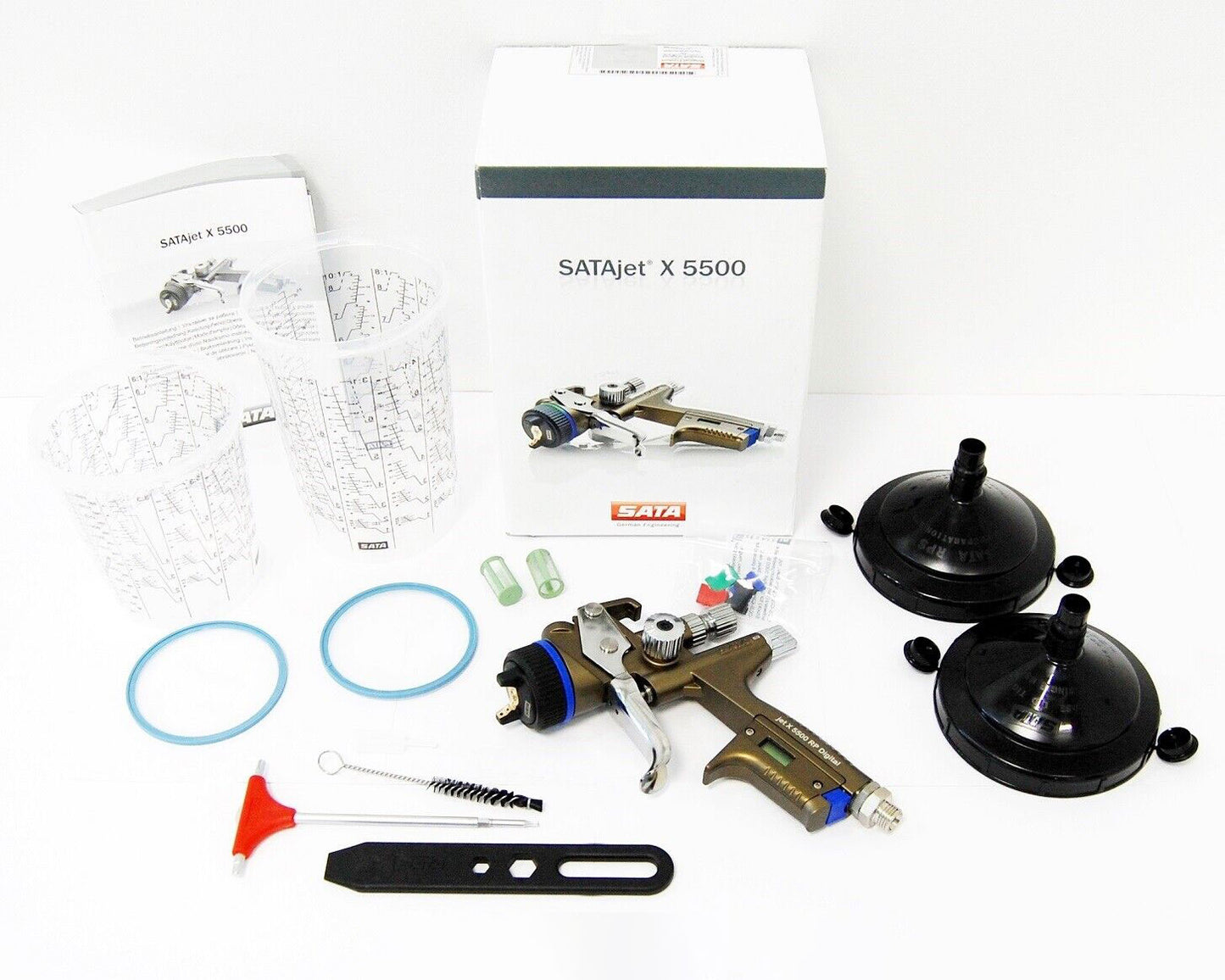

- Includes

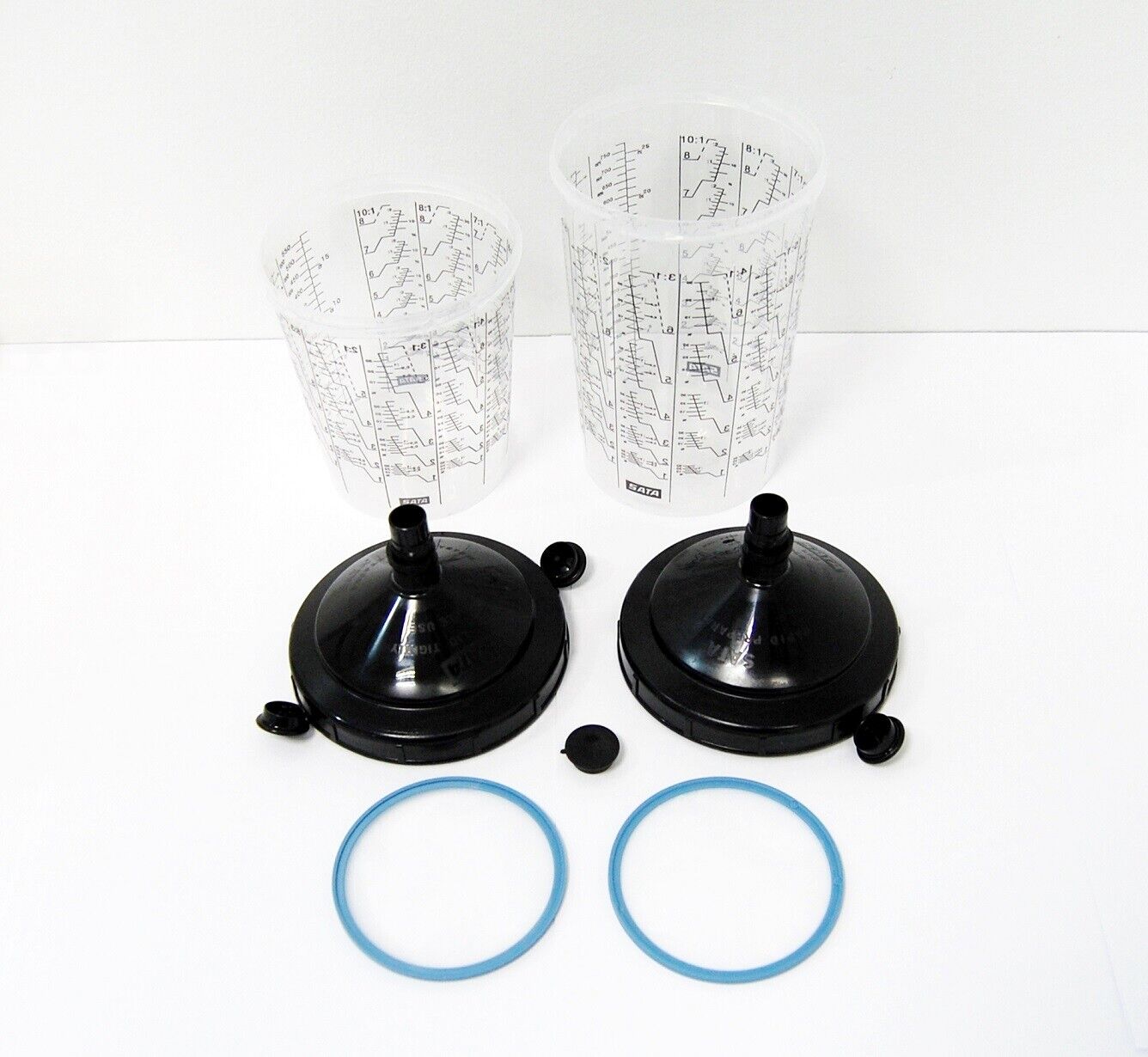

- 0.6 L, 0.9 L QCC RPS Multi-Purpose Cup with Swivel Joint
- UPC
- 4027533236900

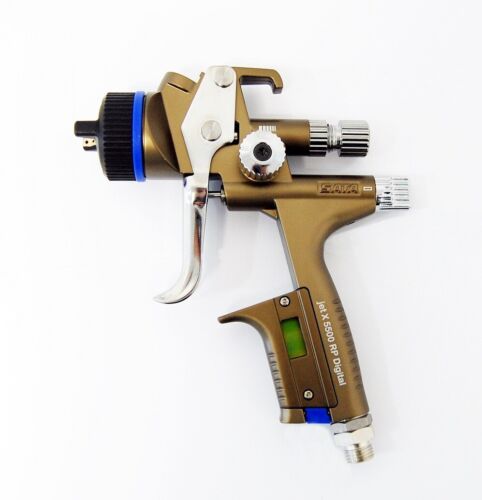

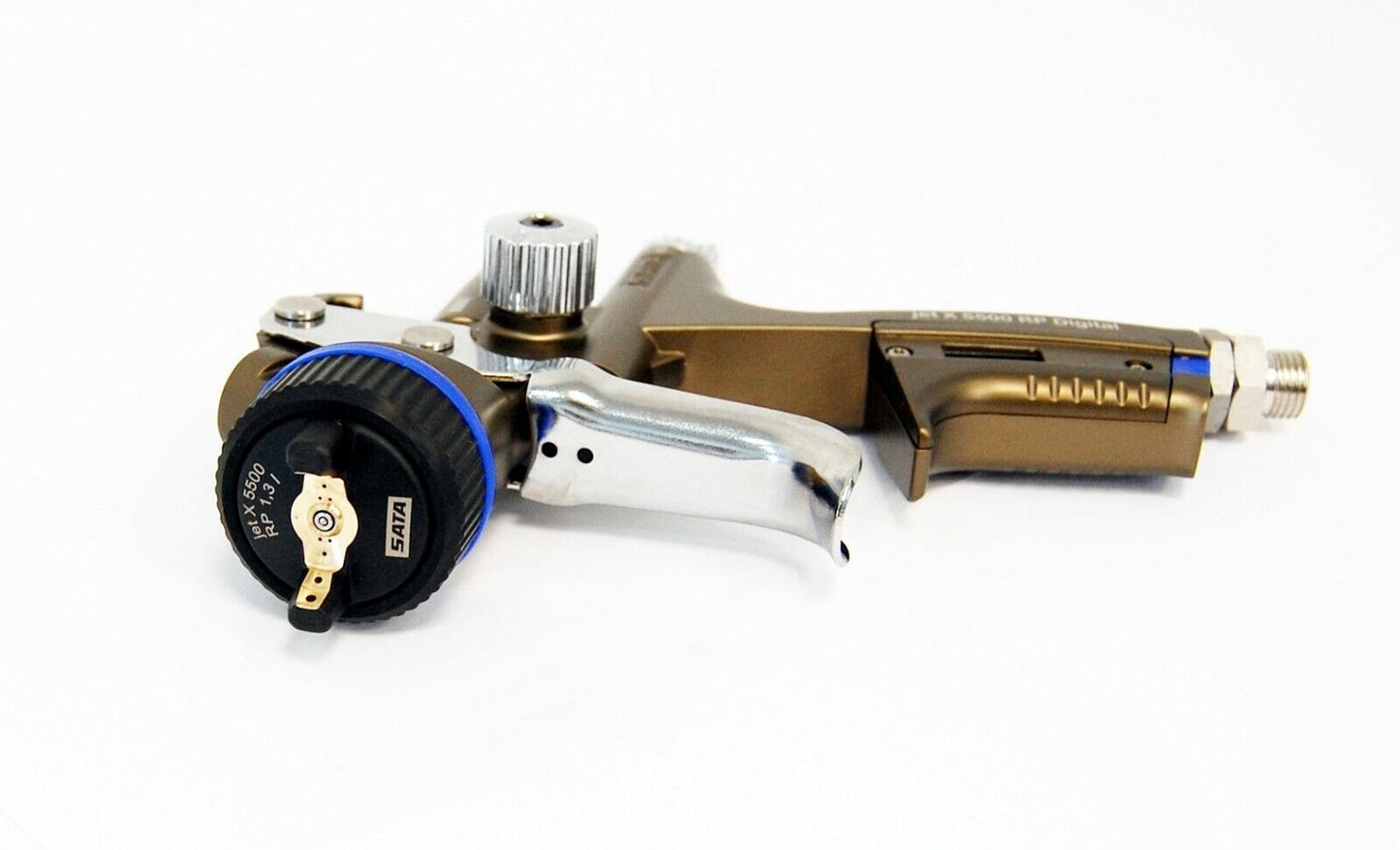

The X 5500 RP with a digital pressure gauge built into the handle. You read inlet pressure where it matters, at the gun, to ±1 psi, so every coat starts from the same setting. Choose I or O nozzles.
- Gauge accuracy
- ±1 psi
- Air consumption
- 10.2 cfm
- Spray distance
- 6.7–8.3 in
- Weight with 0.6 L cup
- 19.4 oz
Repeatable pressure, same RP speed
- Gauge in the handle. SATA says it lets you adjust pressure precisely for color accuracy and reproducible results. The handle stays compact.
- The most accurate method. SATA's manual ranks a gun with an integrated digital display as the accurate way to set pressure. Setting it at the air line is the least accurate.
- X nozzle system. I nozzles for control, O nozzles for speed. It sprays waterborne and solvent-based systems.
- Ready to spray. It ships with RPS 0.6 L and 0.9 L cups on the QCC connection.
Pick your fan: I (Control) or O (Speed)
- I nozzle. A parallel, elongated fan with a minimal dry zone and a drier center, for maximum control. It builds slightly less film per coat.
- O nozzle. An oval fan with a wet core and a larger fade-out zone, for higher application speed.
- Size is flow, not fan width. Going from 1.2 to 1.4 mm moves more material. Match it to your coating maker's data sheet.
How to set it up
- Run an antistatic, solvent-resistant hose with at least a 9 mm (about 3/8 in) inside diameter, and filter your air. SATA specifies both in the manual.
- Fill the cup no higher than 20 mm (about 3/4 in) below the rim and lock it onto the QCC connection.
- Open the material flow control and the air micrometer fully. Then pull the trigger all the way and read the handle display while you set 2.0 bar (29 psi).
- Spray from 17–21 cm (6.7–8.3 in). Pull the trigger fully on every pass.
- Clean it nozzle-down with a neutral cleaner (pH 6–8), keeping air flowing through the gun. Never soak it and never use an ultrasonic cleaner. Blow it dry when you're done.
Tech specs
| Technology | RP |
|---|---|
| Nozzles sold here | 1.2, 1.3, 1.4 mm in I or O, plus 1.1 mm I |
| Recommended inlet pressure | 2.0 bar (29 psi) |
| Operating range | 0.5–2.4 bar (7–35 psi) |
| Air consumption | 290 Nl/min (10.2 cfm) at 2.0 bar |
| Recommended spray distance | 17–21 cm (6.7–8.3 in) |
| Pressure reading | Digital gauge in the handle, ±1 psi, CR1632 battery |
| Weight with 0.6 L RPS cup | 550 g (19.4 oz) |
| Air connection | 1/4 in male thread, swivel joint |
| Cup connection | QCC |
| Included cups (per SATA) | RPS 0.6 L and 0.9 L |
| Max. material temperature | 50 °C (122 °F) |
Which SATA is right for you?
| Gun | Best for | Key numbers |
|---|---|---|
| X 5500 RP Standard | Fast basecoat and clear; set pressure at the regulator | RP · 10.2 cfm · 6.7–8.3 in |
| X 5500 RP DIGITAL (this gun) | Same RP gun with a pressure gauge in the handle | RP · 10.2 cfm · ±1 psi gauge |
| X 5500 HVLP Standard | Highest transfer efficiency, at a closer distance | HVLP · 15.2 cfm · 3.9–5.9 in |
| X 5500 HVLP DIGITAL | HVLP with the in-handle pressure gauge | HVLP · 15.2 cfm · ±1 psi gauge |
| 1500 B SoLV | Solvent base, sealer and clear; lower cost of entry | RP or HVLP · 1.3 / 1.4 mm only |
Related
FAQ
RP or HVLP: why RP?
SATA calls RP "the Extra-Fast": high-pressure technology for maximum working speed with VOC-compliant transfer rates. HVLP is "the Extra-Efficient": low-pressure technology for particularly high transfer rates. It needs more air and a closer spray distance.
How big a compressor do I need?
The gun alone uses 10.2 cfm (at 29 psi inlet). Size for that delivered air plus headroom for your hose, filters and anything else running. SATA also specifies a hose with at least 9 mm (3/8 in) inside diameter.
What comes with it?
SATA lists the gun with two RPS multi-purpose cups, one 0.6 L and one 0.9 L.
What battery does the gauge use?
One Renata CR1632. SATA says it lasts 1–3 years and gives a low-battery warning several weeks ahead. The gauge reads to ±1 psi.
Is there a warranty?
SATA offers a free extension to 3 years on spray guns through its Premium Warranty, which you activate online with the gun's serial number. It covers material and manufacturing defects. Wear parts and electronic components are excluded.
Manufacturer documents: X 5500 operating manual (PDF)SATA X 5500 product pageX 5500 leaflet (PDF)SATA Premium Warranty
