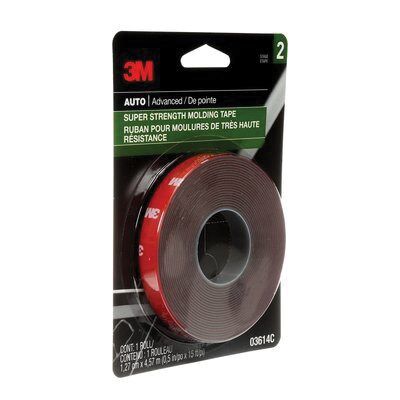

  • A roll of 3M brand double-sided super strength molding tape, packaged in a card showing the tape's features and specifications.
1 1

3M Super Strength Molding Tape 03614, 1/2 in x 15 ft Roll

3614

$7.99
$10.56 $7.99
Sale Sold out
Shipping calculated at checkout.
  • Ships in 1–2 business days from Eugene, OR
  • Free ground shipping over $425 · $9.99 under
  • 30-day returns on unopened, resalable items

In stock

View full details

Specifications

Part number
3614
Brand
3M
Sold as
Roll
UPC
051131036147

3M's double-sided acrylic foam tape for permanently attaching body side moldings, trim and emblems. It bonds painted or unpainted plastic, metal, carbon fiber and composites, and handles -40 to 250°F.

Width
1/2 in
Roll length
15 ft
Foam thickness
0.045 in
Apply above
65°F+
Choose your size

3M molding tape sizes

Part Size Here
03609 1/2 in × 5 ft Yes
03614 1/2 in × 15 ft This product
03616 7/8 in × 15 ft Yes
Why it works

Permanent, no mess

  • Acrylic foam core. Medium-density dark gray foam with high-performance acrylic adhesive.
  • Wide temperature range. -40 to 250°F in service.
  • Tough. 3M says it resists moisture, UV and solvents.
  • No liquids. Cut, apply, press.
Tape the part, then trim. 3M says to run the tape the full length of the molding with the liner still on and cut it flush with the end. Peel the liner only when you're ready to mount.
How to use

Application

  1. Clean both surfaces with a 3M cleaner to remove wax and silicone.
  2. Wipe with rubbing alcohol on a clean cloth and let it dry.
  3. Apply the tape to the molding and trim it flush.
  4. Make sure the vehicle surface is above 65°F (18°C).
  5. Peel the liner, position the part and press firmly. Firm pressure improves the bond.
Specifications

Tech specs

Part number 03614
Size 1/2 in × 15 ft (12.7 mm × 4.6 m)
Foam Dark gray acrylic, medium density
Thickness 0.045 in (1.14 mm)
Liner Red polyethylene
Service temperature -40 to 250°F
Minimum application temperature 65°F (18°C)
Uses Body side, rocker and wheel lip moldings, trim, emblems
3M case 24 rolls
Pairs well with

Related

Quick answers

FAQ

How warm does it need to be?

Apply to surfaces above 65°F (18°C).

What temperatures can it take?

-40 to 250°F.

How should I prep?

Remove wax and silicone with a 3M cleaner, wipe with rubbing alcohol and let it dry.

Does it work on unpainted plastic?

Yes. 3M lists painted or unpainted surfaces, including plastic, metal, carbon fiber and composites.

Is this a single roll?

Yes, one 1/2 in × 15 ft roll. 3M packs them 24 to a case.

Manufacturer documents: 3M molding tape TDS (PDF)
