DeVilbiss StartingLine HVLP Paint & Primer Spray Gun Kit, 802343, 1.3 & 1.8 mm
DeVilbiss StartingLine HVLP Paint & Primer Spray Gun Kit, 802343, 1.3 & 1.8 mm
SKU:802343
A two-gun HVLP starter kit from DeVilbiss: a 1.3 mm gun for basecoat and clear and a 1.8 mm gun for primer, each with a 600 cc aluminum cup, plus a regulator with gauge, cleaning tools and a carrying case.
- HVLP guns
- 2
- Inlet for 10 psi at cap
- 30 psi
- Air consumption
- 13 cfm
- Aluminum cups
- 600 cc

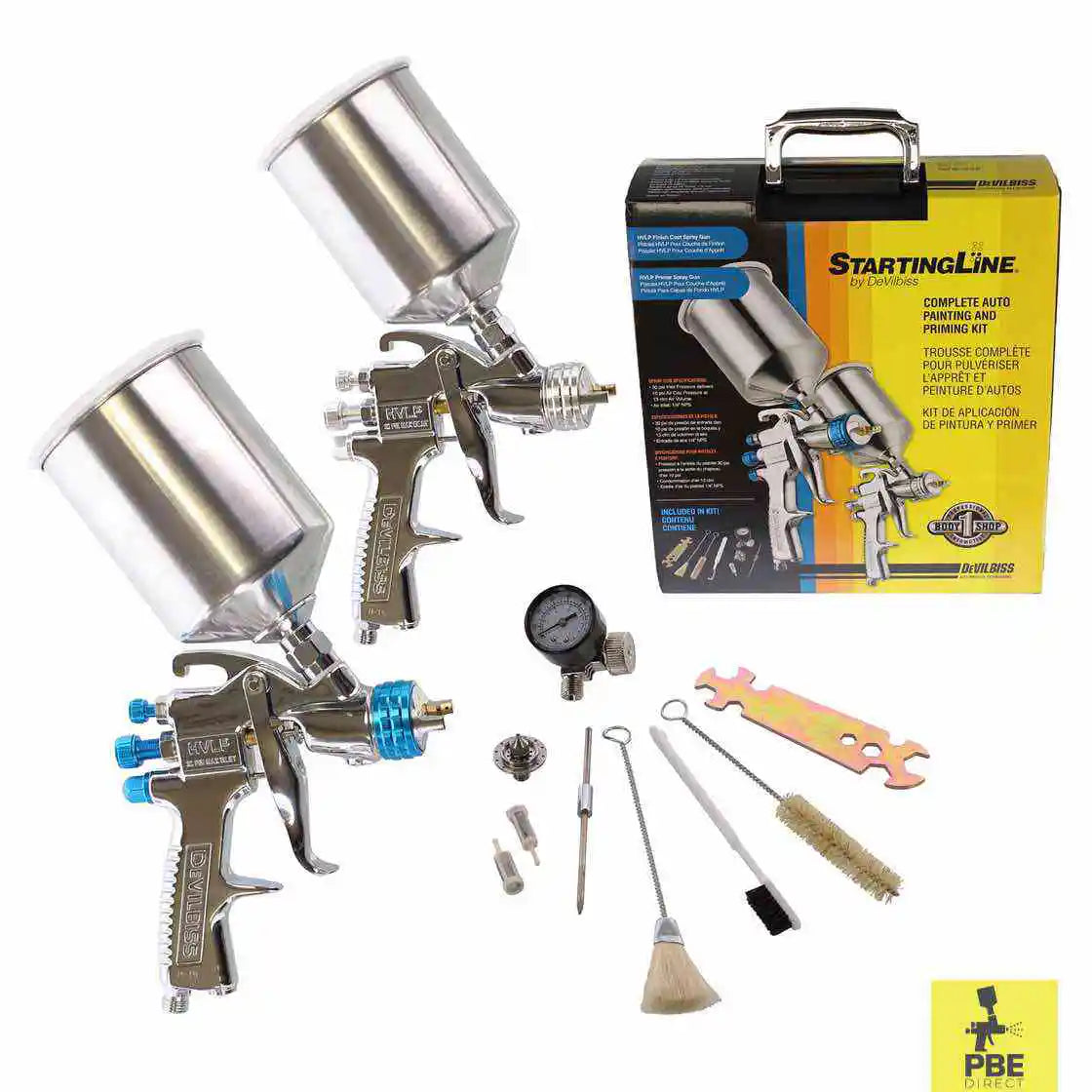

What's included

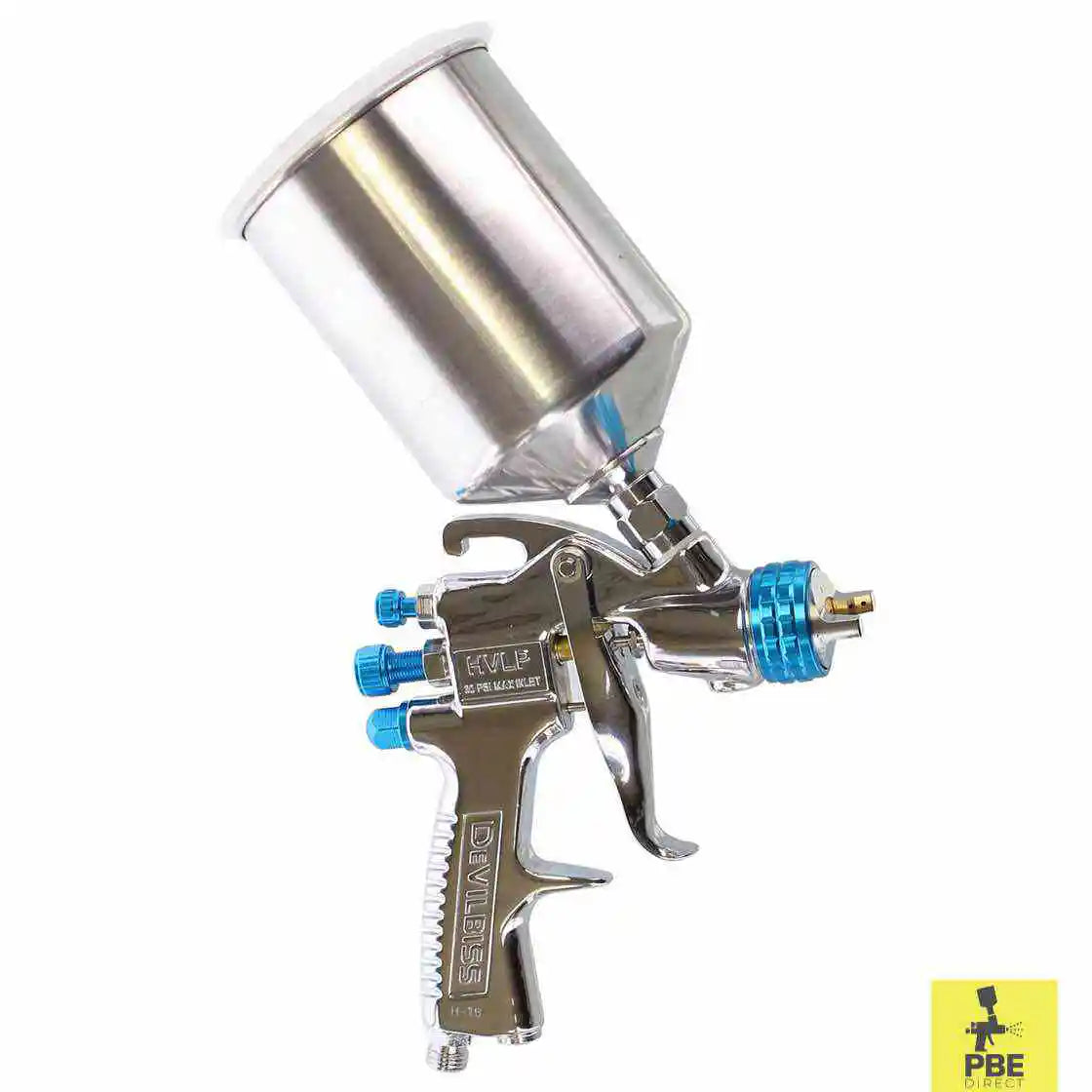

- StartingLine HVLP gravity gun with 1.3 mm tip and 600 cc aluminum cup

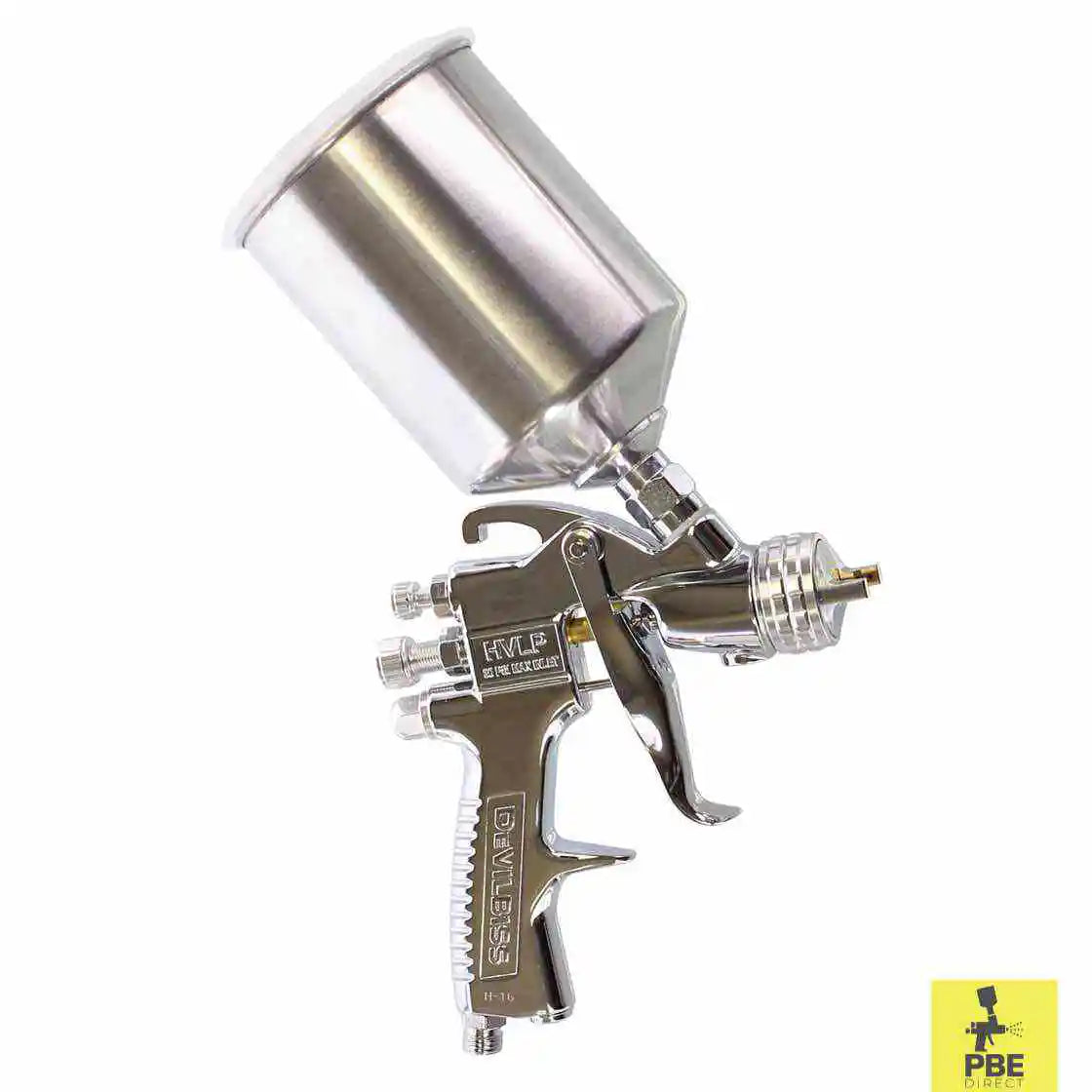

- StartingLine HVLP gravity gun with 1.8 mm tip and 600 cc aluminum cup

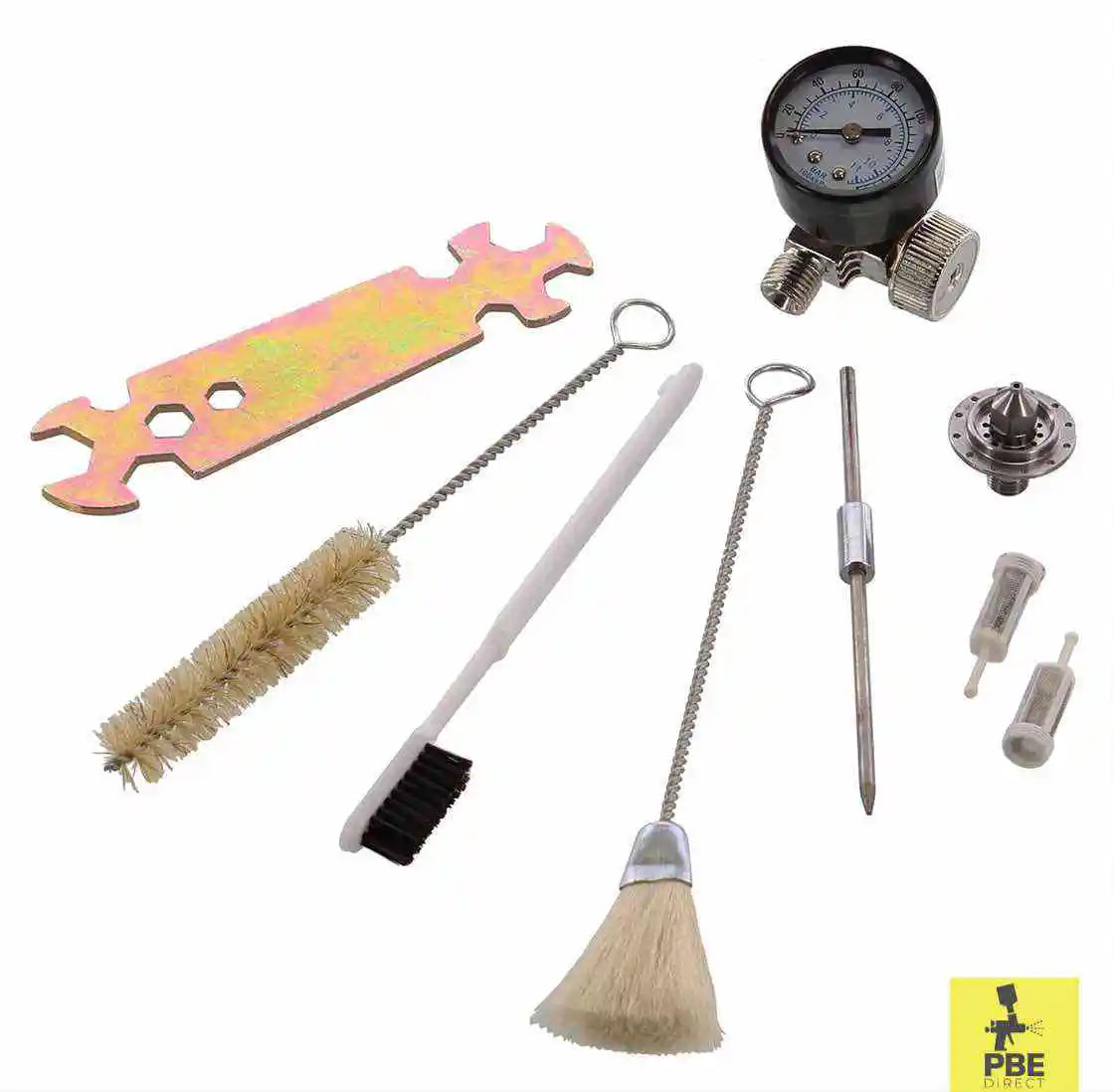

- Air adjusting valve regulator with gauge
- Gun cleaning brush set and maintenance wrench

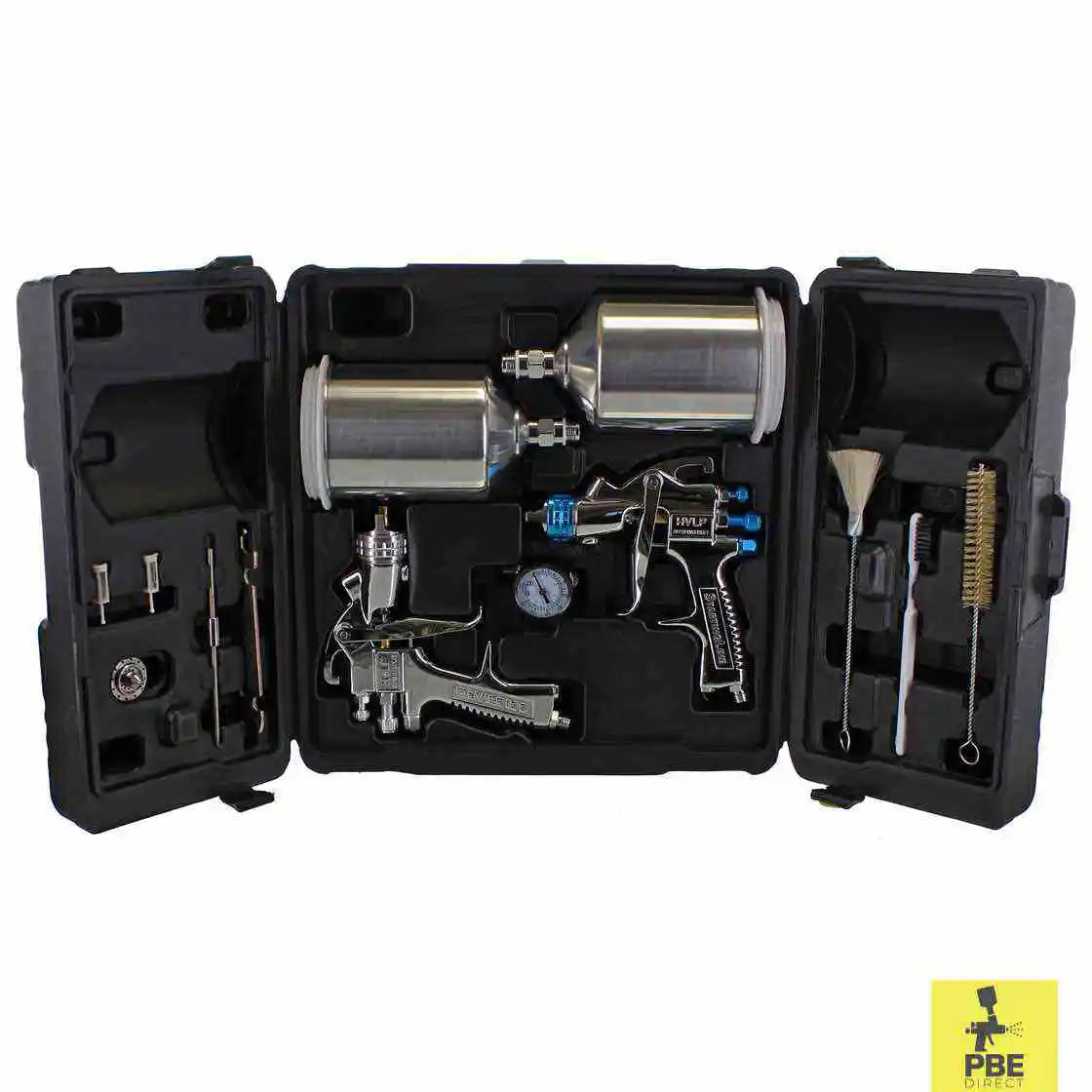

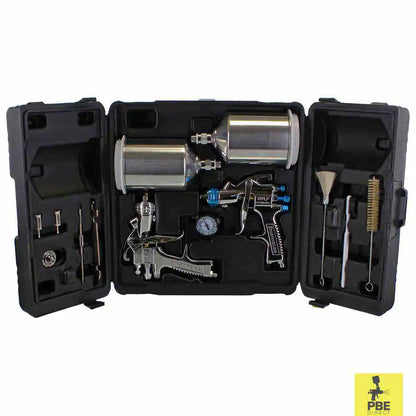

- Blow-molded carrying case
Tip guide
| Tip | DeVilbiss recommends | In this kit |
|---|---|---|
| 1.3 mm | Topcoats: base and clear | Yes |
| 1.5 mm | Topcoats and primer sealers | Sold separately (803015) |
| 1.8 mm | Primers | Yes |
Snug the packing nut before you spray. DeVilbiss ships the packing nut loose on purpose. Tighten it until the needle binds, then back it off until the needle moves freely. Skip this and the gun can leak at the needle.
How to set it up
- Flush solvent through the gun before first use.
- Set the packing nut as above.
- Use an air hose of at least 5/16 in inside diameter.
- Set 30 psi at the gun inlet with the trigger pulled. That gives the HVLP 10 psi at the cap.
- Spray from 6–8 in. Never fully immerse the gun in solvent, and lubricate it daily.
Tech specs
| Part number | 802343 |
|---|---|
| Type | HVLP gravity feed, full size |
| Inlet pressure | 30 psi (10 psi at the cap) |
| Air consumption | 13 cfm |
| Air hose | 5/16 in ID or larger |
| Cups | 600 cc aluminum with push-in lid (803610) |
| Tips | 1.3 mm (803013) and 1.8 mm (803018) |
| Repair kit | 802425 |
Related
FAQ
What's each gun for?
DeVilbiss recommends the 1.3 mm tip for topcoats (base and clear) and the 1.8 mm tip for primers.
How big a compressor do I need?
Each gun uses 13 cfm at 30 psi. Size your compressor for that delivered air, with headroom.
Can I spray primer sealer?
DeVilbiss recommends a 1.5 mm tip (803015) for topcoats and primer sealers. It's sold separately.
Is there a warranty?
The guns carry Carlisle Fluid Technologies' materials and workmanship limited warranty. Call 1-800-445-3988 for details.
Manufacturer documents: StartingLine service manual (PDF)
