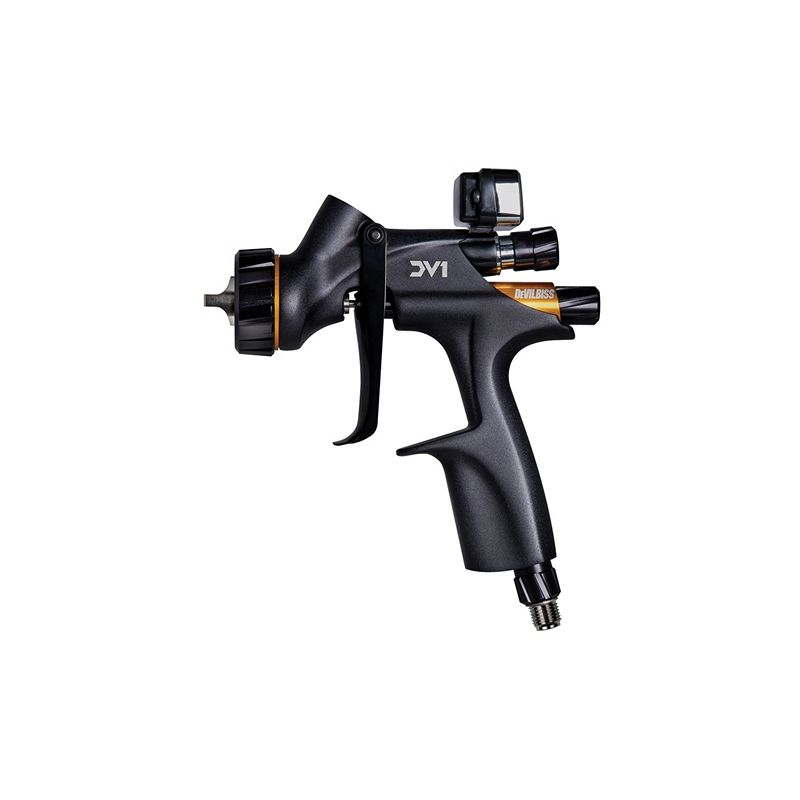

DeVilbiss DV1 Clearcoat HVLP Spray Gun Kit, 704521, C1+ & C2+ Caps, 1.2/1.3/1.4 mm Tips

DeVilbiss DV1 Clearcoat HVLP Spray Gun Kit, 704521, C1+ & C2+ Caps, 1.2/1.3/1.4 mm Tips

704521

DeVilbiss' dedicated clear gun. The C1+ air cap breaks clear into fine, even particles that flow out flat and hang on vertical panels, and the kit gives you three clear tips, a second air cap and the DGi Pro digital gauge.

At the digital gauge
22 psi
Air use, C1+ cap
10.0 scfm
Spray distance
6–8 in
Gun weight
16.6 oz
Why it works

Built for clear

  • C1+ clearcoat air cap. DeVilbiss says it lays clear down flat and minimizes runs and sags on vertical panels.
  • New fluid tip. Increases fluid flow while stabilizing the air flow.
  • Digital gauge at eye level. The DGi Pro reads to within 0.7 psi, turns on when you pull the trigger and is gun-washer safe.
  • Two caps. The C2+ cap runs at 11.3 scfm with a 12.2 in fan, alongside the C1+ at 10.0 scfm and 12.8 in.
In the kit

What's included

  • DV1 Clearcoat spray gun
  • DV1-C1+ and DV1-C2+ HVLP air caps
  • 1.2, 1.3 and 1.4 mm clearcoat fluid tips
  • DGi Pro integrated digital gauge
  • DPC-43 DeKups disposable cup adapter
  • Tool kit: valve tool, Torx driver, tip wrench
Read the gauge, not the wall. DeVilbiss specs 22 psi at the digital gauge, which is the same as 29 psi at the gun handle. Set it with the trigger pulled and you'll hit the same numbers every time.
Setup

How to set it up

  1. Fit the C1+ cap and the tip your clear's data sheet calls for (1.2, 1.3 or 1.4 mm).
  2. Attach a DeKups cup through the included DPC-43 adapter.
  3. Pull the trigger and set 22 psi on the digital gauge.
  4. Spray from 6–8 in (150–200 mm).
Specifications

Tech specs

Type HVLP gravity
Inlet pressure 22 psi at the gauge / 29 psi at the handle
Max. static inlet 175 psi (12 bar)
Air use 10.0 scfm (C1+), 11.3 scfm (C2+)
Fan 12.8 in (C1+), 12.2 in (C2+) at 8 in
Spray distance 150–200 mm (6–8 in)
Weight 470 g (16.6 oz)
Connections Air 1/4 in universal, fluid 3/8 in BSP
Body Anodized aluminum, stainless tip and needle
Pairs well with

Related

Quick answers

FAQ

C1+ or C2+?

Both are HVLP clear caps. The C1+ uses 10.0 scfm with a 12.8 in fan; the C2+ uses 11.3 scfm with a 12.2 in fan.

What pressure do I set?

22 psi on the digital gauge, which equals 29 psi at the gun handle.

Can I use the basecoat tips?

DV1 tips are specific: clear tips are marked "C" and base tips "B". The clear kit ships with 1.2, 1.3 and 1.4 C tips.

What cup does it use?

It includes the DPC-43 adapter for DeVilbiss DeKups disposable cups.

Manufacturer documents: DV1 Clearcoat pageDV1 operating manual (PDF)

$949.00
$949.00
Sale Sold out
Shipping calculated at checkout.
  • Ships in 1–2 business days from Eugene, OR — solvent-based items ship ground only
  • Free ground shipping over $425 · $9.99 under
  • Free pickup in Eugene, OR — usually ready in 24 hours
  • 30-day returns on unopened, resalable items

Low stock

View full details
