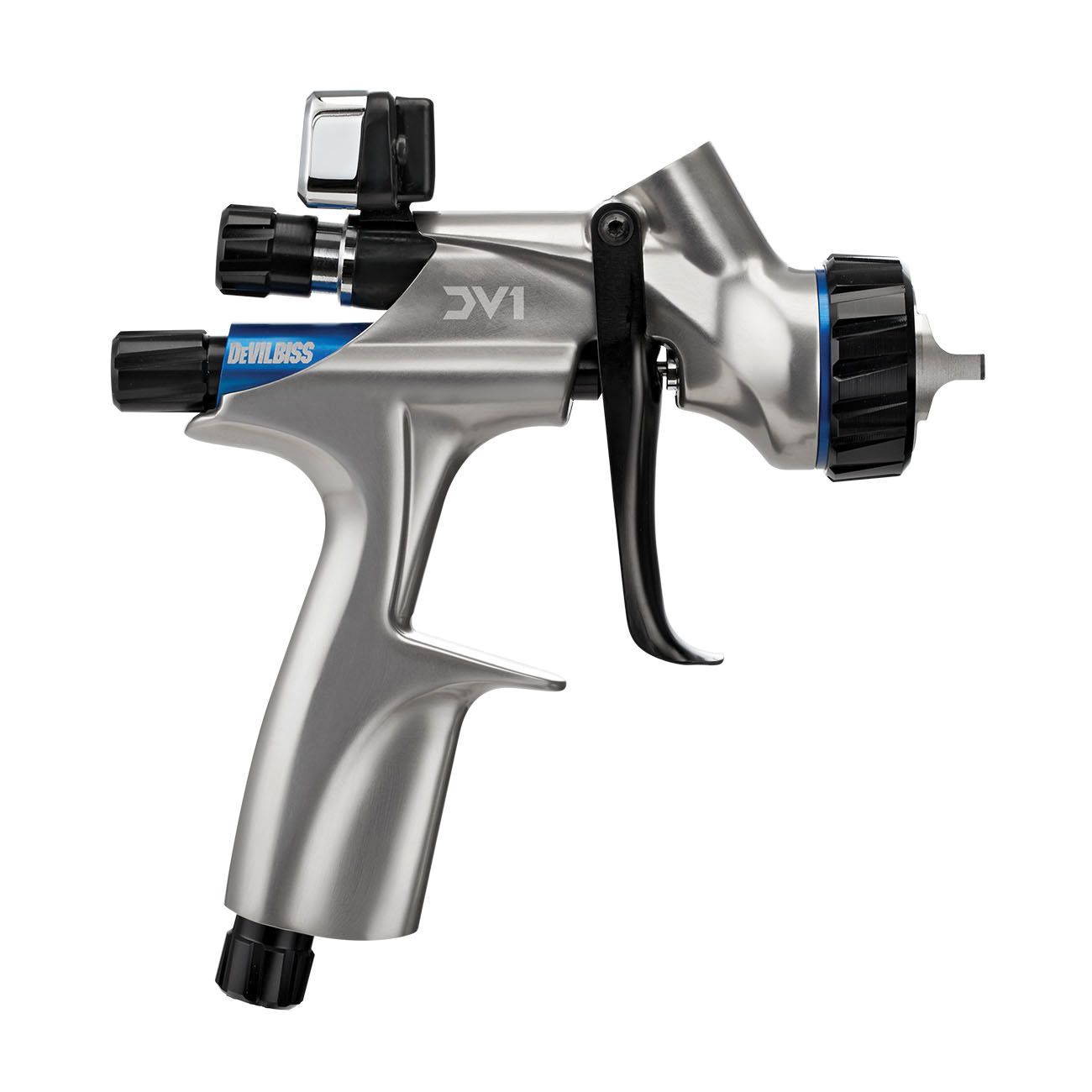

DeVilbiss DV1 Basecoat HVLP Spray Gun Kit, 704504 (DV1-B PLUS), 1.2/1.3/1.4 mm Tips

DeVilbiss DV1 Basecoat HVLP Spray Gun Kit, 704504 (DV1-B PLUS), 1.2/1.3/1.4 mm Tips

704504

DeVilbiss' dedicated basecoat gun, tuned for color accuracy and less mottling. The B+ air cap handles waterborne and solvent base, and the kit ships uncupped with three base tips, the DGi Pro digital gauge and a DeKups adapter.

At the digital gauge
22 psi
Air use, B+ cap
10.5 scfm
Fan at 8 in
12.8 in
Gun weight
16.6 oz
Why it works

Color you can match

  • B+ air cap. DeVilbiss rates it for water-based and solvent-based basecoats.
  • Less mottling. DeVilbiss positions the DV1 Basecoat for pinpoint color accuracy.
  • Sensitive air valve. DeVilbiss says the air valve is 12 times more sensitive.
  • Eye-level gauge. The DGi Pro sits in line at eye level and reads to within 0.7 psi.
In the kit

What's included

  • DV1 Basecoat spray gun with DV1-B PLUS air cap
  • 1.2, 1.3 and 1.4 mm basecoat fluid tips
  • DGi Pro integrated digital gauge
  • DPC-43 DeKups adapter (uncupped kit)
  • Tool kit: valve tool, Torx driver, tip wrench
Base tips and clear tips aren't the same part. DV1 base tips are marked "B" and clear tips "C", with different part numbers. If you run both a DV1 Basecoat and a DV1 Clearcoat, keep the tips with their guns.
Setup

How to set it up

  1. Fit the tip your basecoat's data sheet calls for (1.2, 1.3 or 1.4 mm).
  2. Attach a DeKups cup through the included DPC-43 adapter.
  3. Pull the trigger and set 22 psi on the digital gauge (29 psi at the handle).
  4. Spray from 6–8 in (150–200 mm).
Specifications

Tech specs

Type HVLP gravity
Air cap DV1-B PLUS (704408)
Inlet pressure 22 psi at the gauge / 29 psi at the handle
Air use 300 l/min (10.5 scfm)
Fan 325 mm (12.8 in) at 200 mm
Spray distance 150–200 mm (6–8 in)
Weight 470 g (16.6 oz)
Connections Air 1/4 in universal, fluid 3/8 in BSP
Coatings Waterborne and solvent base
Pairs well with

Related

Quick answers

FAQ

Waterborne or solvent?

Both. DeVilbiss rates the B+ air cap for water-based and solvent-based materials.

Does it come with a cup?

No. The kit is uncupped and includes a DPC-43 adapter for DeVilbiss DeKups disposable cups.

What pressure do I set?

22 psi on the digital gauge, which equals 29 psi at the gun handle.

Can I spray clear with it?

DeVilbiss makes the DV1 Clearcoat with its own C1+ and C2+ caps and C tips for that job.

Manufacturer documents: DV1 Basecoat pageDV1 operating manual (PDF)
