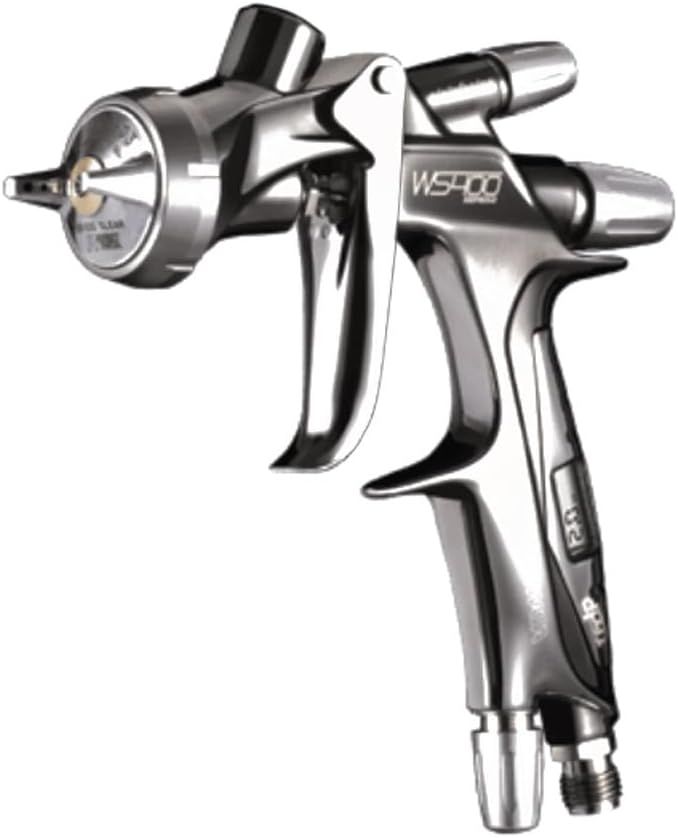

ANEST IWATA WS-400 Series 2 Clear Digital Spray Gun, 1.3 HD Nozzle, 2713D
ANEST IWATA WS-400 Series 2 Clear Digital Spray Gun, 1.3 HD Nozzle, 2713D
SKU:2713D
Iwata built the WS-400 Series 2 Clear for glass-like clearcoat at production speed. The 1.3 HD (high delivery) nozzle is the standard-speed size in the range, and the Split Nozzle 2.0 pre-atomizes the material before the air cap finishes the job. The digital gauge sits right on the gun.
- Inlet pressure, trigger pulled
- 29 psi
- Air consumption
- 13.1 cfm
- Fan width at 6 in
- 9.8 in
- Weight, no cup
- 16.4 oz
Built for clear
- Split Nozzle 2.0. Iwata says it directs air into the material stream to pre-atomize it, and its dual thread locks the nozzle in the same position every time.
- High delivery. The 1.3 HD flows 245 ml/min, with a 250 mm (9.8 in) fan at a 150 mm (6 in) spray distance.
- Digital gauge on board. The DPG-1 reads inlet pressure at the gun. The Click-Mag lock pops it off to change the battery or clean the gun.
- Compliant, not HVLP. Iwata rates it compliant under EPA NESHAP 40 CFR Part 63 Subpart 6H at 29 psi or less.
Where the 1.3 HD sits
| Nozzle | Iwata speed rating | Pick it for |
|---|---|---|
| 1.2 HD | Control | Smaller parts, more control |
| 1.3 HD (this gun) | Standard | Everyday clear, panels to overalls |
| 1.4 HD | Speed | Faster, wetter passes |
| 1.5 HD | High speed | Large surfaces |
How to set it up
- Connect clean, dry air to the 1/4 in male air inlet.
- Pull the trigger fully and set 29 psi (2.0 bar) or less on the digital gauge. That's Iwata's suggested pressure and the compliant maximum.
- Reduce the clear to 14–25 seconds in a Ford #4 cup, or follow your clear's data sheet.
- Spray as close as you can within 4–10 in (100–250 mm). Iwata measures the 9.8 in fan at 6 in.
- Remove the digital gauge before cleaning. Never immerse the gauge.
Tech specs
| Model | WS-400-SR2D-13HD (2713D) |
|---|---|
| Nozzle | 1.3 HD (high delivery) |
| Air cap | WS-400-03 |
| Type | Compliant (EPA NESHAP 6H) |
| Inlet pressure | 29 psi (2.0 bar) or less |
| Max. working pressure | 145 psi (10 bar) |
| Air consumption | 370 l/min (13.1 cfm) |
| Fluid output | 245 ml/min |
| Fan width | 250 mm (9.8 in) at 150 mm |
| Spray distance | 100–250 mm (4–10 in) |
| Weight | 465 g (16.4 oz), no cup |
| Connections | Air G1/4 male, fluid G1/4 female |
| Digital gauge | DPG-1, CR1632 3 V battery |
| Noise | 83.5 dB(A) |
Related
FAQ
Is this an HVLP gun?
No. Iwata rates the WS-400 Series 2 Clear as compliant, meeting EPA NESHAP 40 CFR Part 63 Subpart 6H at 29 psi or less at the inlet.
What does HD mean?
High delivery. In the Clear range the 1.2 HD is Iwata's "control" size, the 1.3 HD is "standard", the 1.4 HD is "speed" and the 1.5 HD is "high speed".
Can I use it for basecoat?
Iwata makes a separate WS-400 Series 2 Base with its own nozzles and air caps for basecoat. This one is built and rated for clear.
What battery does the gauge take?
A 3 V CR1632 lithium coin cell. Iwata lists a spare battery-holder kit, 930325A0.
Is there a warranty?
ANEST IWATA USA warrants its guns for 12 months from the date of sale by an authorized distributor, covering defective parts. Normal wear and misuse are excluded.
