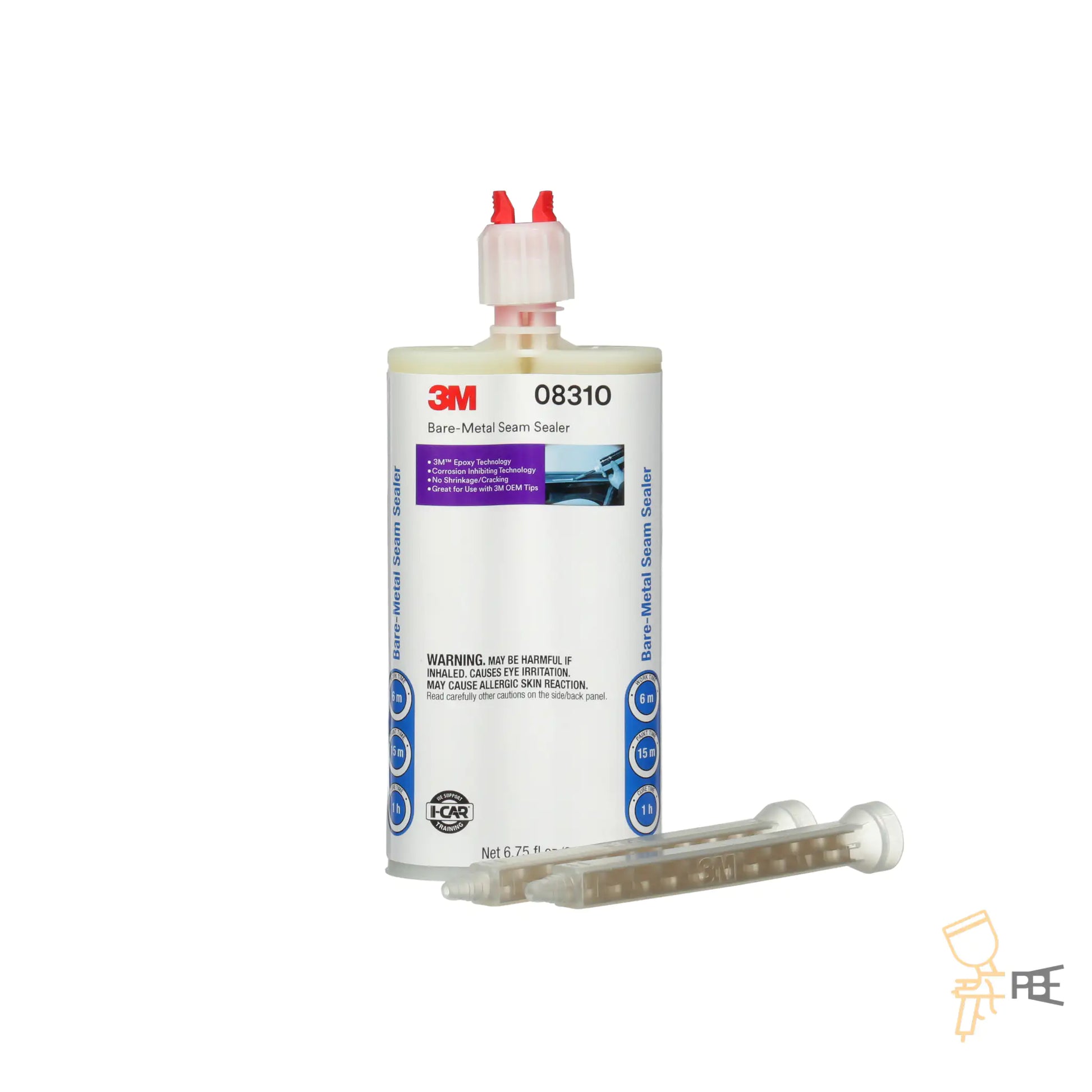

3M Bare-Metal Seam Sealer 08310, 2-Part Epoxy, Beige, 200 mL Cartridge

08310

$42.00
$62.18 $42.00
Sale Sold out
Shipping calculated at checkout.
Newer version available 3M 08522 · OEM Match Epoxy Seam Sealer Beige
  • Ships in 1–2 business days once back in stock
  • Free ground shipping over $425 · $9.99 under
  • 30-day returns on unopened, resalable items

Out of stock

View full details

Specifications

Part number
08310
Brand
3M
UPC
051135083109

Use it for

  • Sealing

Safety data sheet (3M)

A two-part flexible epoxy seam sealer made to go straight onto bare metal. It carries chemical corrosion inhibitors, doesn't sag on vertical seams, and is ready for paint in 15 minutes at 70°F.

Paint time at 70°F
15 min
Work time
10 min
Full cure
1 h
Elongation
125%
Why it works

Seal, protect, paint

  • Bare metal ready. Bonds to bare steel, galvanized steel and aluminum, as well as 2K urethane or epoxy primer and sanded paint.
  • Corrosion inhibitors. Chemical inhibitors are built into the epoxy.
  • Non-sag. Holds its bead on vertical seams.
  • Flexible. 867 psi tensile strength with 125% elongation.
  • Metered mixing. The dual cartridge and static nozzle mix it for you, with no hand mixing.
Tool it on bare metal. 3M says to spread or tool the bead on bare metal so it can't bridge the sand scratches and adheres to the substrate itself.
How to use

Application

  1. Sand bare metal with grade 50–180. Scuff painted surfaces with a Scotch-Brite pad, then clean.
  2. Load the cartridge in an applicator, dispense until both sides flow evenly, and attach a mixing nozzle.
  3. Apply the bead to the seam and tool it into the substrate within the 10-minute work time.
  4. Paint after 15 minutes at 70°F. If it has cured more than 24 hours, scuff it first.
  5. Leave the used nozzle on the cartridge to seal it for next time.
Specifications

Tech specs

Part number 08310
Chemistry 2-part flexible epoxy, 100% solids
Color Beige
Size 200 mL dual cartridge
Work time, 70°F 10 min
Paint time 15 min
Cure 1 h
Service temperature −20 to 180°F
Substrates Bare steel, galvanized steel, aluminum, 2K primers, sanded paint
Do not use over Acid-etch primers
Applicators 3M 08117, 08571 (manual) or 09930 (pneumatic)
Shelf life 24 months unopened
Pairs well with

Related

Quick answers

FAQ

Can it go straight on bare metal?

Yes. That's what it's made for: bare steel, galvanized steel or aluminum sanded with grade 50–180.

When can I paint over it?

After 15 minutes at 70°F. Scuff it first if it has cured more than 24 hours.

Can I use it over etch primer?

No. 3M says acid-etch primers must never be in direct contact with the sealer.

What applicator do I need?

A 200 mL dual cartridge gun: 3M 08117 or 08571 (manual) or 09930 (pneumatic), with a static mixing nozzle.

How long does it keep?

24 months unopened. After use, leave the nozzle on to seal the cartridge.

Manufacturer documents: 08310 TDS (PDF)
