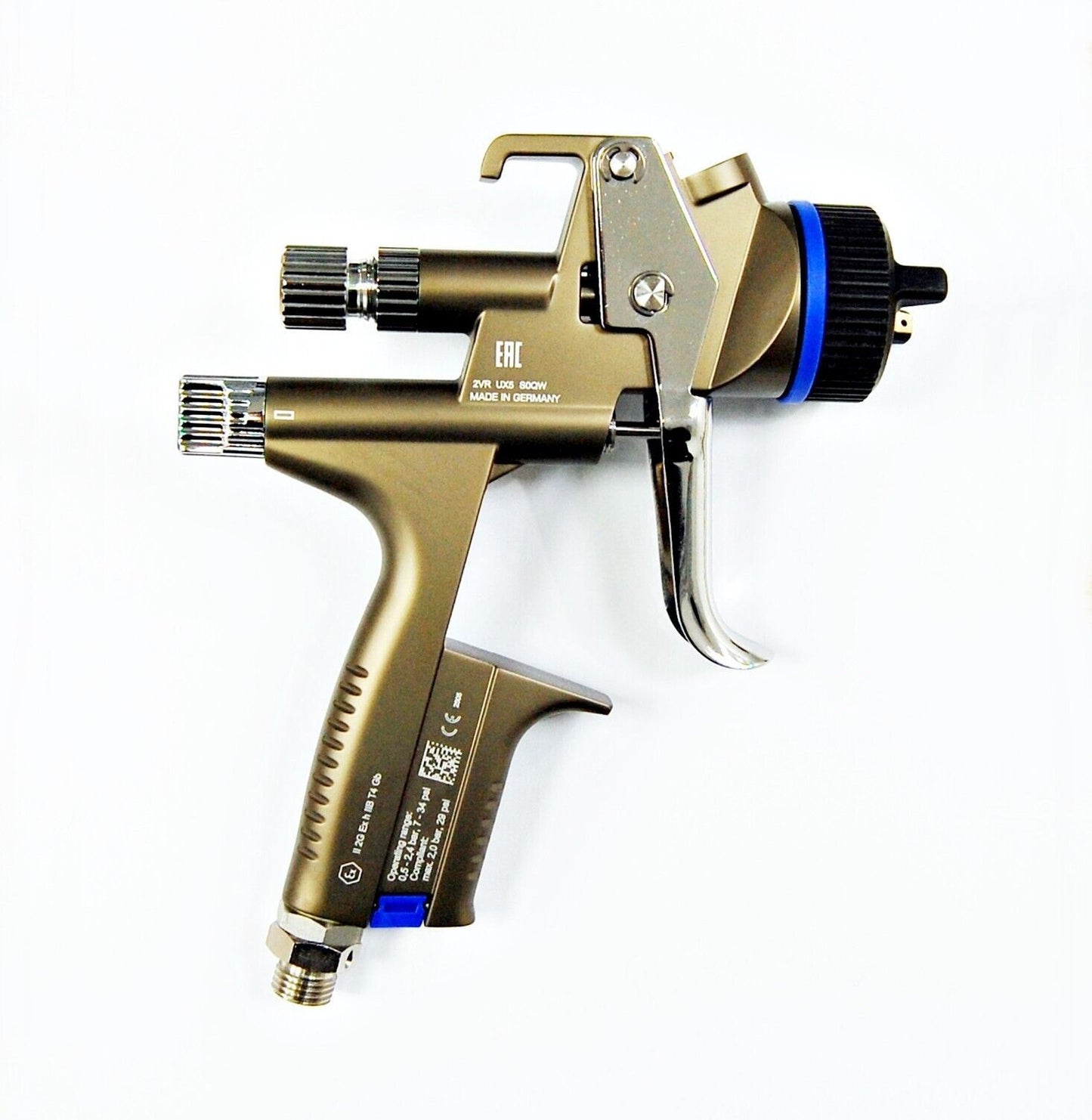

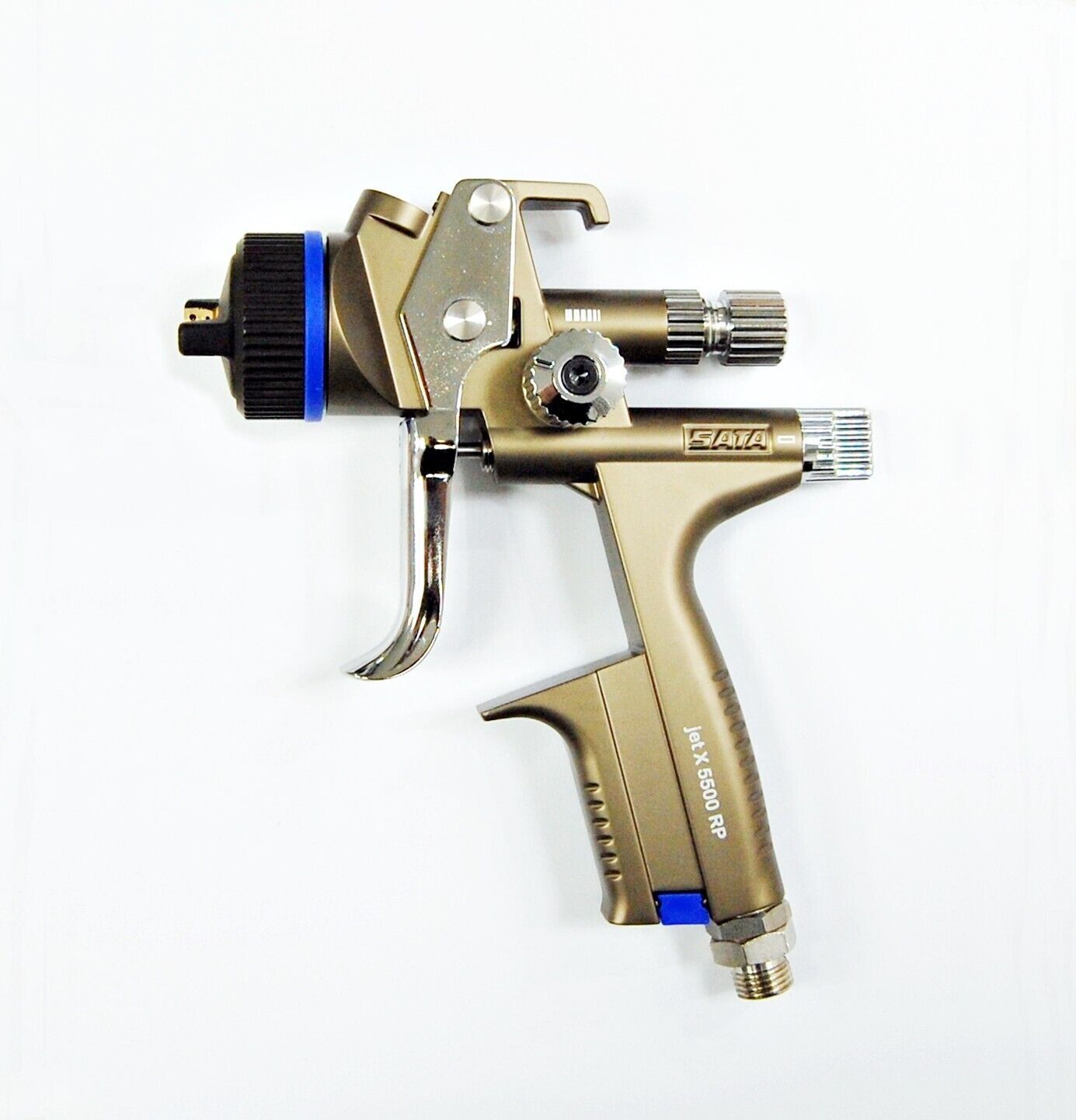

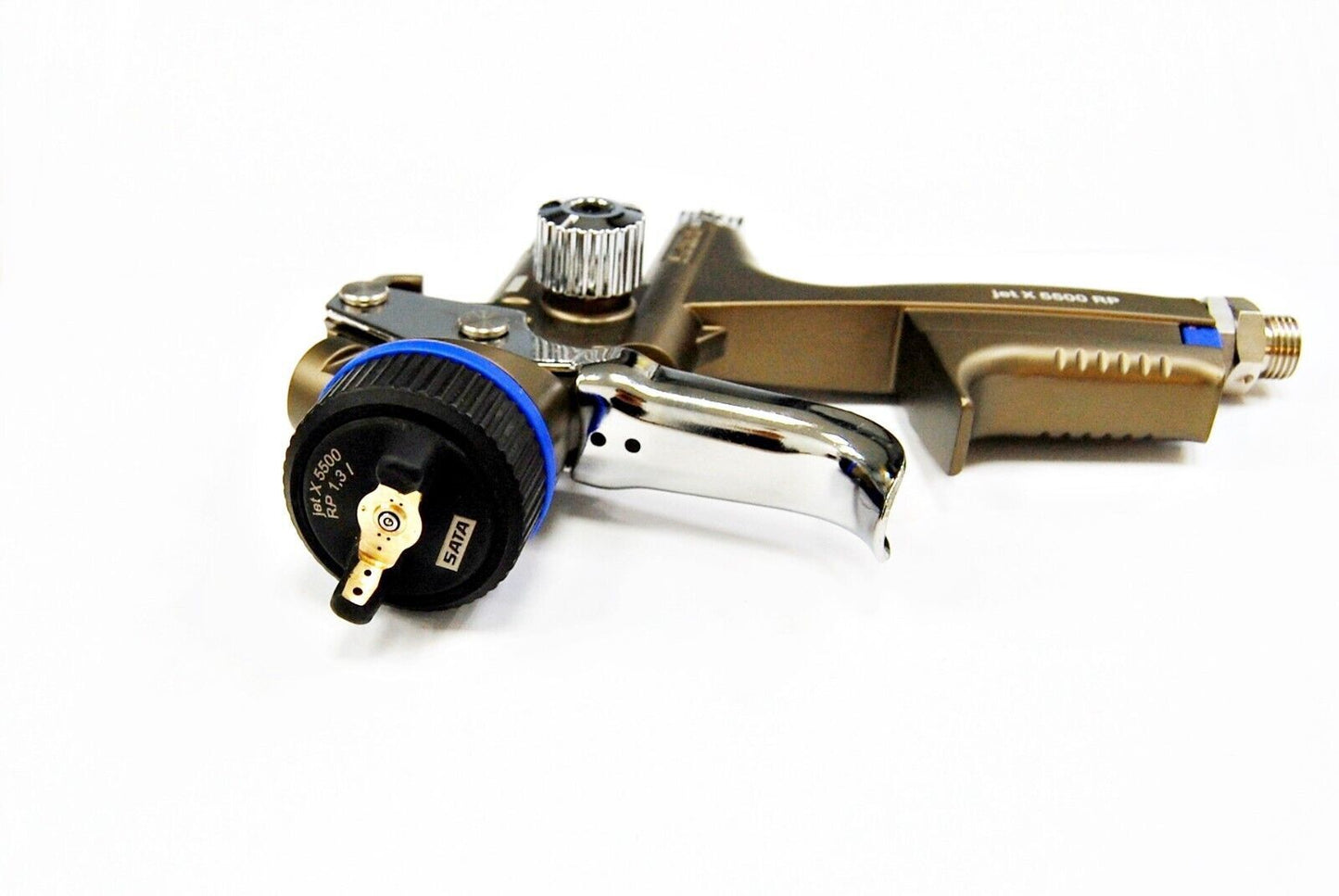

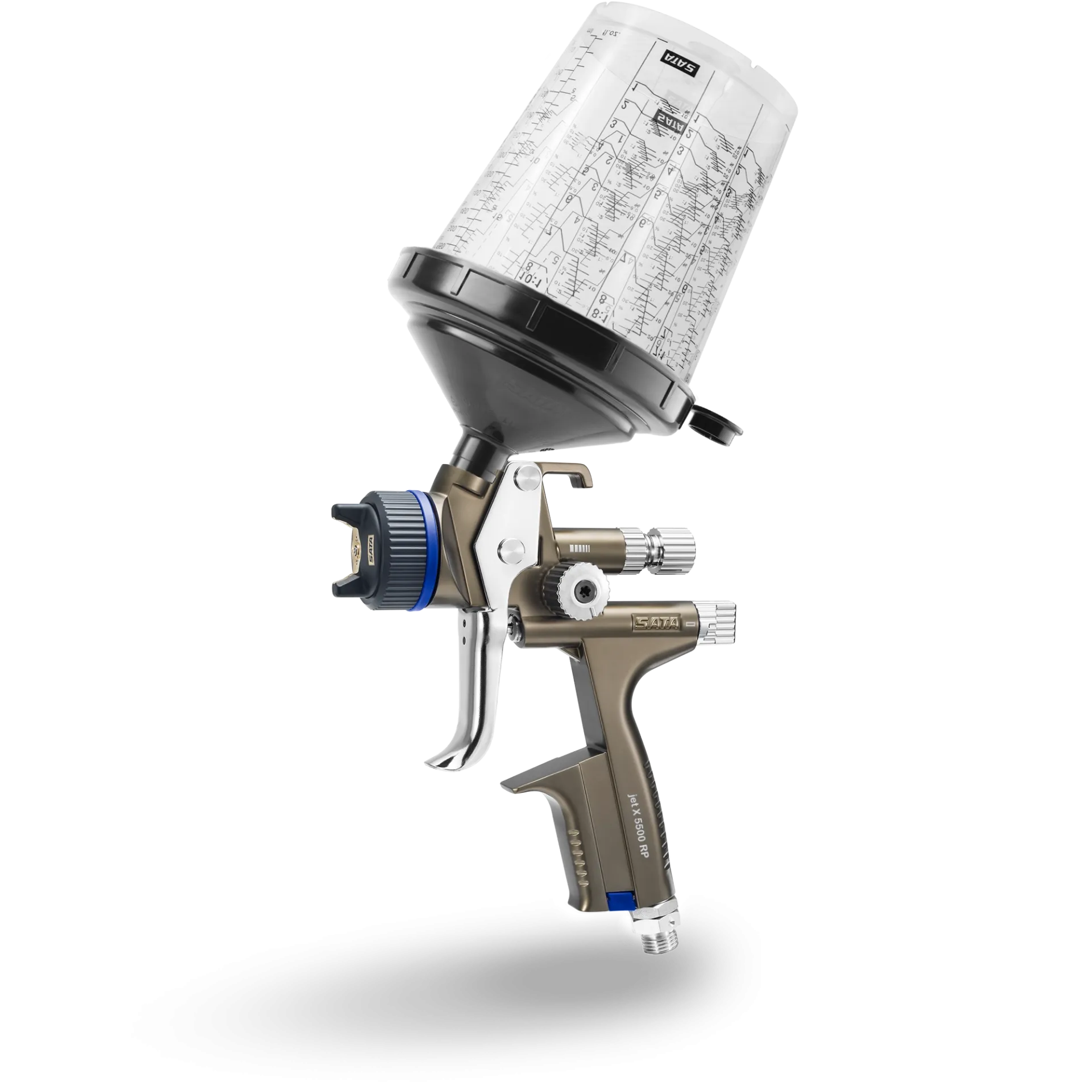

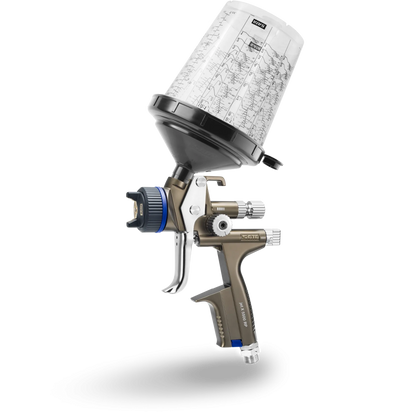

SATAjet X 5500 RP Spray Gun, Standard (Non-Digital) with RPS Cups, 1.2–1.4 mm I/O
SATAjet X 5500 RP Spray Gun, Standard (Non-Digital) with RPS Cups, 1.2–1.4 mm I/O
SKU:1061613
SATA's X-nozzle finish gun in RP, its speed technology. Choose the I nozzle for control or the O nozzle for speed, in 1.2, 1.3 or 1.4 mm. It sprays waterborne and solvent-based paint systems on just 10.2 cfm.
- Recommended inlet pressure
- 29 psi
- Air consumption
- 10.2 cfm
- Spray distance
- 6.7–8.3 in
- Weight with 0.6 L cup
- 19.3 oz
Built for fast, controlled finish work
- X nozzle system. The first SATA gun with I and O nozzle choices in both RP and HVLP. SATA says it copes with all paint systems and application recommendations.
- Easy on air. 10.2 cfm at 29 psi, a third less than the HVLP version.
- Whispering nozzle. SATA says its flow geometry noticeably reduces noise.

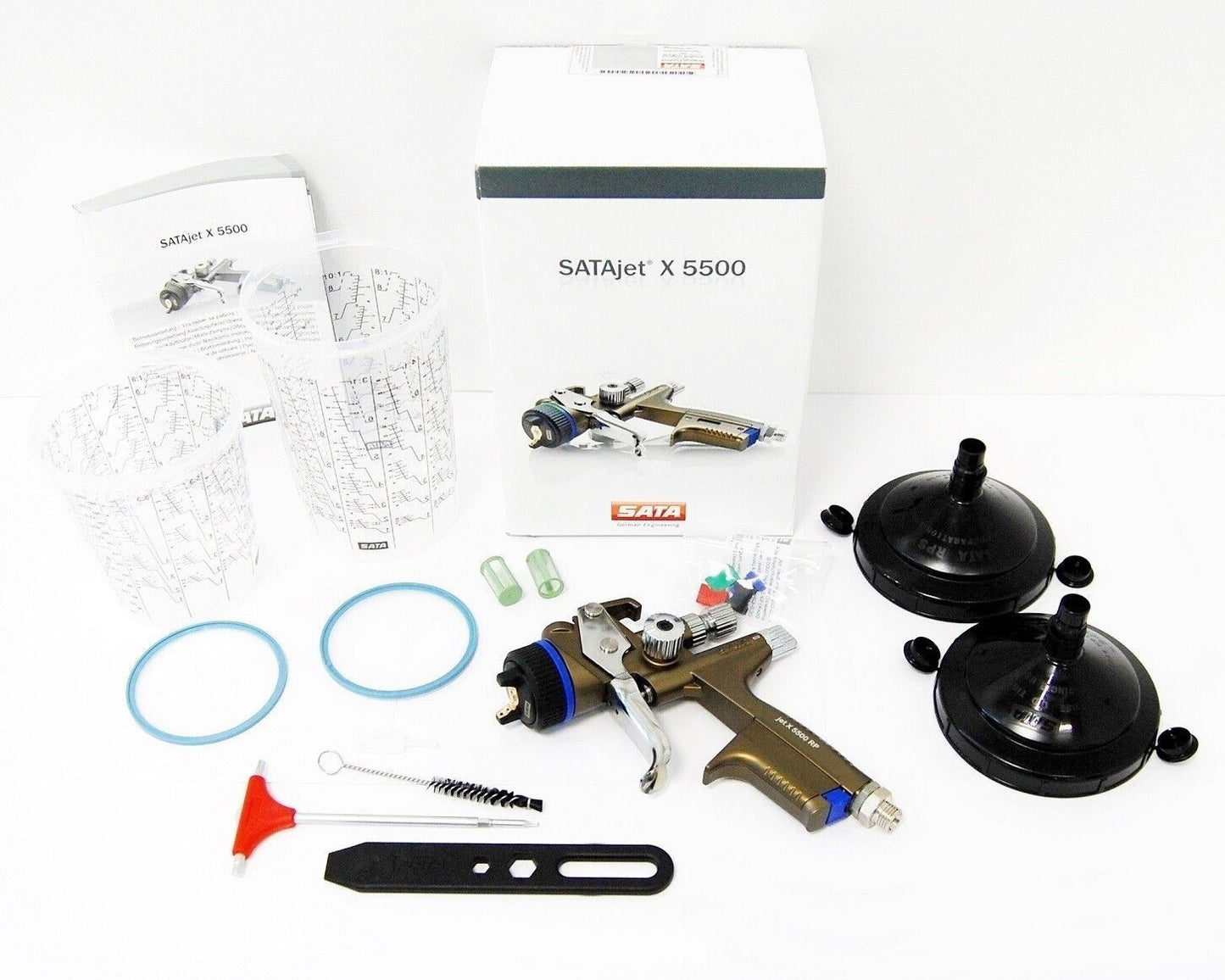

- Ready to spray. It ships with RPS 0.6 L and 0.9 L cups on the QCC quick-change connection.
Pick your fan: I (Control) or O (Speed)
- I nozzle. A parallel, elongated fan with a minimal dry zone and a drier center, for maximum control. It builds slightly less film per coat.
- O nozzle. An oval fan with a wet core and a larger fade-out zone, for higher application speed.
- Size is flow, not fan width. Going from 1.2 to 1.4 mm moves more material. Match it to your coating maker's data sheet.
How to set it up
- Run an antistatic, solvent-resistant hose with at least a 9 mm (about 3/8 in) inside diameter, and filter your air. SATA specifies both in the manual.
- Fill the cup no higher than 20 mm (about 3/4 in) below the rim and lock it onto the QCC connection.
- Open the material flow control and the air micrometer fully. Then pull the trigger all the way and set 2.0 bar (29 psi) at the gun inlet. A SATA adam 2 or a gun-mounted gauge is more accurate than the wall regulator.
- Spray from 17–21 cm (6.7–8.3 in). Pull the trigger fully on every pass.
- Clean it nozzle-down with a neutral cleaner (pH 6–8), keeping air flowing through the gun. Never soak it and never use an ultrasonic cleaner. Blow it dry when you're done.
Tech specs
| Technology | RP |
|---|---|
| Nozzles sold here | 1.2, 1.3, 1.4 mm in I or O |
| Recommended inlet pressure | 2.0 bar (29 psi) |
| Operating range | 0.5–2.4 bar (7–35 psi) |
| Air consumption | 290 Nl/min (10.2 cfm) at 2.0 bar |
| Recommended spray distance | 17–21 cm (6.7–8.3 in) |
| Pressure reading | None on the gun; air micrometer fitted, adam 2–ready |
| Weight with 0.6 L RPS cup | 548 g (19.3 oz) |
| Air connection | 1/4 in male thread, swivel joint |
| Cup connection | QCC |
| Included cups (per SATA) | RPS 0.6 L and 0.9 L |
| Max. material temperature | 50 °C (122 °F) |
Which SATA is right for you?
| Gun | Best for | Key numbers |
|---|---|---|
| X 5500 RP Standard (this gun) | Fast basecoat and clear; set pressure at the regulator | RP · 10.2 cfm · 6.7–8.3 in |
| X 5500 RP DIGITAL | Same RP gun with a pressure gauge in the handle | RP · 10.2 cfm · ±1 psi gauge |
| X 5500 HVLP Standard | Highest transfer efficiency, at a closer distance | HVLP · 15.2 cfm · 3.9–5.9 in |
| X 5500 HVLP DIGITAL | HVLP with the in-handle pressure gauge | HVLP · 15.2 cfm · ±1 psi gauge |
| 1500 B SoLV | Solvent base, sealer and clear; lower cost of entry | RP or HVLP · 1.3 / 1.4 mm only |
Related
FAQ
RP or HVLP: why RP?
SATA calls RP "the Extra-Fast": high-pressure technology for maximum working speed with VOC-compliant transfer rates. HVLP is "the Extra-Efficient": low-pressure technology for particularly high transfer rates. It needs more air and a closer spray distance.
How big a compressor do I need?
The gun alone uses 10.2 cfm (at 29 psi inlet). Size for that delivered air plus headroom for your hose, filters and anything else running. SATA also specifies a hose with at least 9 mm (3/8 in) inside diameter.
What comes with it?

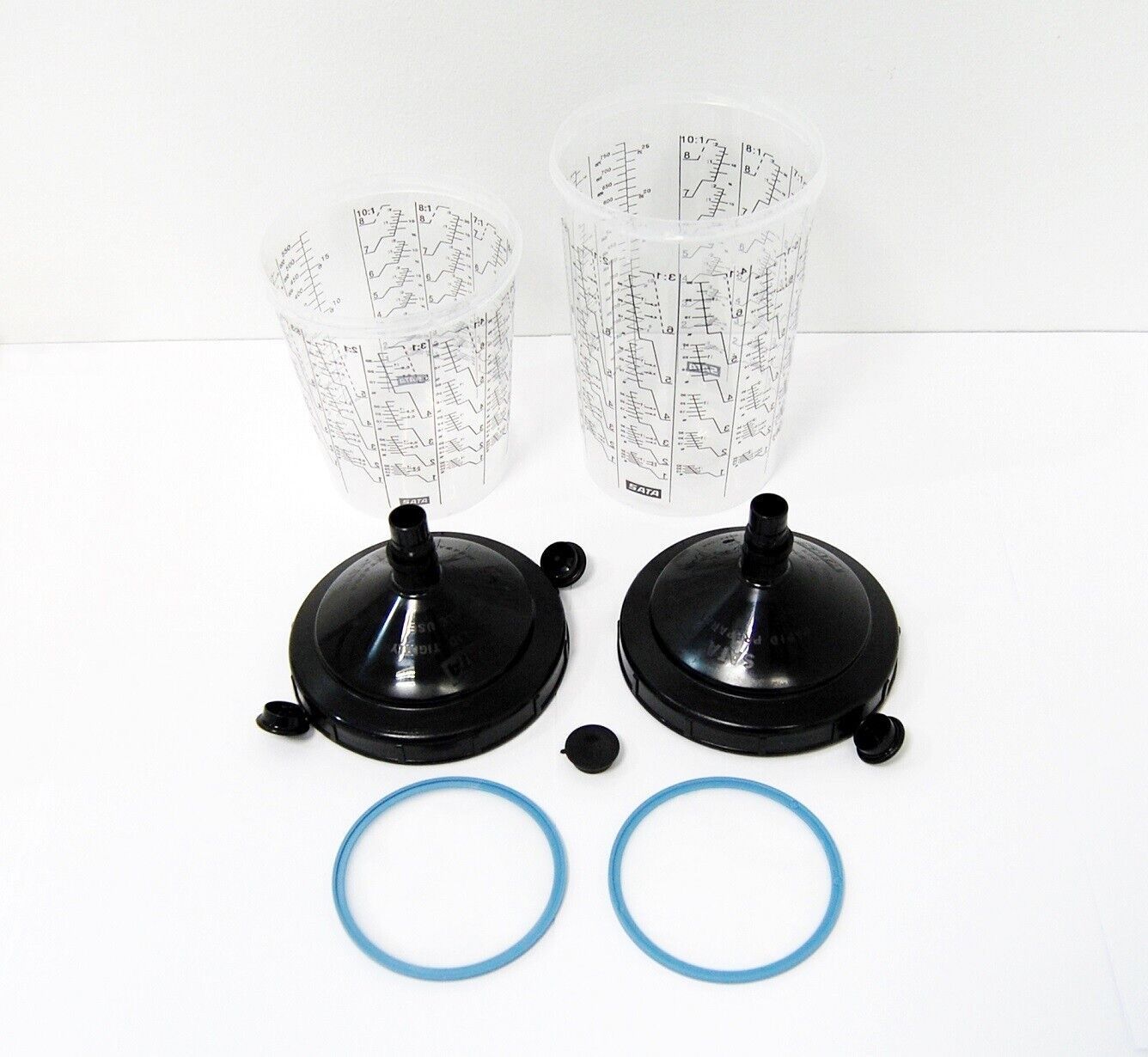

SATA lists the gun with two RPS multi-purpose cups, one 0.6 L and one 0.9 L.
Does it spray waterborne?
Yes. SATA lists the X 5500 for water-based and solvent-based paint systems. Follow your paint maker's data sheet for the nozzle size.
Is there a warranty?
SATA offers a free extension to 3 years on spray guns through its Premium Warranty, which you activate online with the gun's serial number. It covers material and manufacturing defects. Wear parts and electronic components are excluded.
Manufacturer documents: X 5500 operating manual (PDF)SATA X 5500 product pageX 5500 leaflet (PDF)SATA Premium Warranty
