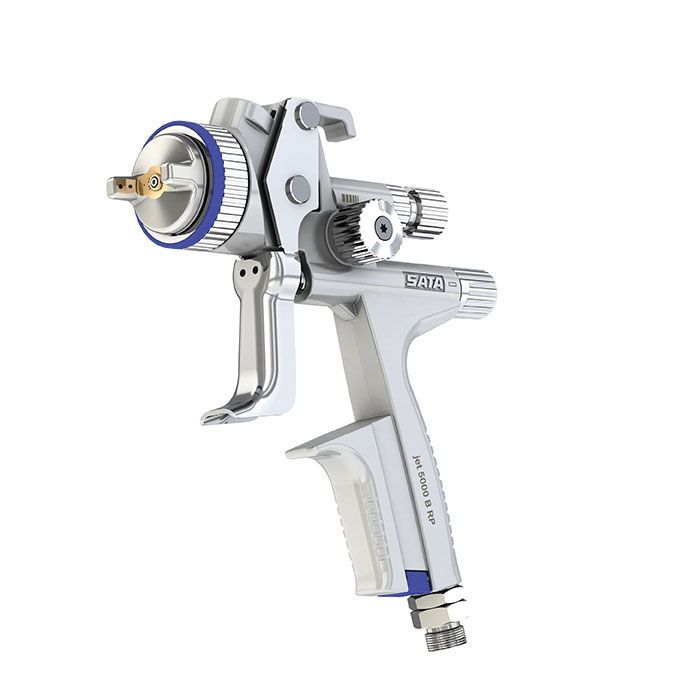

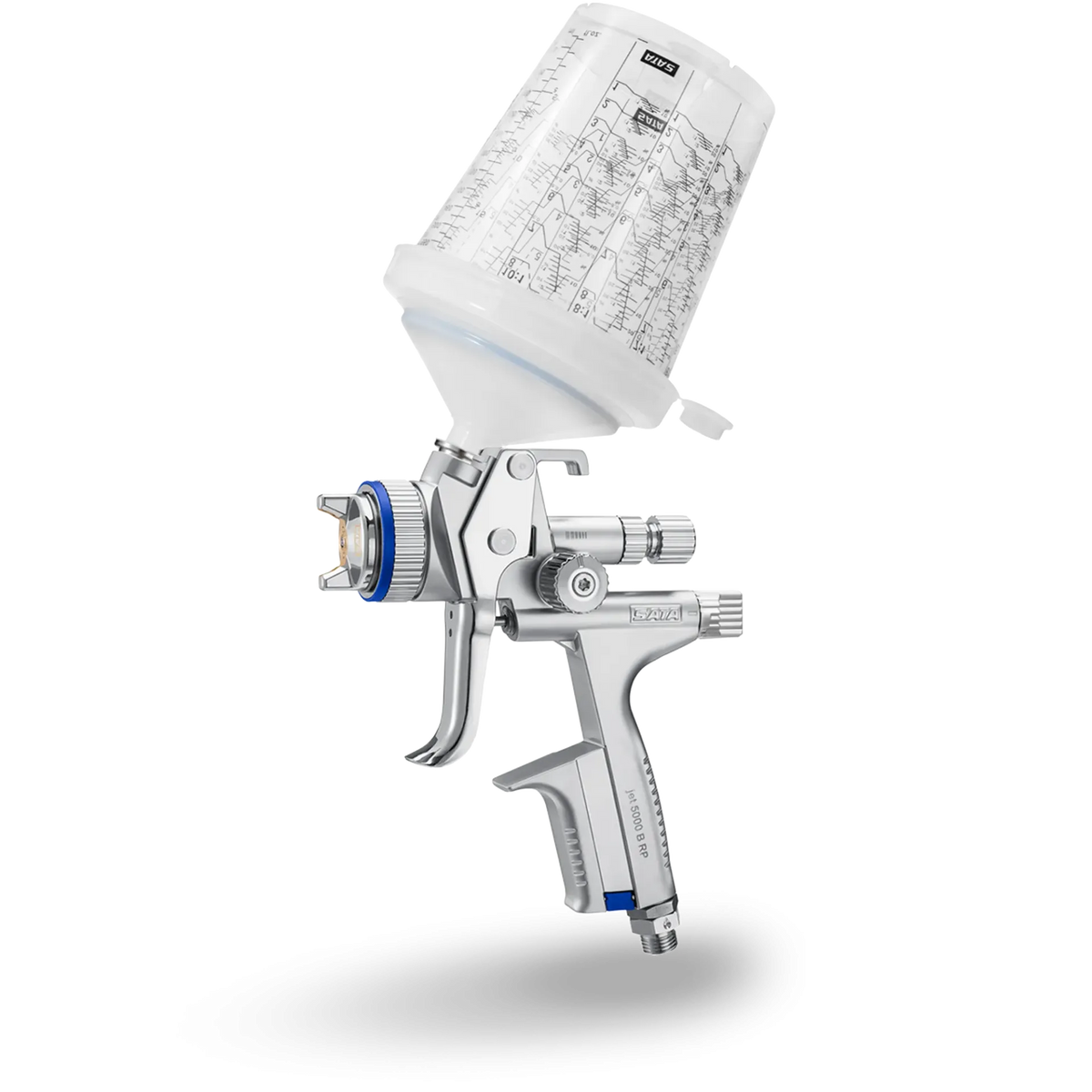

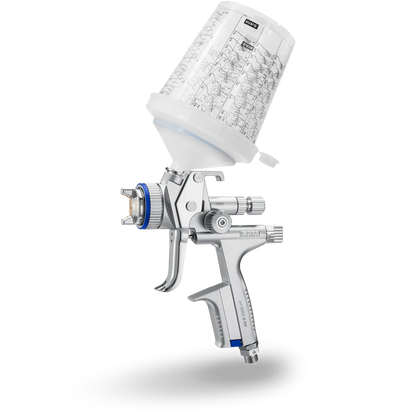

SATAjet 5000 B RP Spray Gun with RPS Cups, 1.2–1.4 mm Nozzle
SATAjet 5000 B RP Spray Gun with RPS Cups, 1.2–1.4 mm Nozzle
SKU:209858
SATA's adjustable premium RP gun, built so you can tune inlet pressure and spray distance to the paint, the weather and how you spray. SATA lists it with three RPS cups and a swivel joint. Choose 1.2, 1.3 or 1.4 mm.
- Recommended inlet pressure
- 29 psi
- Air consumption
- 10.2 cfm
- Spray distance
- 6.7–8.3 in
- RPS cups included
- 3
SATA's adjustable premium platform
- Tune it to the job. SATA designed the 5000 B so painters can adjust inlet pressure and spray distance to the paint, the climate and their own style.
- Half-turn fan control. SATA's optimized round/flat fan control goes from round to flat in half a turn.
- Easy to clean. SATA's Perloxal surface.
- Three cups and a swivel joint. SATA lists RPS 0.3, 0.6 and 0.9 L cups (one of each) with a swivel air joint.
How to set it up
- Run an antistatic, solvent-resistant hose with at least a 9 mm (about 3/8 in) inside diameter, and filter your air. SATA specifies both in the manual.
- Fill the cup no higher than 20 mm (about 3/4 in) below the rim and lock it onto the QCC connection.
- Open the material flow control and the air micrometer fully. Then pull the trigger all the way and set 2.0 bar (29 psi) at the gun inlet.
- Spray from 17–21 cm (6.7–8.3 in). Pull the trigger fully on every pass.
- Clean it nozzle-down with a neutral cleaner (pH 6–8), keeping air flowing through the gun. Never soak it and never use an ultrasonic cleaner. Blow it dry when you're done.
Tech specs
| Technology | RP |
|---|---|
| Nozzles sold here | 1.2, 1.3, 1.4 mm |
| Recommended inlet pressure | 2.0 bar (29 psi) |
| Operating range | 0.5–2.4 bar (7–35 psi) |
| Air consumption | 290 Nl/min (10.2 cfm) |
| Recommended spray distance | 17–21 cm (6.7–8.3 in) |
| Weight with 0.6 L RPS cup | 528 g (18.6 oz) |
| Air connection | 1/4 in male thread, swivel joint |
| Cup connection | QCC |
| Included cups (per SATA) | RPS 0.3, 0.6, 0.9 L |
| Pressure reading | Air micrometer; adam 2 digital gauge optional |
Which SATA is right for you?
| Gun | Best for | Key numbers |
|---|---|---|
| X 5500 RP Standard | Fast basecoat and clear; set pressure at the regulator | RP · 10.2 cfm · 6.7–8.3 in |
| X 5500 RP DIGITAL | Same RP gun with a pressure gauge in the handle | RP · 10.2 cfm · ±1 psi gauge |
| X 5500 HVLP Standard | Highest transfer efficiency, at a closer distance | HVLP · 15.2 cfm · 3.9–5.9 in |
| X 5500 HVLP DIGITAL | HVLP with the in-handle pressure gauge | HVLP · 15.2 cfm · ±1 psi gauge |
| 1500 B SoLV | Solvent base, sealer and clear; lower cost of entry | RP or HVLP · 1.3 / 1.4 mm only |
| 5000 B RP (this gun) | Proven adjustable platform | RP · 10.2 cfm |
Related
FAQ
5000 B or X 5500?
They run on the same air and the same distances. The X 5500 adds SATA's X nozzle system, with I (control) or O (speed) fans. SATA says it no longer needs the air distribution insert.
How big a compressor do I need?
The gun uses 10.2 cfm at 29 psi. Add headroom for your hose, filters and other tools. SATA specifies a hose with at least 9 mm (3/8 in) inside diameter.
What comes with it?
SATA lists the gun with RPS multi-purpose cups in 0.3, 0.6 and 0.9 L (one of each) and a swivel joint.
Is there a warranty?
SATA offers a free extension to 3 years on spray guns through its Premium Warranty, which you activate online with the gun's serial number. It covers material and manufacturing defects. Wear parts and electronic components are excluded.
Manufacturer documents: 5000 B operating manual (PDF)SATA 5000 B product pageSATA Premium Warranty
