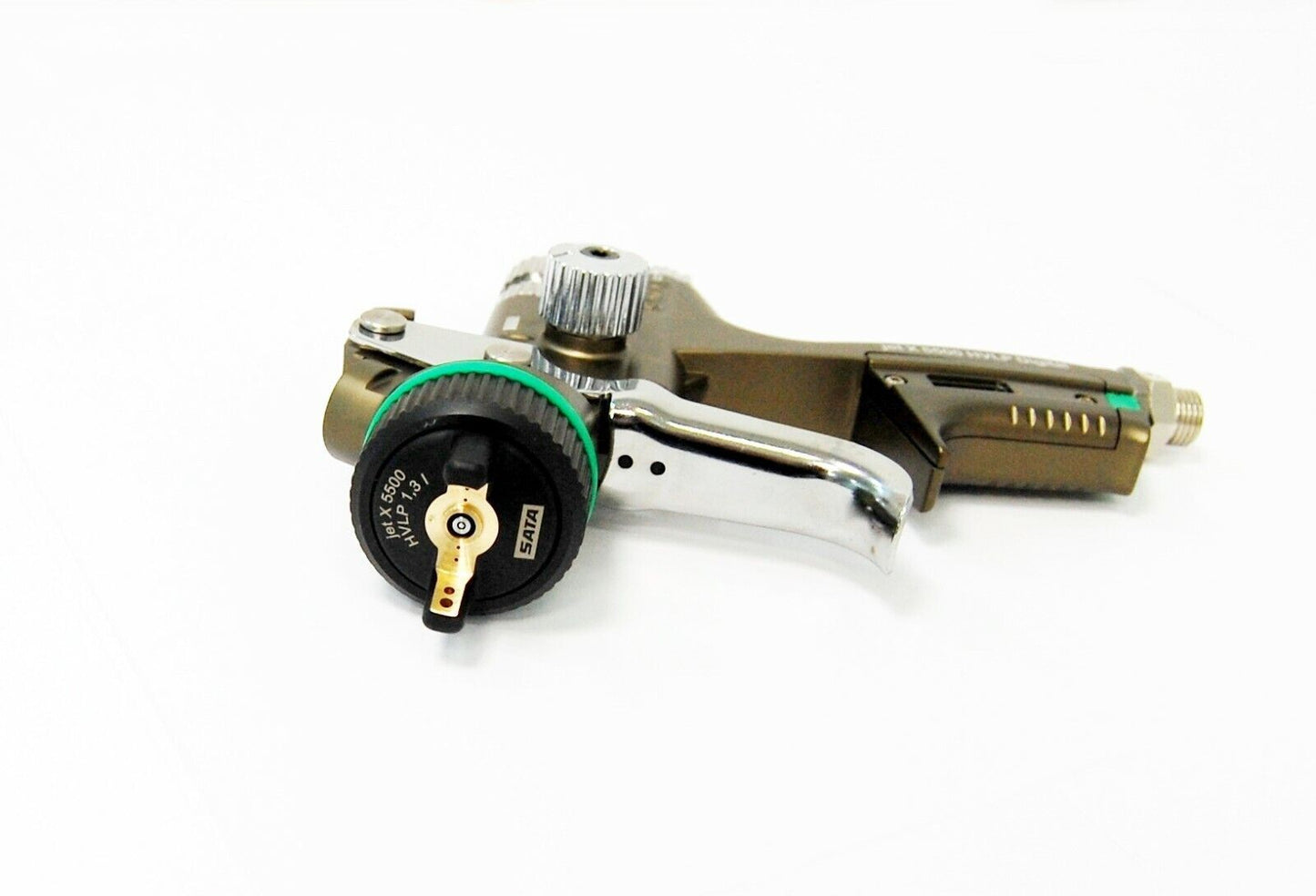

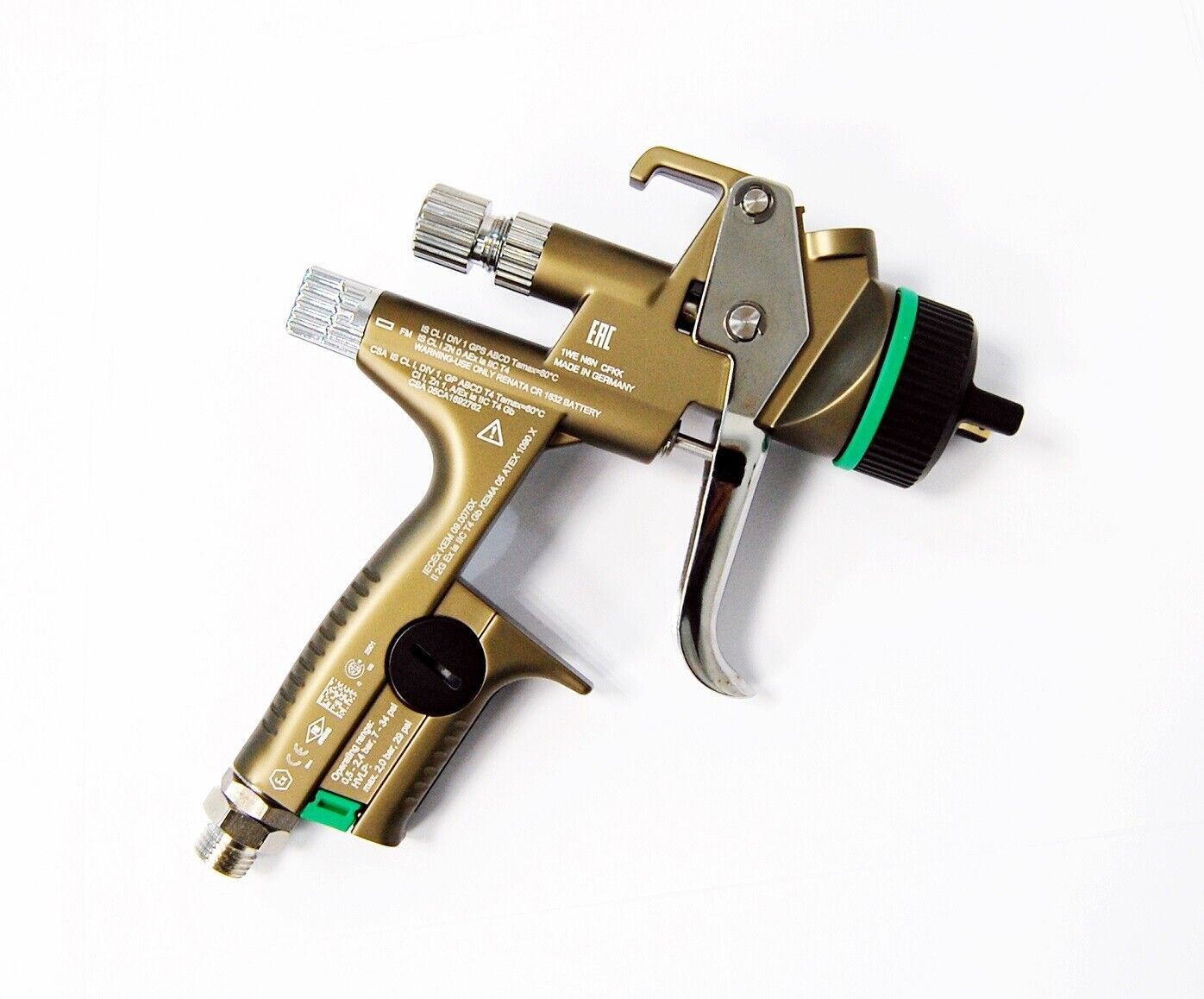

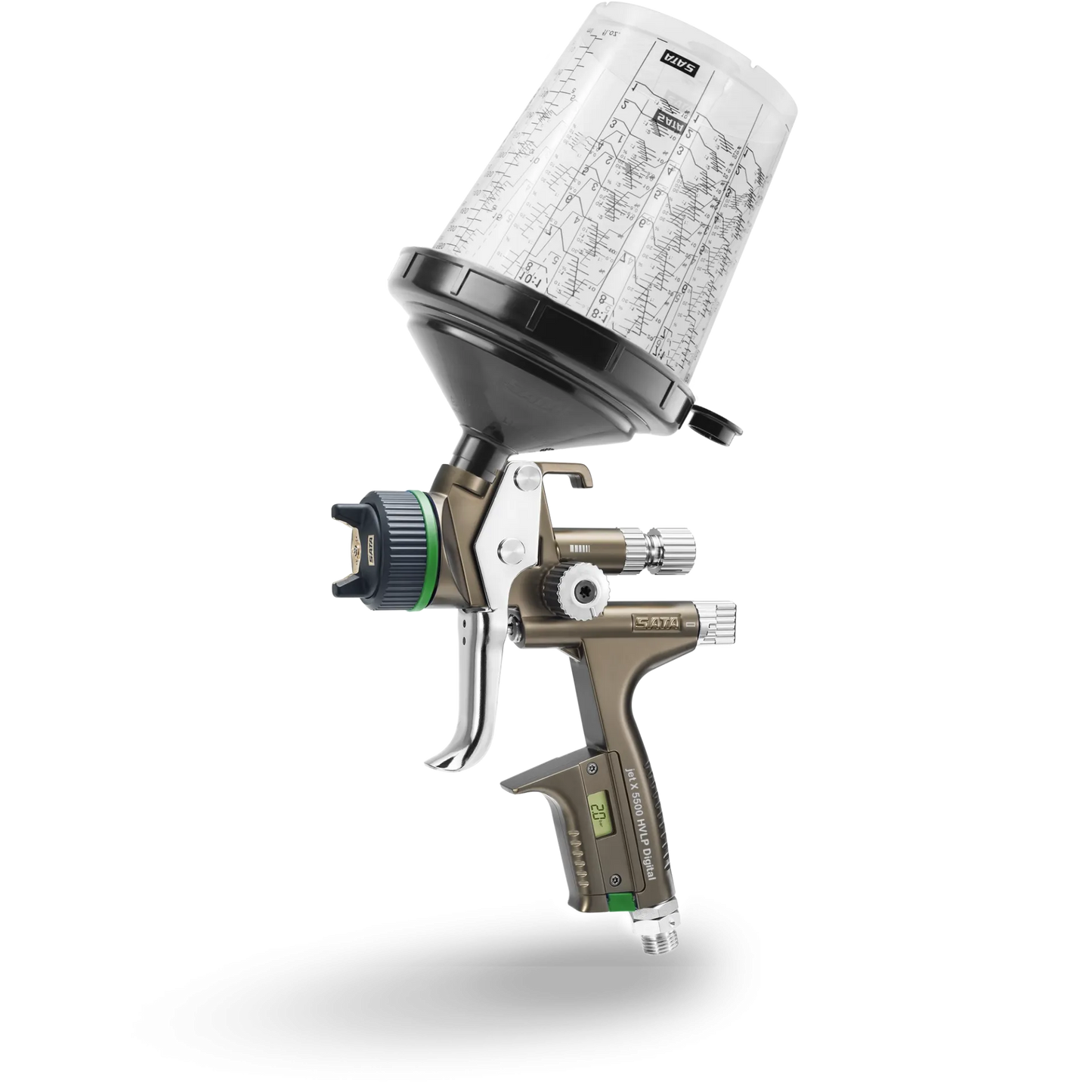

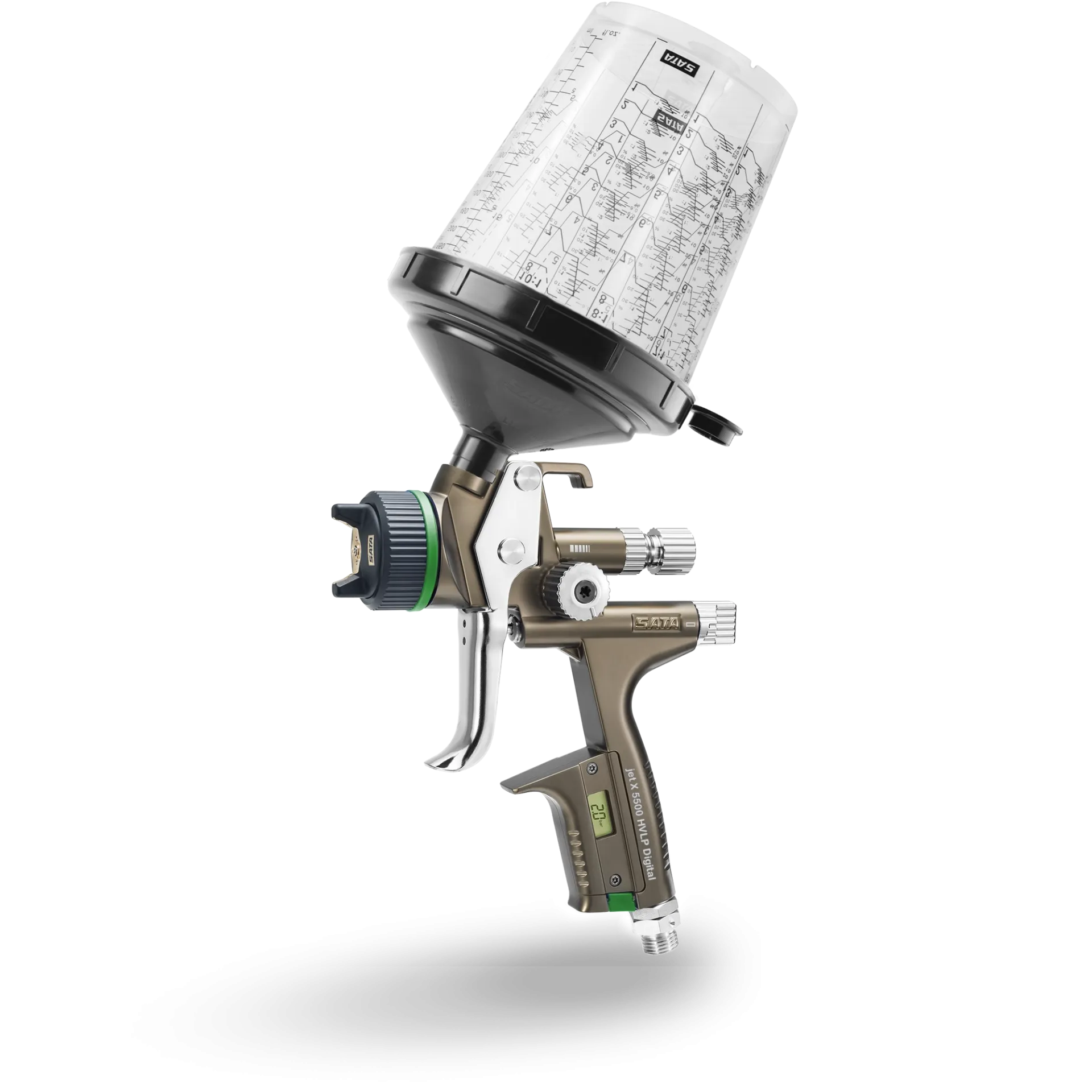

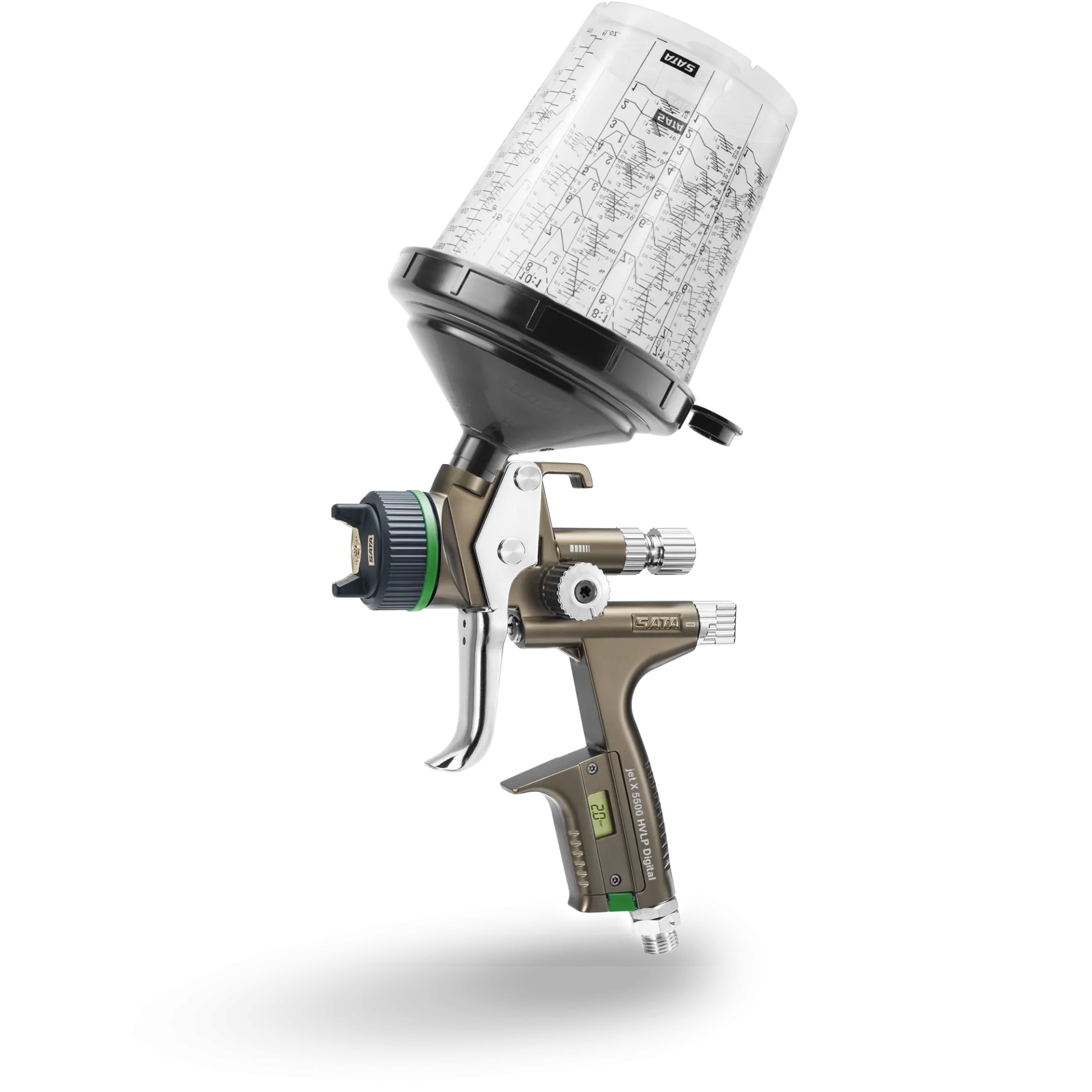

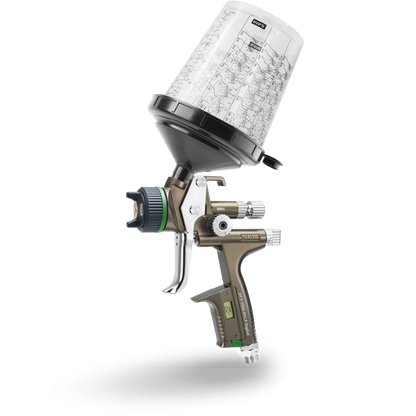

SATAjet X 5500 HVLP DIGITAL Spray Gun with RPS Cups, 1.2–1.4 mm I/O Nozzle
SATAjet X 5500 HVLP DIGITAL Spray Gun with RPS Cups, 1.2–1.4 mm I/O Nozzle
SKU:1061986
HVLP transfer efficiency plus a digital pressure gauge in the handle. Set 29 psi at the gun to ±1 psi and get the same atomization every time. Choose the I nozzle for control or the O nozzle for speed.
- Gauge accuracy
- ±1 psi
- Air consumption
- 15.2 cfm
- Spray distance
- 3.9–5.9 in
- Weight with 0.6 L cup
- 19.4 oz
Efficient and repeatable
- HVLP transfer. SATA's "Extra-Efficient" technology for particularly high transfer rates.

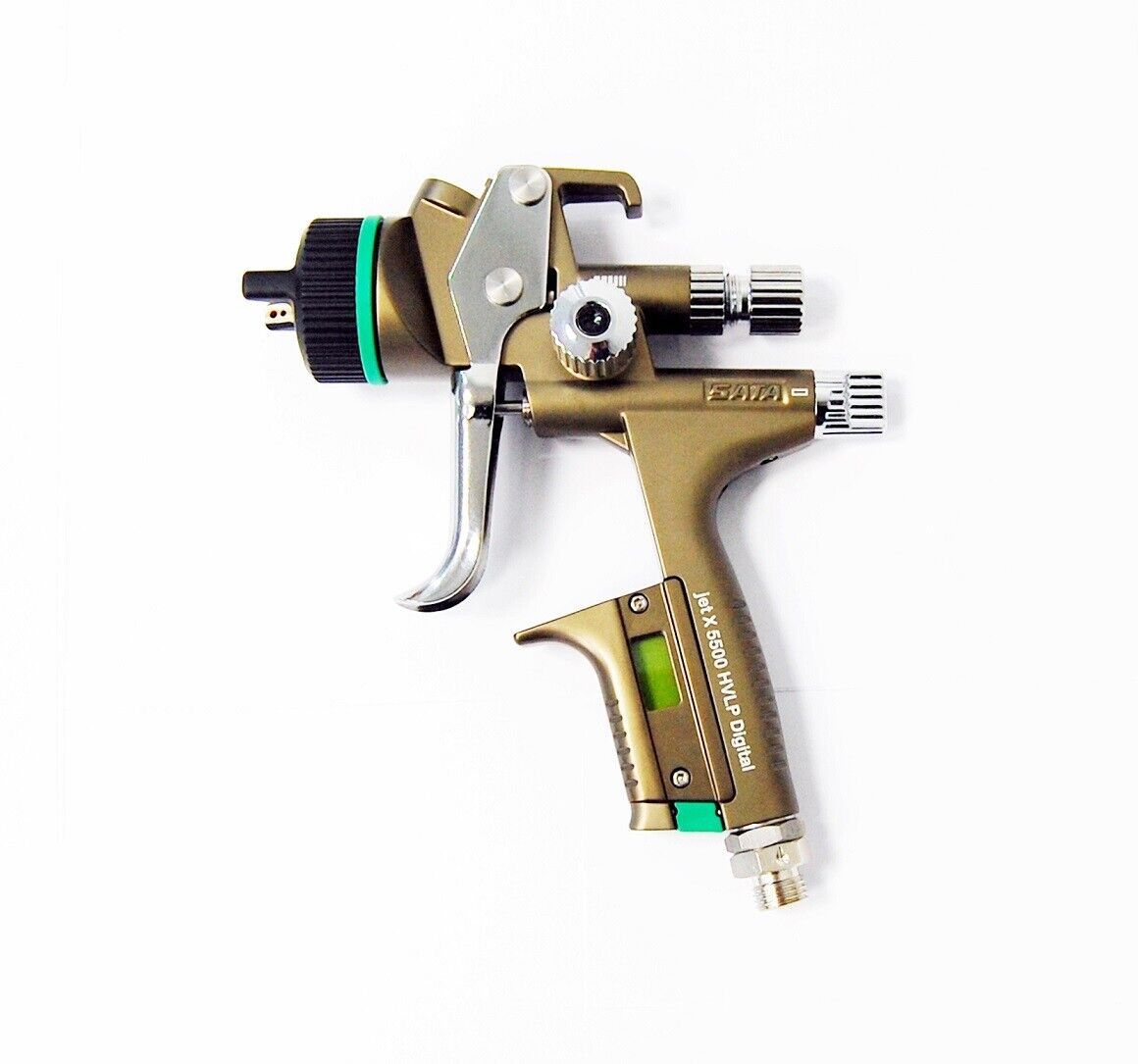

- Gauge in the handle. It shows actual inlet pressure, which is what HVLP atomization depends on.
- X nozzle system. I nozzles for control, O nozzles for speed. It sprays water- or solvent-based basecoats and 1K/2K clears.

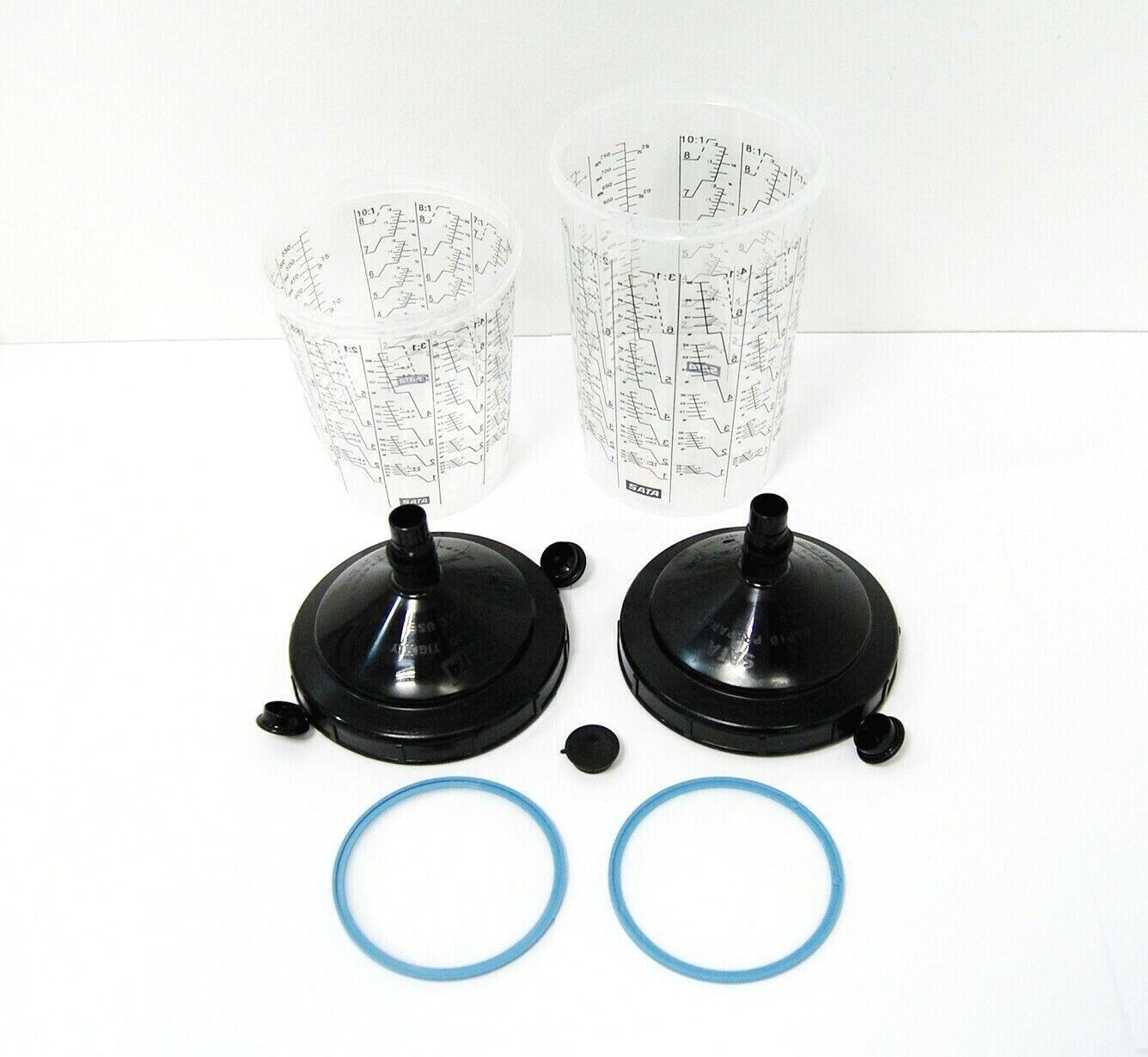

- Ready to spray. It ships with RPS 0.6 L and 0.9 L cups on the QCC connection.
Pick your fan: I (Control) or O (Speed)
- I nozzle. A parallel, elongated fan with a minimal dry zone and a drier center, for maximum control. It builds slightly less film per coat.
- O nozzle. An oval fan with a wet core and a larger fade-out zone, for higher application speed.
- Size is flow, not fan width. Going from 1.2 to 1.4 mm moves more material. Match it to your coating maker's data sheet.
How to set it up
- Run an antistatic, solvent-resistant hose with at least a 9 mm (about 3/8 in) inside diameter, and filter your air. SATA specifies both in the manual.
- Fill the cup no higher than 20 mm (about 3/4 in) below the rim and lock it onto the QCC connection.
- Open the material flow control and the air micrometer fully. Then pull the trigger all the way and read the handle display while you set 2.0 bar (29 psi).
- Spray from 10–15 cm (3.9–5.9 in). That's closer than RP, so reset your distance if you're switching. Pull the trigger fully on every pass.
- Clean it nozzle-down with a neutral cleaner (pH 6–8), keeping air flowing through the gun. Never soak it and never use an ultrasonic cleaner. Blow it dry when you're done.
Tech specs
| Technology | HVLP |
|---|---|
| Nozzles sold here | 1.2, 1.3, 1.4 mm I; 1.3, 1.4 mm O |
| Recommended inlet pressure | 2.0 bar (29 psi) |
| Operating range | 0.5–2.4 bar (7–35 psi) |
| Air consumption | 430 Nl/min (15.2 cfm) at 2.0 bar |
| Recommended spray distance | 10–15 cm (3.9–5.9 in) |
| Pressure reading | Digital gauge in the handle, ±1 psi, CR1632 battery |
| Weight with 0.6 L RPS cup | 550 g (19.4 oz) |
| Air connection | 1/4 in male thread, swivel joint |
| Cup connection | QCC |
| Included cups (per SATA) | RPS 0.6 L and 0.9 L |
| Max. material temperature | 50 °C (122 °F) |
Which SATA is right for you?
| Gun | Best for | Key numbers |
|---|---|---|
| X 5500 RP Standard | Fast basecoat and clear; set pressure at the regulator | RP · 10.2 cfm · 6.7–8.3 in |
| X 5500 RP DIGITAL | Same RP gun with a pressure gauge in the handle | RP · 10.2 cfm · ±1 psi gauge |
| X 5500 HVLP Standard | Highest transfer efficiency, at a closer distance | HVLP · 15.2 cfm · 3.9–5.9 in |
| X 5500 HVLP DIGITAL (this gun) | HVLP with the in-handle pressure gauge | HVLP · 15.2 cfm · ±1 psi gauge |
| 1500 B SoLV | Solvent base, sealer and clear; lower cost of entry | RP or HVLP · 1.3 / 1.4 mm only |
Related
FAQ
RP or HVLP: why HVLP?
SATA calls RP "the Extra-Fast": high-pressure technology for maximum working speed with VOC-compliant transfer rates. HVLP is "the Extra-Efficient": low-pressure technology for particularly high transfer rates. It needs more air and a closer spray distance.
How big a compressor do I need?
The gun alone uses 15.2 cfm (at 29 psi inlet). Size for that delivered air plus headroom for your hose, filters and anything else running. SATA also specifies a hose with at least 9 mm (3/8 in) inside diameter.

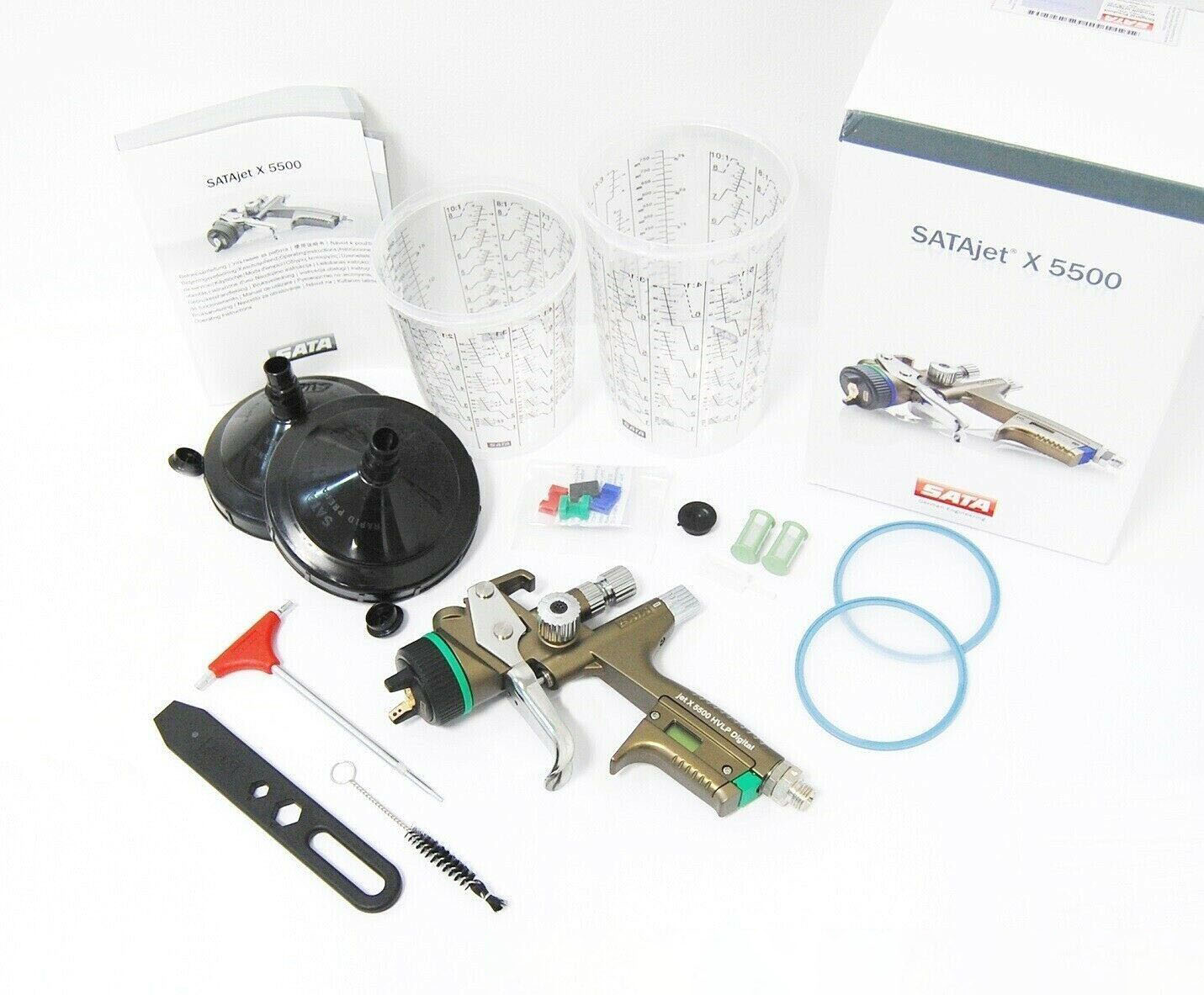

What comes with it?

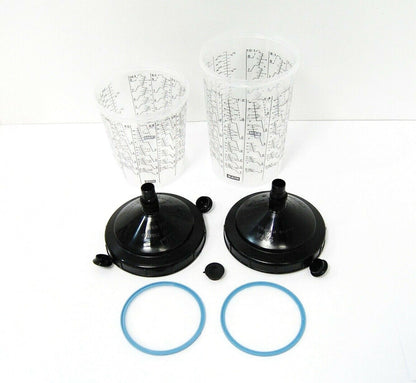

SATA lists the gun with two RPS multi-purpose cups, one 0.6 L and one 0.9 L.
What battery does the gauge use?
One Renata CR1632. SATA says it lasts 1–3 years and gives a low-battery warning several weeks ahead. The gauge reads to ±1 psi.
Is there a warranty?
SATA offers a free extension to 3 years on spray guns through its Premium Warranty, which you activate online with the gun's serial number. It covers material and manufacturing defects. Wear parts and electronic components are excluded.
Manufacturer documents: X 5500 operating manual (PDF)SATA X 5500 product pageX 5500 leaflet (PDF)SATA Premium Warranty
