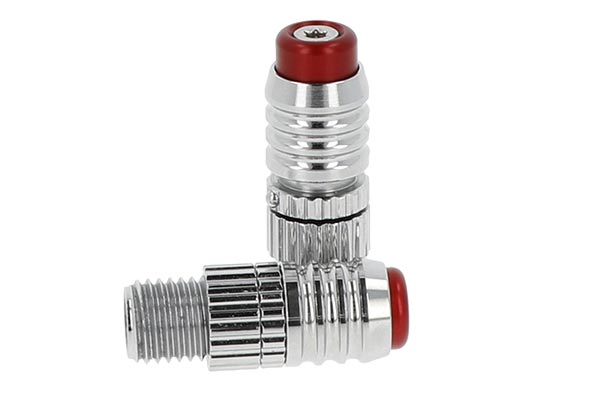

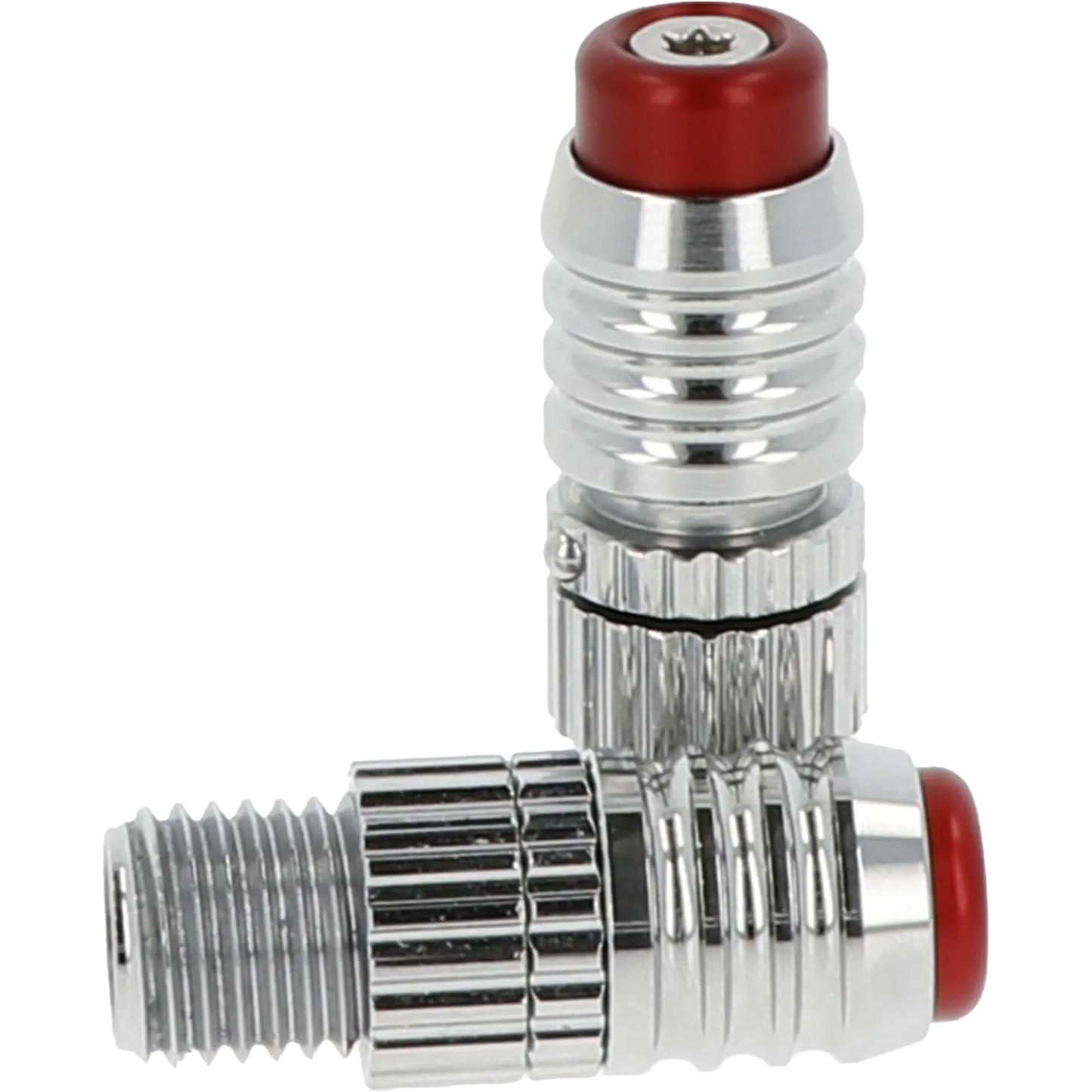

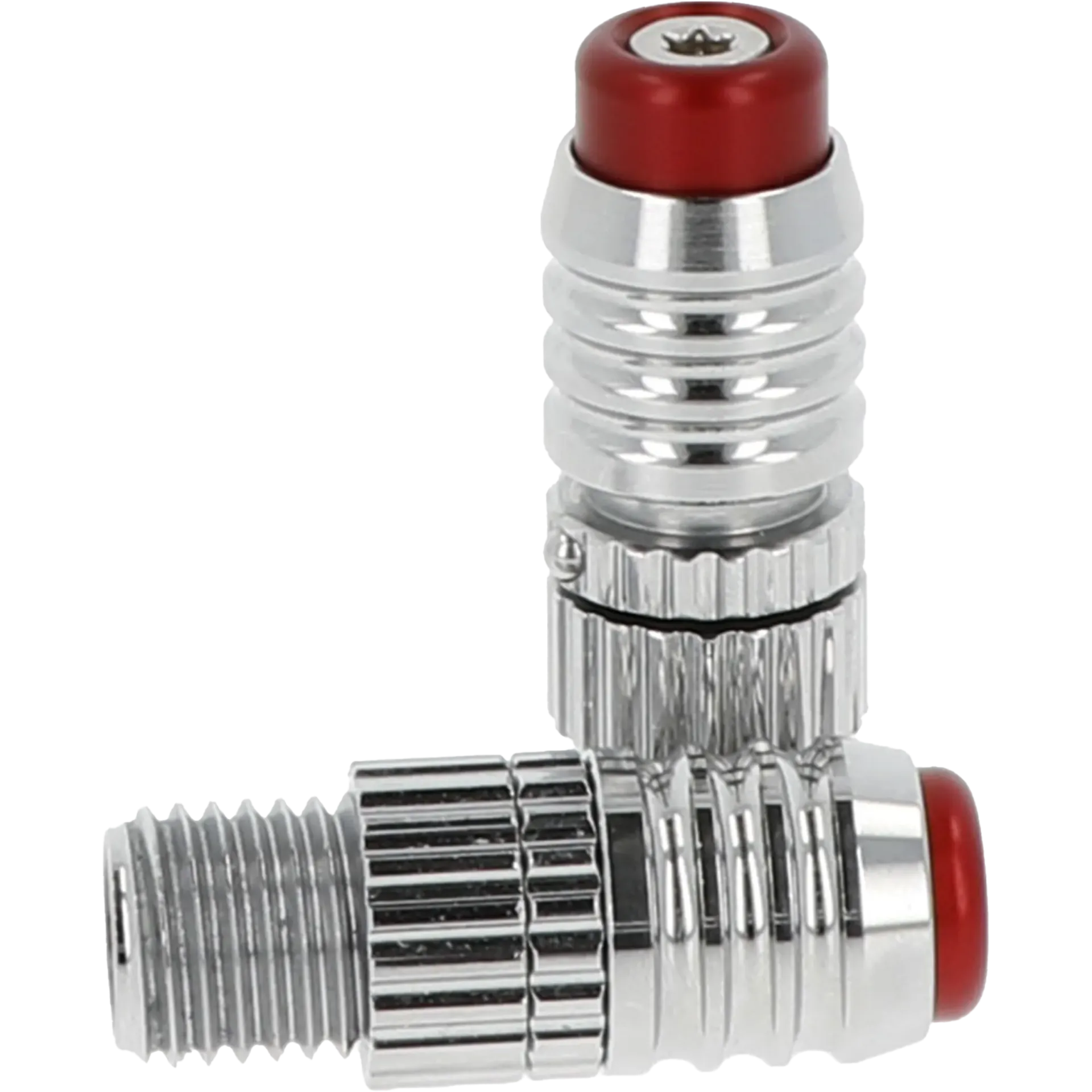

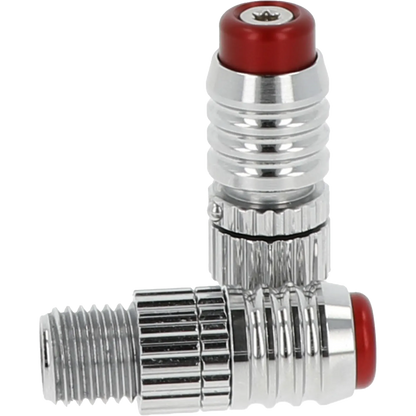

SATA QMR Quick Material Regulator for SATAjet 5000 Series, 1 or 2 Pack

1162817

$174.99
$199.00 $174.99
Sale Sold out
Shipping calculated at checkout.
Quantity
  • Ships in 1–2 business days from Eugene, OR
  • Free ground shipping over $375 · $9.99 under · Express $29.99
  • 30-day returns on unopened, resalable items

Low stock

View full details

Specifications

Part number
1162817
Brand
SATA
Warranty
1-year SATA USA warranty
Made in
Germany
UPC
4027533265382

A retrofit material flow regulator from SATA. Preset a reduced flow once, call it up at the push of a button for the passes that need less material, then pull to go straight back to fully open.

To reduced flow
1 push
Back to full flow
1 pull
Maintenance, per SATA
0
Pieces per pack
1 or 2
Choose your pack

Article numbers

Article Pack Fits
1186213 1 piece SATAjet 5000 series; listed as an X 5500 accessory
1162817 2 pieces SATAjet 5000 series; listed as an X 5500 accessory
1202019 1 piece SATAjet X (jet X); not sold here
When to use it

Jobs SATA names

  • Metallic effect passes. When the paint maker calls for a reduced material rate.
  • Tinted clear. Over basecoat, for added depth.
  • Hard-to-reach parts. On angled or tight areas, to avoid putting on too much paint.
Spray fully open by default. SATA's X 5500 manual says to spray with the material flow control fully open, which keeps fluid tip and needle wear to a minimum. The QMR lets you drop to a reduced setting only for the passes that need it, then pull back to full.
How to use

Operation

  1. Retrofit the QMR to your SATAjet 5000 B or X 5500.
  2. Set the reduced material flow rate you want for your special passes.
  3. Push the button to engage the preset reduced flow.
  4. Pull to release it and return to fully open flow within seconds.
Specifications

Tech specs

Product SATA QMR Quick Material Regulator
Articles 1186213 (1 pc), 1162817 (2 pcs)
For SATAjet 5000 series; SATA lists both as SATAjet X 5500 accessories
Not for SATAjet X; use 1202019
Maintenance Maintenance-free, per SATA
Storage temperature −4 to 140°F (−20 to 60°C)
Pairs well with

Related

Quick answers

FAQ

What's the difference between 1186213 and 1162817?

Pack size only. 1186213 is 1 piece and 1162817 is 2 pieces, both for the SATAjet 5000 series.

Will it fit my SATAjet X 5500?

SATA lists both article numbers as accessories on its X 5500 product pages.

Does it fit the jet X?

No. The jet X version is SATA article 1202019.

How do I go back to full flow?

Pull it. SATA's release function returns the gun to fully open within seconds.

Does it need servicing?

No. SATA describes it as maintenance-free.

Manufacturer documents: SATA QMR announcementSATA 1186213 page
