SKU:1200518
SATA's current premium refinishing platform, combining the labyrinth airflow system, I/Control and O/Speed fan choices, and up to four digital-unit configurations. Build the gun around how you spray—not around the longest feature list.

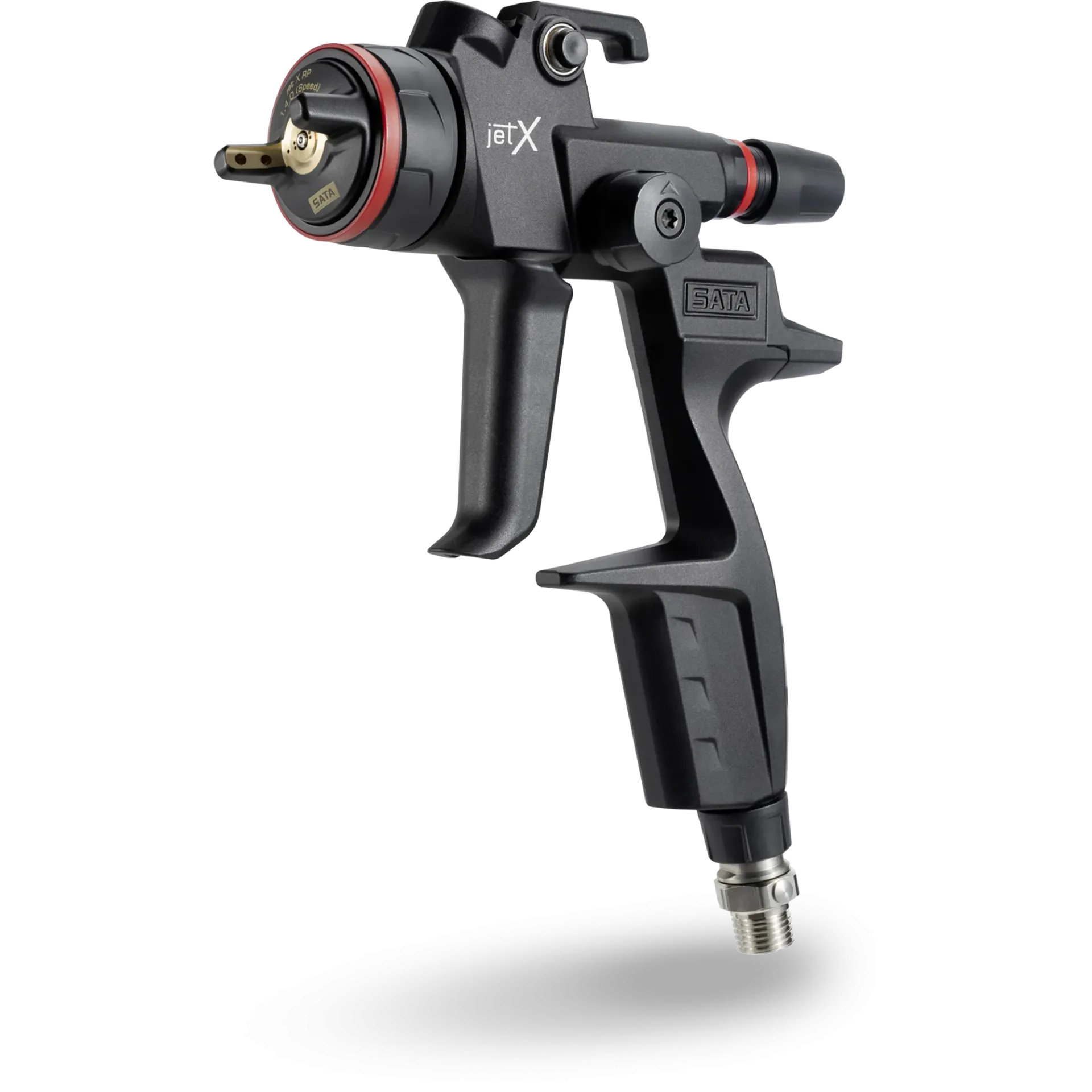

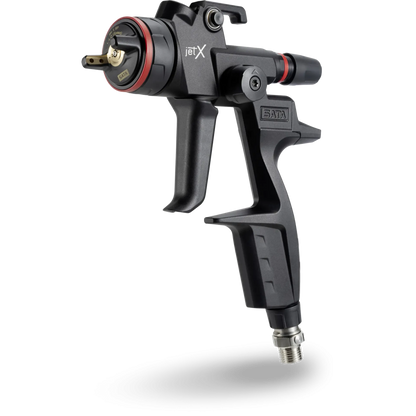

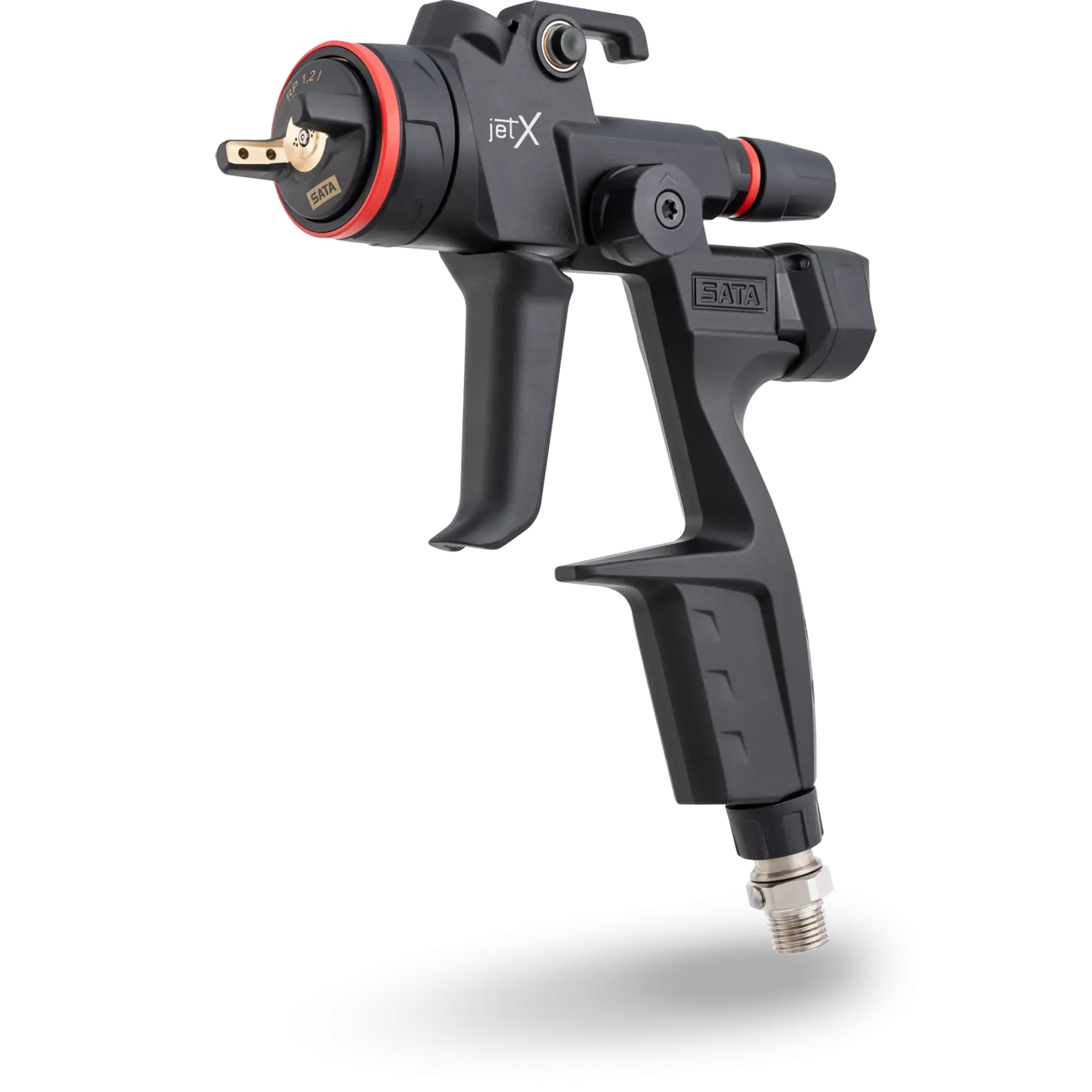

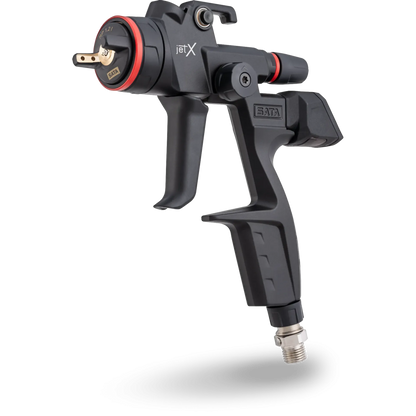

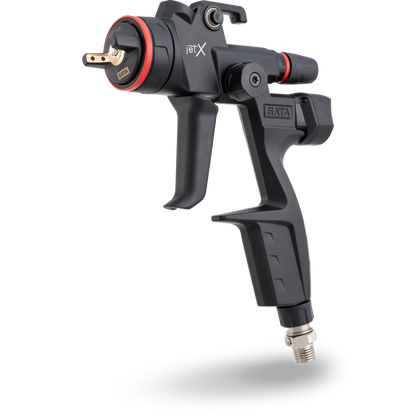

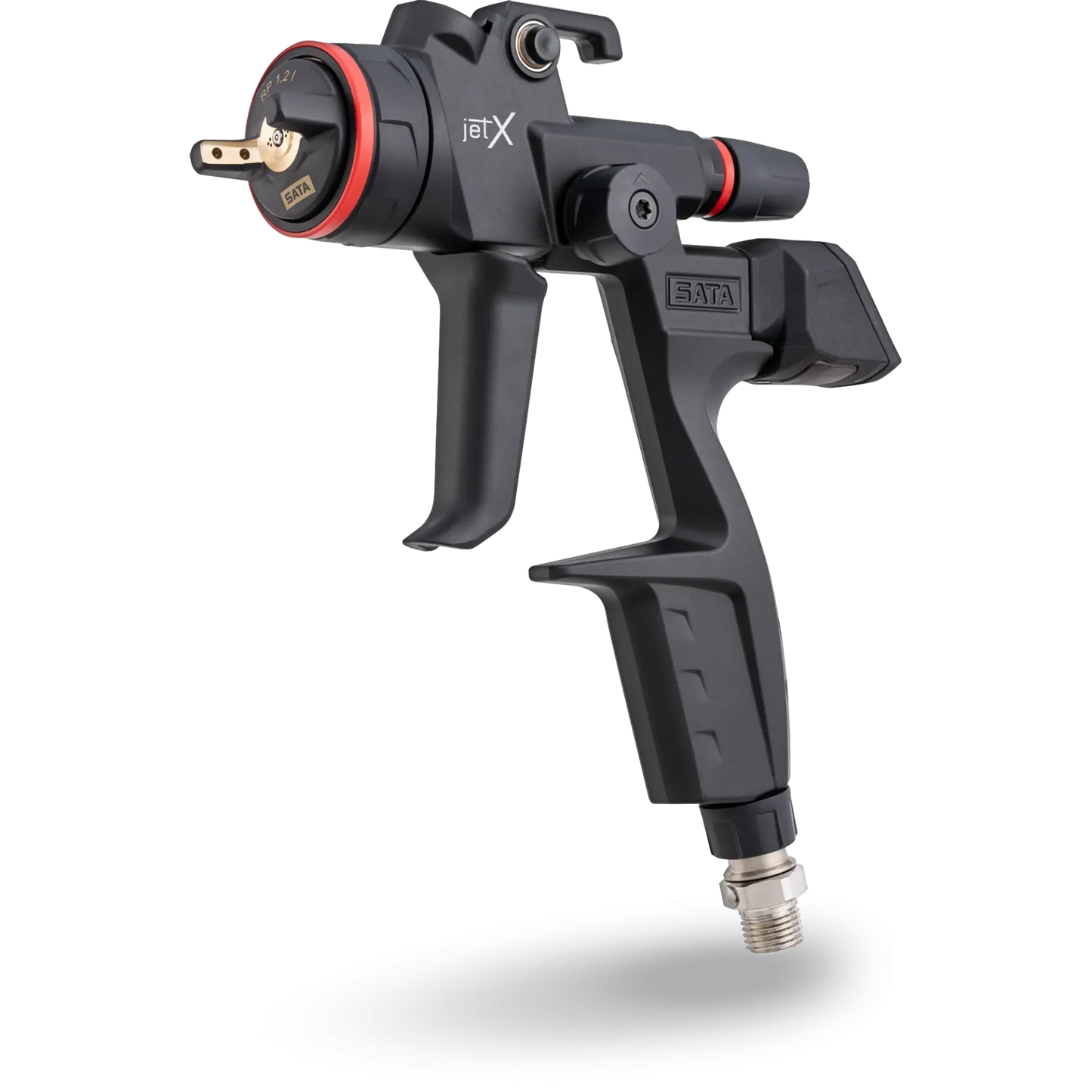

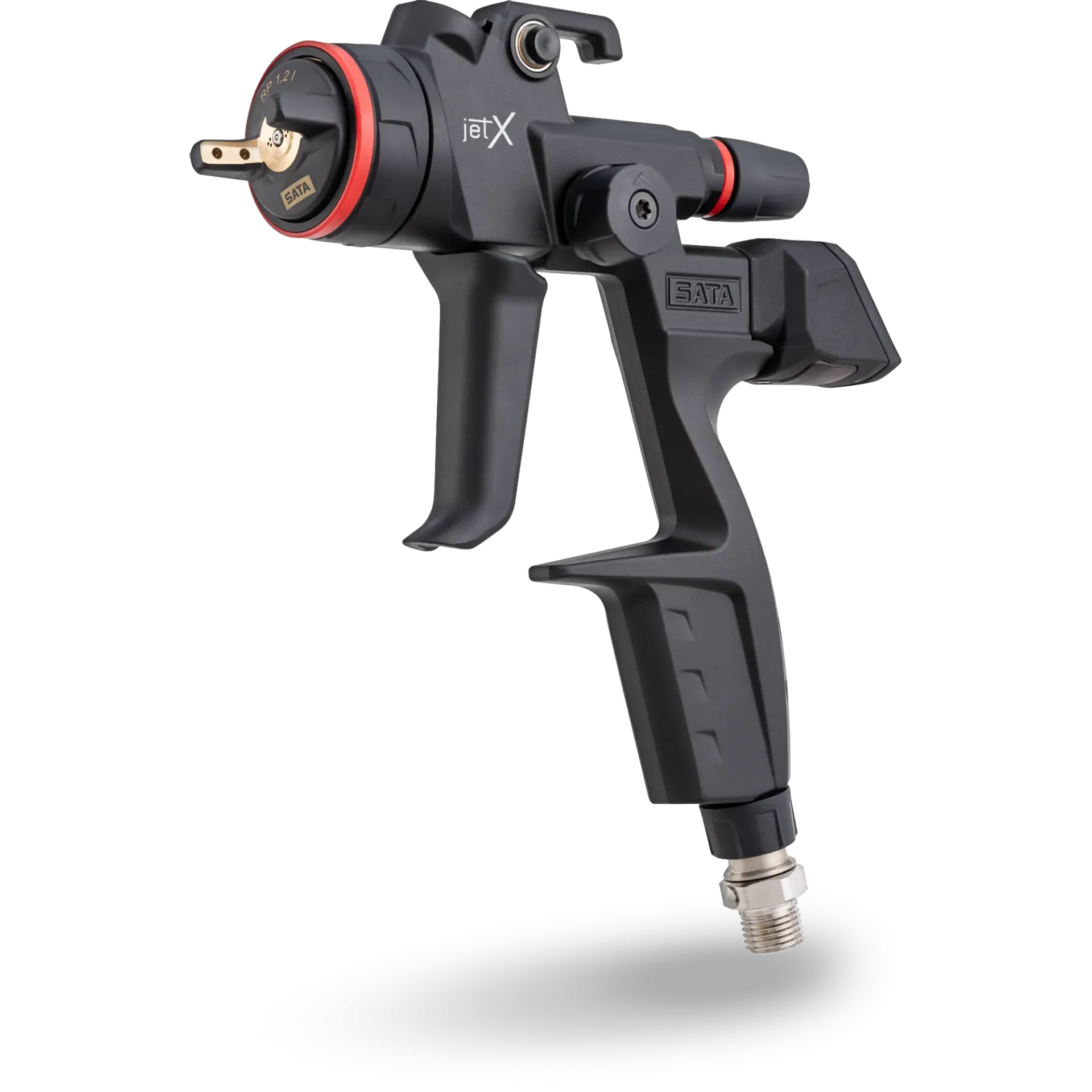

SATAjet X RP Spray Gun is a professional automotive refinishing spray gun for waterborne and solvent-borne basecoats plus 1K and 2K topcoat systems. This page covers the exact RP configuration with 1.3, 1.4, 1.2 mm nozzle sizing and O (Speed), I (Control) fan pattern in Digital Pro, Digital Ready, Basic, Digital form.
Use this table to confirm the exact SATA manufacturer part number before ordering a gun, nozzle set or replacement component.
| SATA part number | Digital Version | Nozzle Size | Spray Fan | UPC |
|---|---|---|---|---|
| 1200518 | Digital Pro | 1.3 | O (Speed) | 4027533275831 |
| 1201962 | Digital Ready | 1.4 | I (Control) | 4027533275763 |
| 1200443 | Digital Ready | 1.2 | O (Speed) | 4027533275909 |
| 1200451 | Basic | 1.3 | I (Control) | 4027533275893 |
| 1200469 | Digital | 1.3 | I (Control) | 4027533275886 |
| 1200477 | Digital Pro | 1.3 | I (Control) | 4027533275879 |
| 1200485 | Digital Ready | 1.3 | I (Control) | 4027533275862 |
| 1200493 | Basic | 1.3 | O (Speed) | 4027533275855 |
| 1200500 | Digital | 1.3 | O (Speed) | 4027533275848 |
| 1200526 | Digital Ready | 1.3 | O (Speed) | 4027533275824 |
| 1200401 | Digital Ready | 1.2 | I (Control) | 4027533275947 |
| 1200378 | Basic | 1.2 | I (Control) | 4027533275978 |
| 1200584 | Digital Ready | 1.4 | O (Speed) | 4027533275787 |
| 1200419 | Basic | 1.2 | O (Speed) | 4027533275930 |
| 1200394 | Digital Pro | 1.2 | I (Control) | 4027533275954 |
SATA's optimized high-pressure technology moves material quickly with VOC-compliant transfer rates and low overspray.
Low-pressure technology is designed for especially high transfer rates, putting more coating on the panel.
| Size | Good starting point for | What changes | Why choose it |
|---|---|---|---|
| 1.1-1.2 | Lower-viscosity material, basecoat or painters wanting less delivery | Lower material throughput | Control-oriented starting point |
| 1.3 | Basecoat, clearcoat and general refinishing | Balanced delivery | Most versatile starting point |
| 1.4 | Clearcoat/topcoat or painters wanting a wetter pass | More material than 1.3 | Faster film build |
| 1.5-1.8 | Higher-viscosity coatings where the gun and coating system allow | Highest delivery in the range | Check the coating TDS carefully |
An elongated pattern with a smaller fade-out zone and drier core.
An oval pattern with a larger fade-out zone and wetter core.
No digital unit. Lowest-complexity entry into jet X.
Prepared for a retrofit adam X or adam X pro unit.
Compact adam X with inlet pressure, bar/psi and core operating information.
adam X pro adds target-pressure alerts, operating data, tilt control and dashboard transfer.
| Platform | Primary job | How you configure it | Choose it when... |
|---|---|---|---|
|
This product SATAjet X |
Current premium basecoat/clearcoat platform | RP or HVLP; I or O fan; four digital configurations | Painters who want SATA's newest spray and digital ecosystem |
| SATAjet X 5500 | Proven premium basecoat/clearcoat platform | RP or HVLP; I or O fan; digital or non-digital | Painters who want a broad, established premium setup |
| SATAjet 1500 B SoLV | Solvent basecoat, sealer and clearcoat | RP/HVLP and 1.3/1.4 choices | A simpler, value-oriented solvent refinishing gun |
| SATAjet 100 B | Primer, filler, UV primer and polyester spray filler | Large primer nozzles plus dedicated UV/P configurations | Preparation work—not a substitute for a finish gun |
Professional automotive basecoat and topcoat work using the coating-compatible setup specified by the paint manufacturer's TDS.
RP is the technology used by the configurations on this page. Review the RP/HVLP comparison above before choosing another platform.
The exact live configurations use 1.3, 1.4, 1.2 mm nozzle sizes. Confirm the SATA part number in the configuration table before ordering.
Digital pressure measurement does not change the core atomization by itself. It makes inlet pressure easier to see and reproduce; the nozzle technology, size, fan, coating setup and painter technique still determine application.
Do not assume they interchange. Order the nozzle set for the exact SATA model, technology, size and fan pattern, and verify the manufacturer part number before purchase.
Use the air-consumption figure above as the minimum delivered-air requirement at pressure, then add headroom for pressure drop, duty cycle, filtration, hose and simultaneous shop demand.
SATA positions jet X and X 5500 configurations for waterborne and solvent-borne refinish systems, but the coating manufacturer's current TDS remains the final setup authority.
